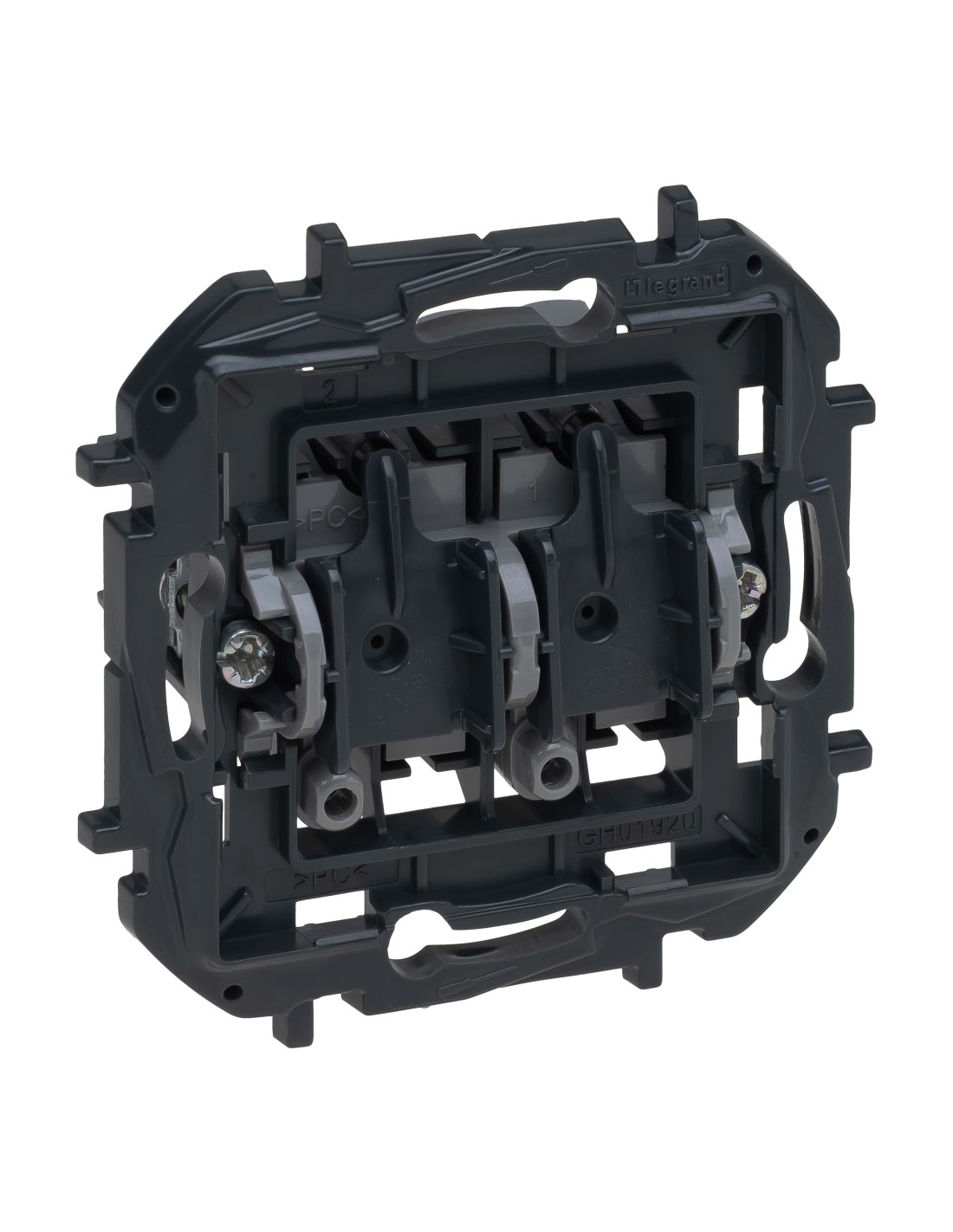

Niloé Step 10AX 250V Recessed Double Switch
Niloé Step 10AX 250V Recessed Double Switch

Niloé Step 10AX 250V Recessed Double Switch

Available In stock 238 Items Reference LEGRAND 864008B
€5.43
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP20

Niloé Step 10 AX and 250 V~ two-way switch for lighting control from one or two points. Modular system of 4 modules with recessed mounting, hook and screw fastening, and IP20 protection degree. Includes optional interchangeable LED and halogen-free thermoplastic housing.

Description

The Niloé Step double switch is a two-way switch designed to control lighting from one or two different points. Its swing operation allows an intuitive and precise operation in residential or commercial electrical installations.

Technical characteristics

  • Nominal voltage: 250 V
  • Assigned current: 10 A
  • Switching intensity: 10 AX
  • Degree of protection: IP20
  • Impact resistance: IK04
  • Material: Halogen-free thermoplastic
  • Dimensions: 75.8 x 75.8 x 40.4 mm
  • Assembly: Fitted with hook and screw
  • Optional interchangeable LED pilot

This mechanism is completed with a two element key and a fixing plate. The minimum depth of the installation box is 40 mm, ensuring a clean integration into the wall.

Product Details

Dimensiones

Measures 75.8 x 75.8 x 40.4 mm
Long 75.8 mm
Depth 40.4 mm
Weight (kg) 0.1 kg

Eléctrico

Rated voltage 250
Rated current (A) 10

Protección

Protection IP20

Otras

EAN 3414972868723
Manufacturer LEGRAND
Intensity 10
Halogen-free Yes
# Elements 2 elementos
Reference LEGRAND 864008B
Series Legrand Niloé Step
Material Termoplástico
