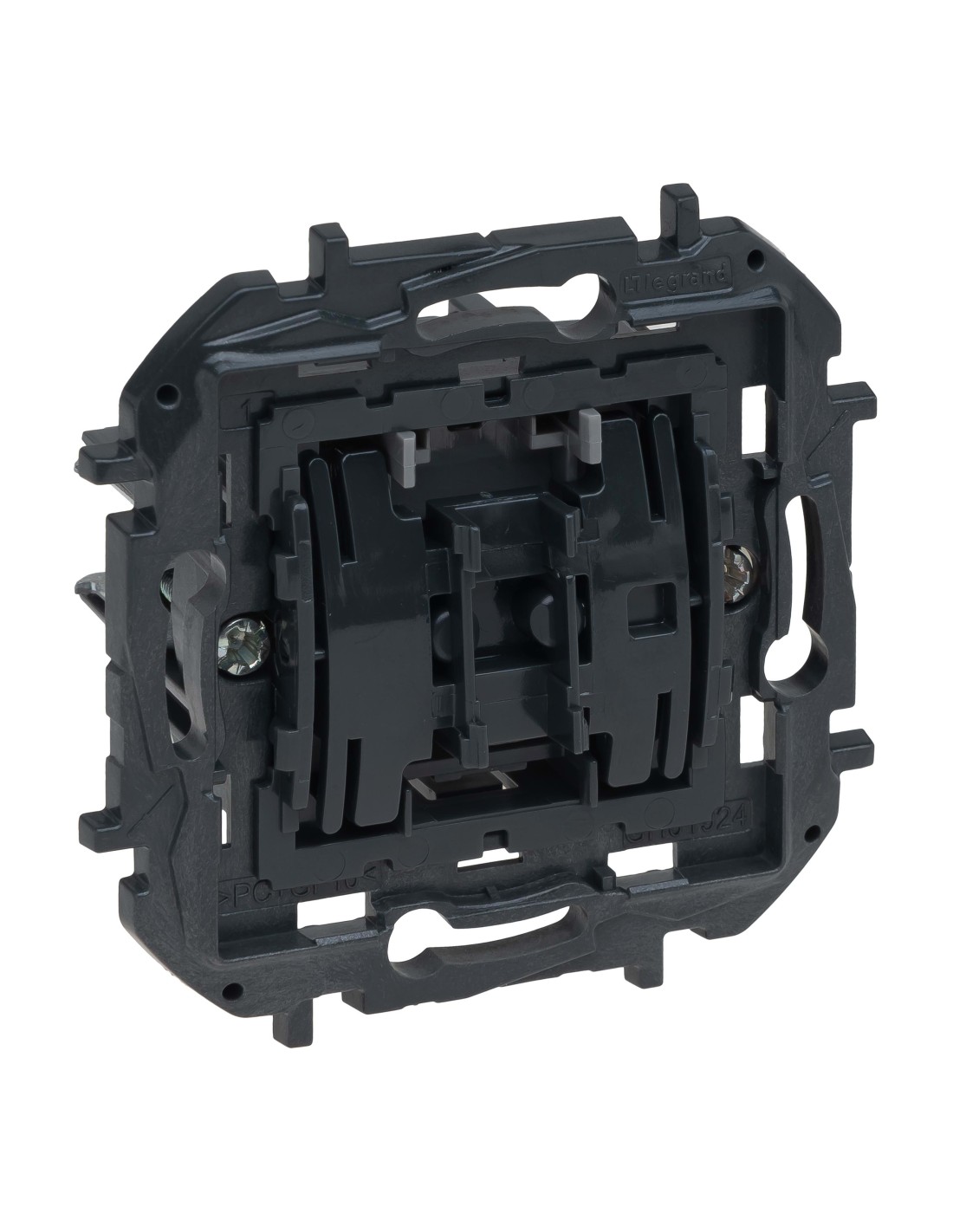

Niloé Step Intermediate Switch 10AX 250V Screw Terminals

The Niloé Step intermediate switch is designed to integrate a third control point into two-way switching electrical installations. This mechanism, which works by balncín, is delivered as a basic element and requires the incorporation of a plate and a balncín for its complete operation. Its recessed design allows a clean integration on plaster surfaces, offering a functional solution for lighting control from multiple locations.

Technical characteristics

• Nominal voltage: 250 V
• Assigned current: 10 A
• Switching intensity for fluorescent lamps: 10 AX
• Connection type: Screw terminals
• Degree of protection: IP20
• Impact resistance: IK04
• Material: Halogen-free thermoplastic
• Dimensions: 75.8 mm wide, 75.8 mm high and 39.8 mm deep
• Construction depth: 30.9 mm
• Assembly: Fitted with hook and screw fastening

This device allows for greater control flexibility in existing lighting circuits. halogen-free thermoplastic construction brings safety and durability to the mechanism. The recessed mounting ensures an integrated aesthetic on the wall.
