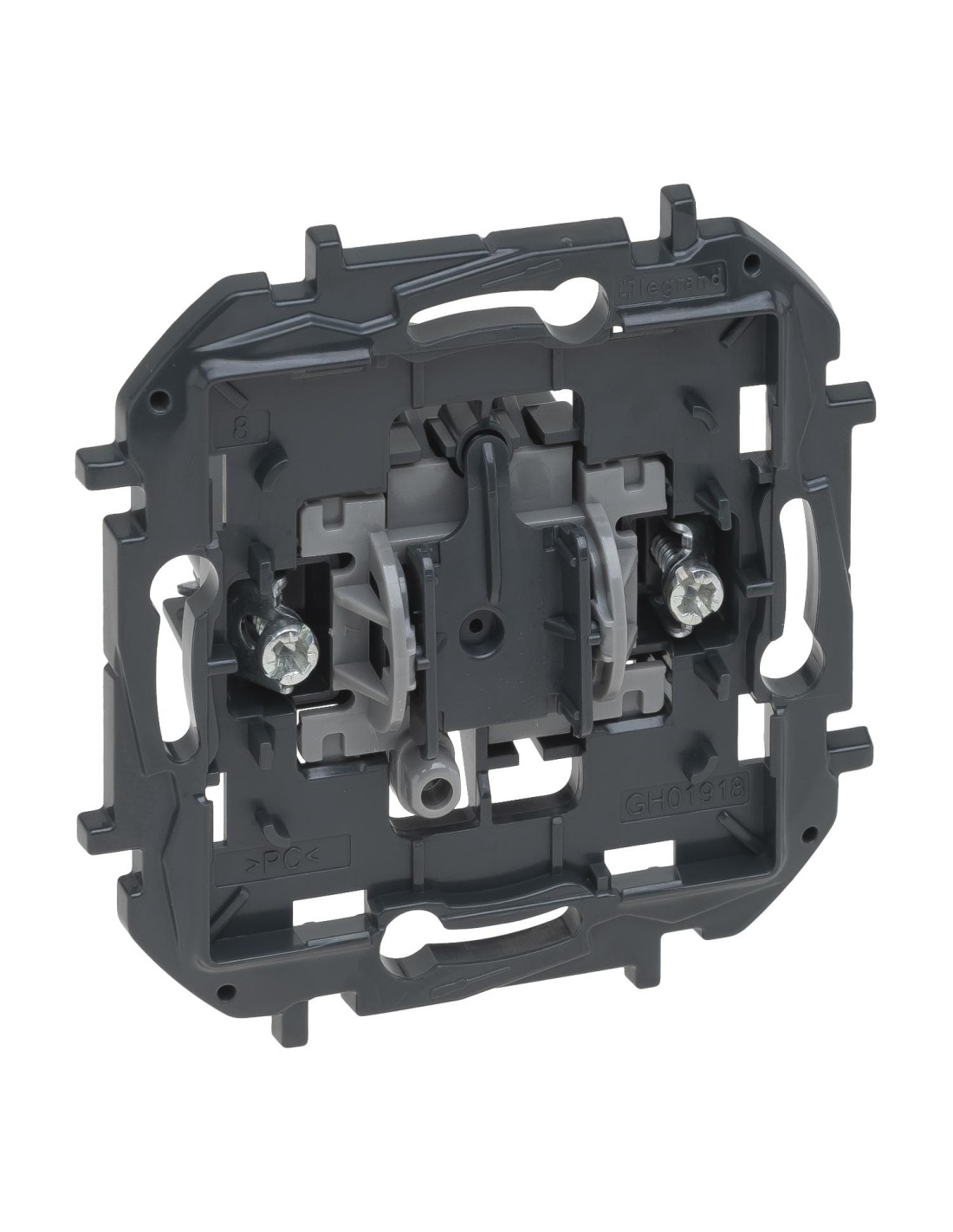

Niloé Step 10AX 250V Recessed Double Switch

The Niloé Step switch is a two-way switch designed to control lighting on and off from one or two different points. This two-module mechanism operates by swing and requires the incorporation of a plate and a swing for its complete operation.

Technical characteristics

• Wiring system: Two-way switch
• Method of operation: Balncín/button
• Number of modules: 2
• Method of assembly: Embedded (spray)
• Type of fixation: Hook and screw
• Material: Thermoplastic halogen-free plastic
• Degree of protection: IP20
• Impact force: IK04
• Nominal voltage: 250 V
• Assigned current: 10 A
• Intensity for fluorescent lamps: 10 AX
• Dimensions: 75.8 mm wide, 75.8 mm high and 34.1 mm deep
• Construction depth: 20.3 mm
• Minimum box depth: 40 mm
• Pilot: Optional with interchangeable LED

This device offers a reliable solution for light management in residential or commercial facilities. Its halogen-free thermoplastic construction and IK04 impact resistance guarantee durability and safety in daily use. The recessed mounting with hook and screw fastening ensures a stable and discreet installation on the wall.
