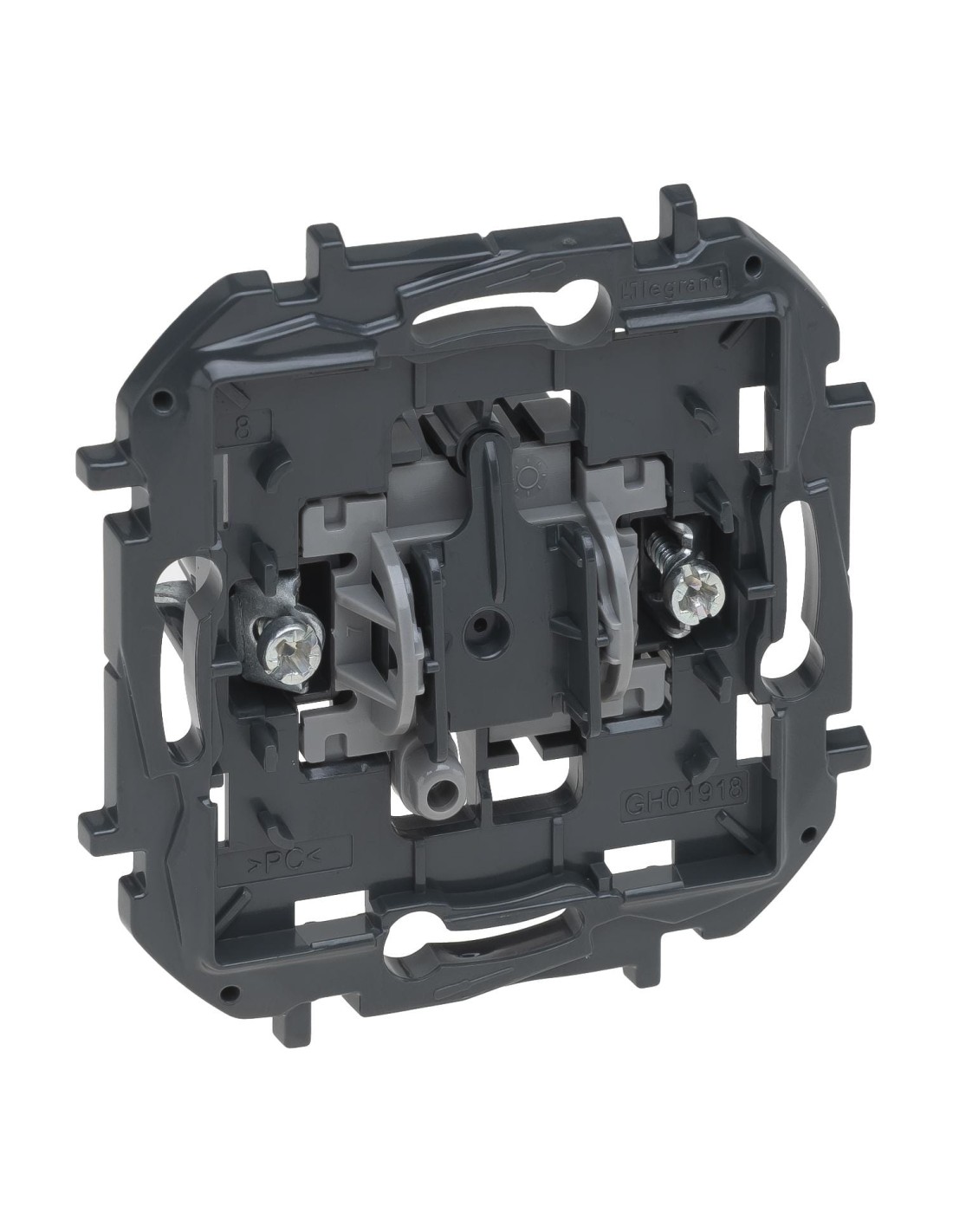

Niloé Step Single-Pole Switch 10AX 250V Recessed

The Niloé Step unidirectional switch is a basic element designed for the control of light on and off. It works by swing and requires the addition of a plate for full installation.

Technical characteristics

• Wiring system: 1 pole disconnect switch
• Method of operation: Balncín/button
• Number of oscillators: 1
• Method of assembly: Embedded cast
• Type of fixation: Mounting with hook
• Material: Thermoplastic halogen-free plastic
• With pilot: Optional (changeable LED)
• Degree of protection: IP20
• Impact force: IK04
• Nominal voltage: 250 V
• Assigned current: 10 A
• Switching intensity for fluorescent lamps: 10 AX
• Dimensions: 75.8 mm (width) x 75.8 mm (high) x 34.1 mm (deepness)
• Construction depth: 20.3 mm
• Minimum installation box depth: 30 mm

This device offers a reliable solution for recessed electrical installations, allowing lighting management with a compact and safe design. Its construction in halogen-free thermoplastic contributes to the safety of the environment.
