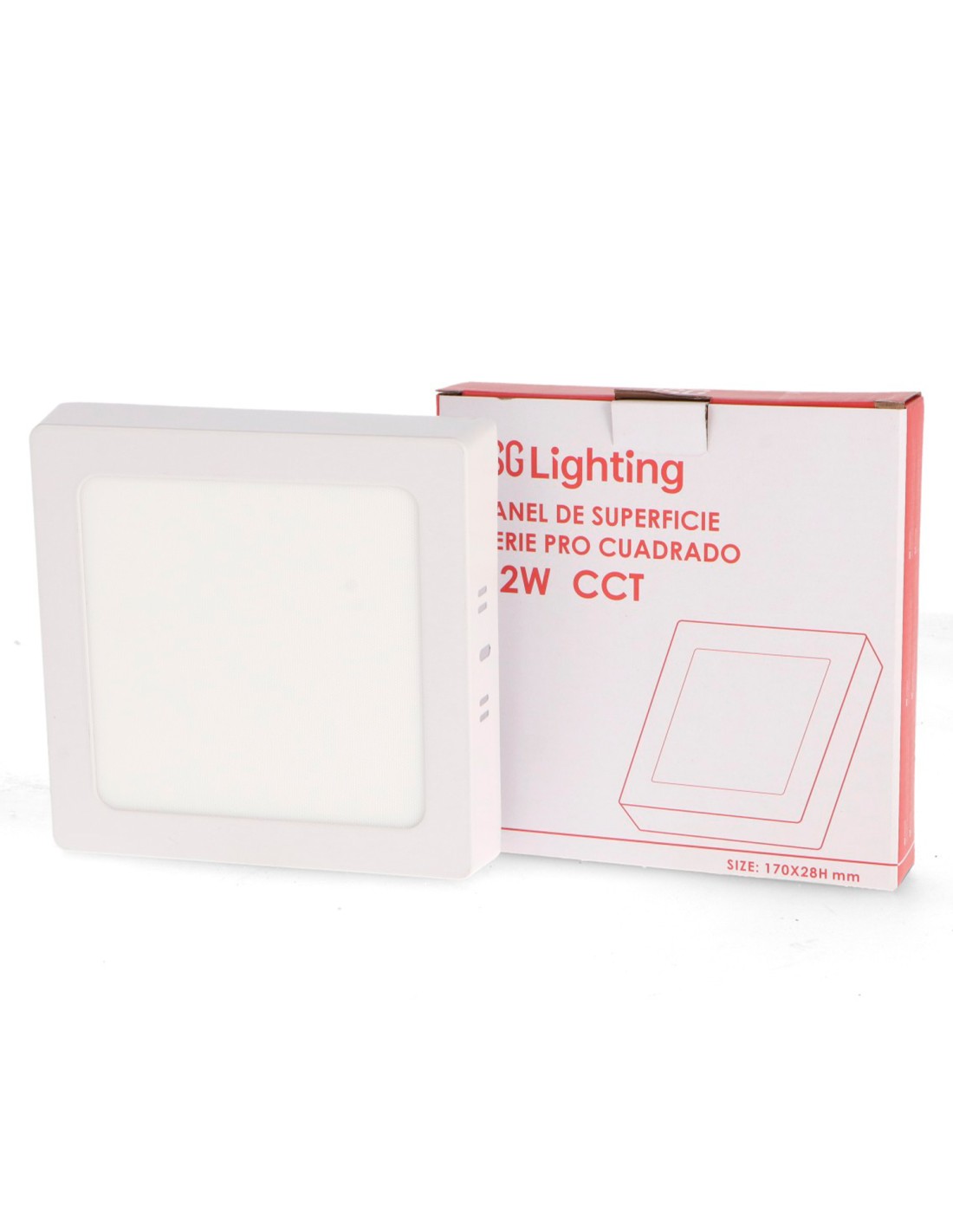

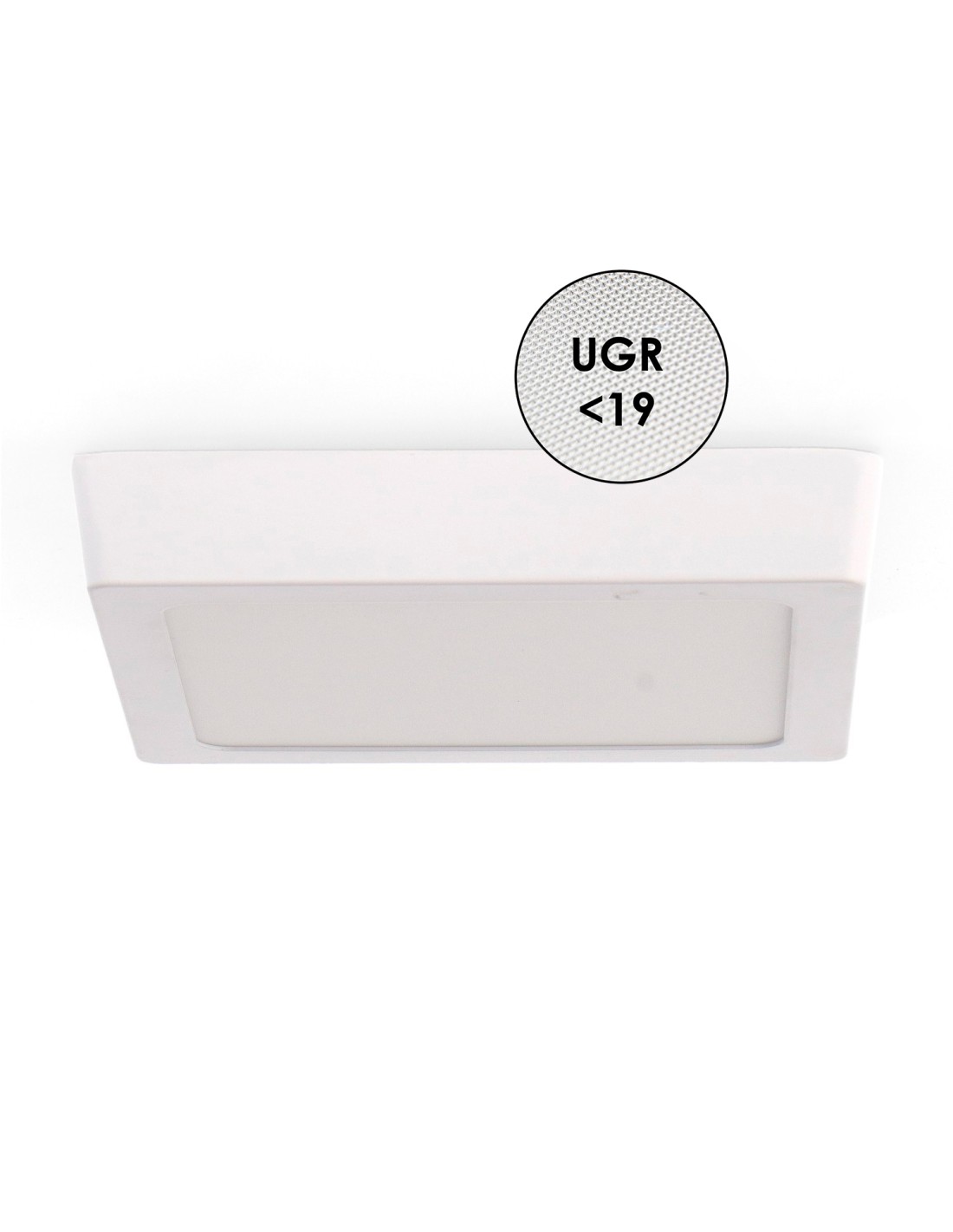

Surface Panel Pro Series Square 12W CCT

iSG Lighting's 12W CCT Pro Square Surface Panel is a light device designed to be integrated into flat ceilings, offering an efficient solution with Ledvance source and Lifud driver.

Technical characteristics

• Watts: 12 w
• Lightness: 1200 lm
• Efficiency Lm: 100
• Working temperature: -20°C ~ + 45°C
• Beam angle: 120°
• Useful Life: 30000 hours
• Protection: IP20, Ik 5
• Class Electrical insulation: II
• Protection against overvoltage: 4 Kv
• Power supply: 170-265v ac

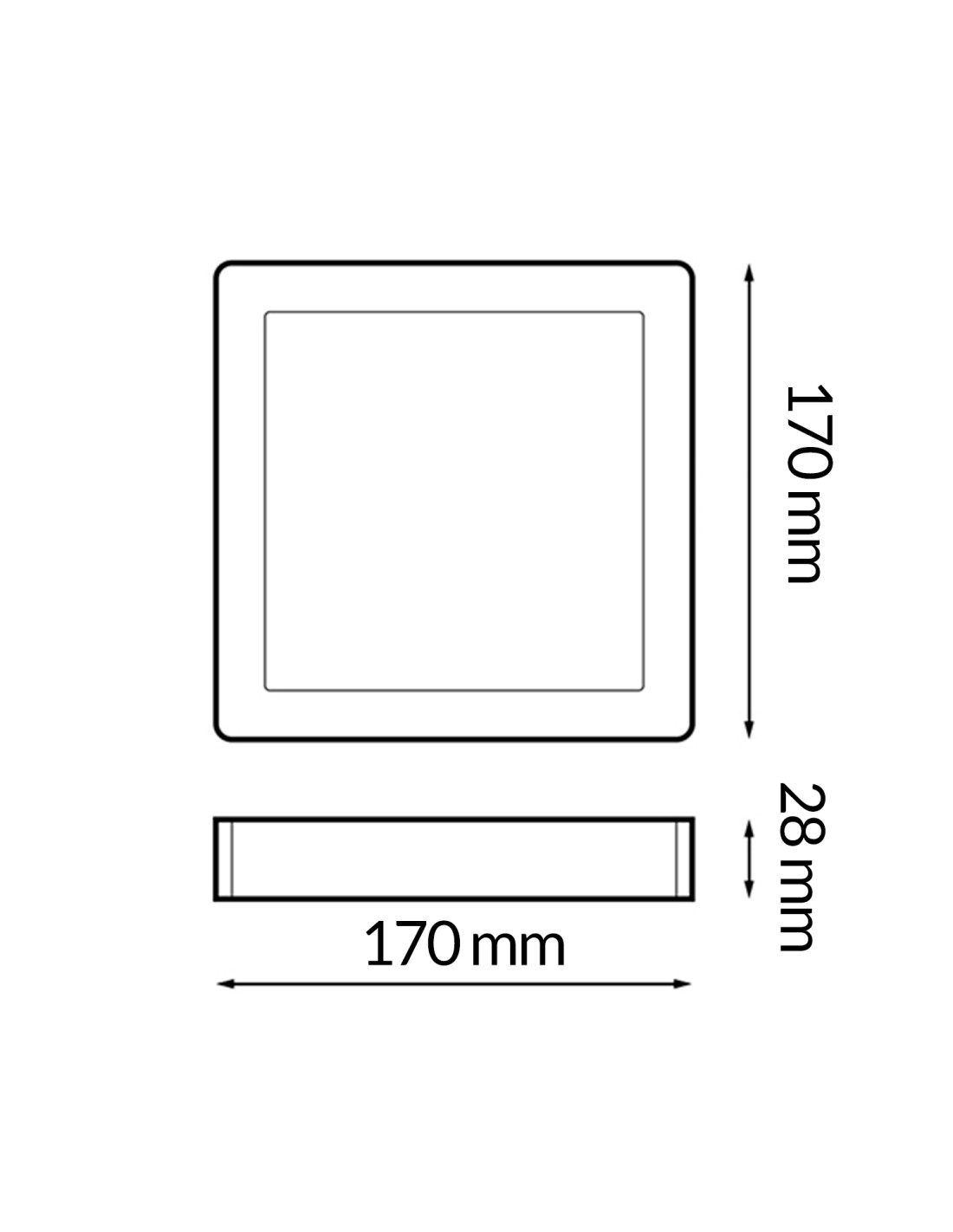

• Dimension: 170X170X28H mm
• Material: Aluminium

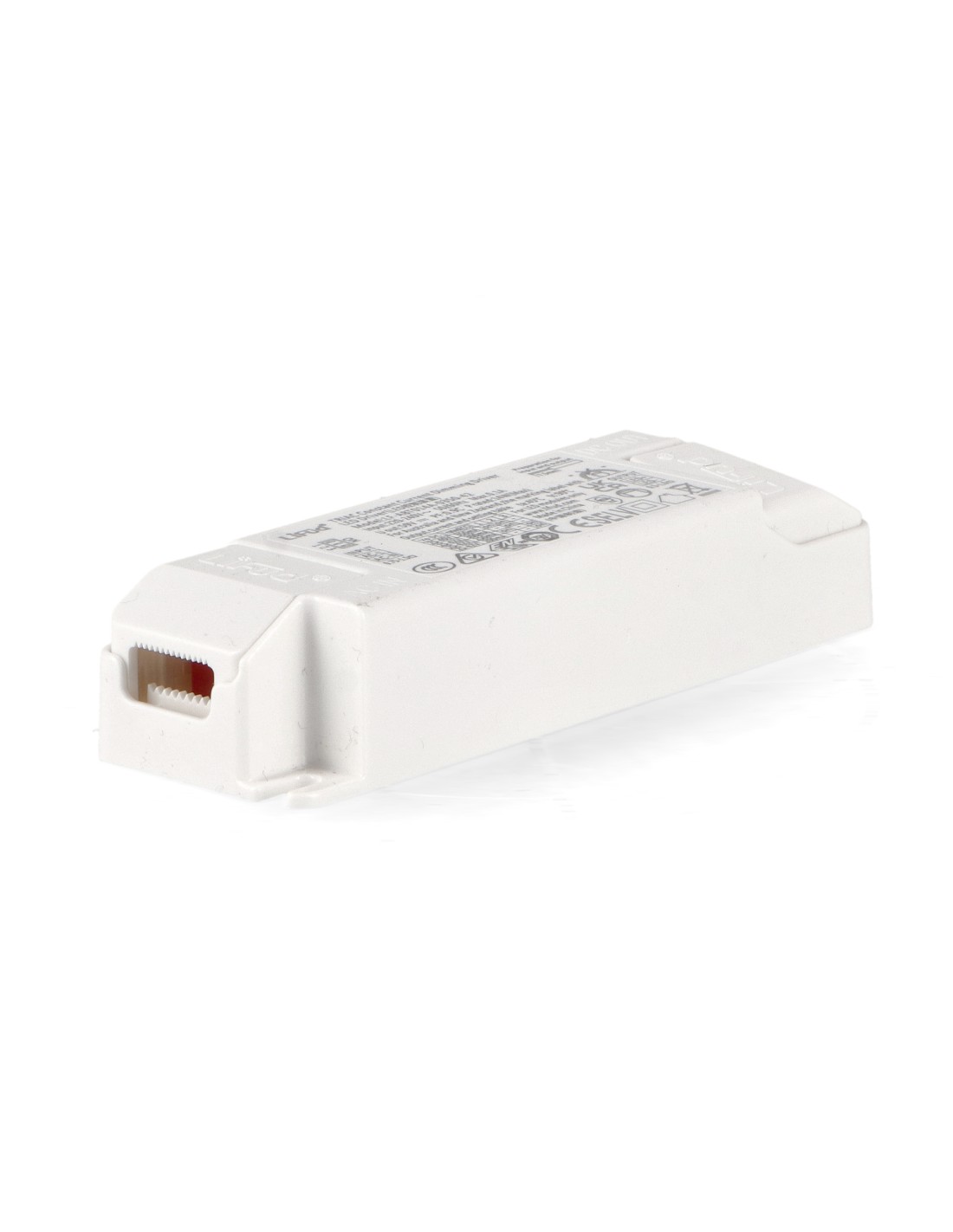

• Driver: Lifud
• CRI: 80

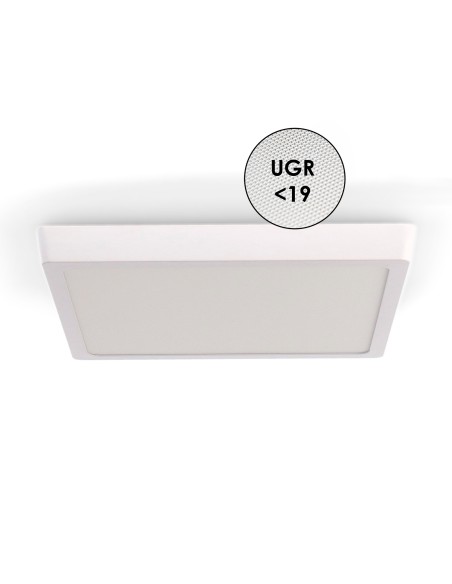

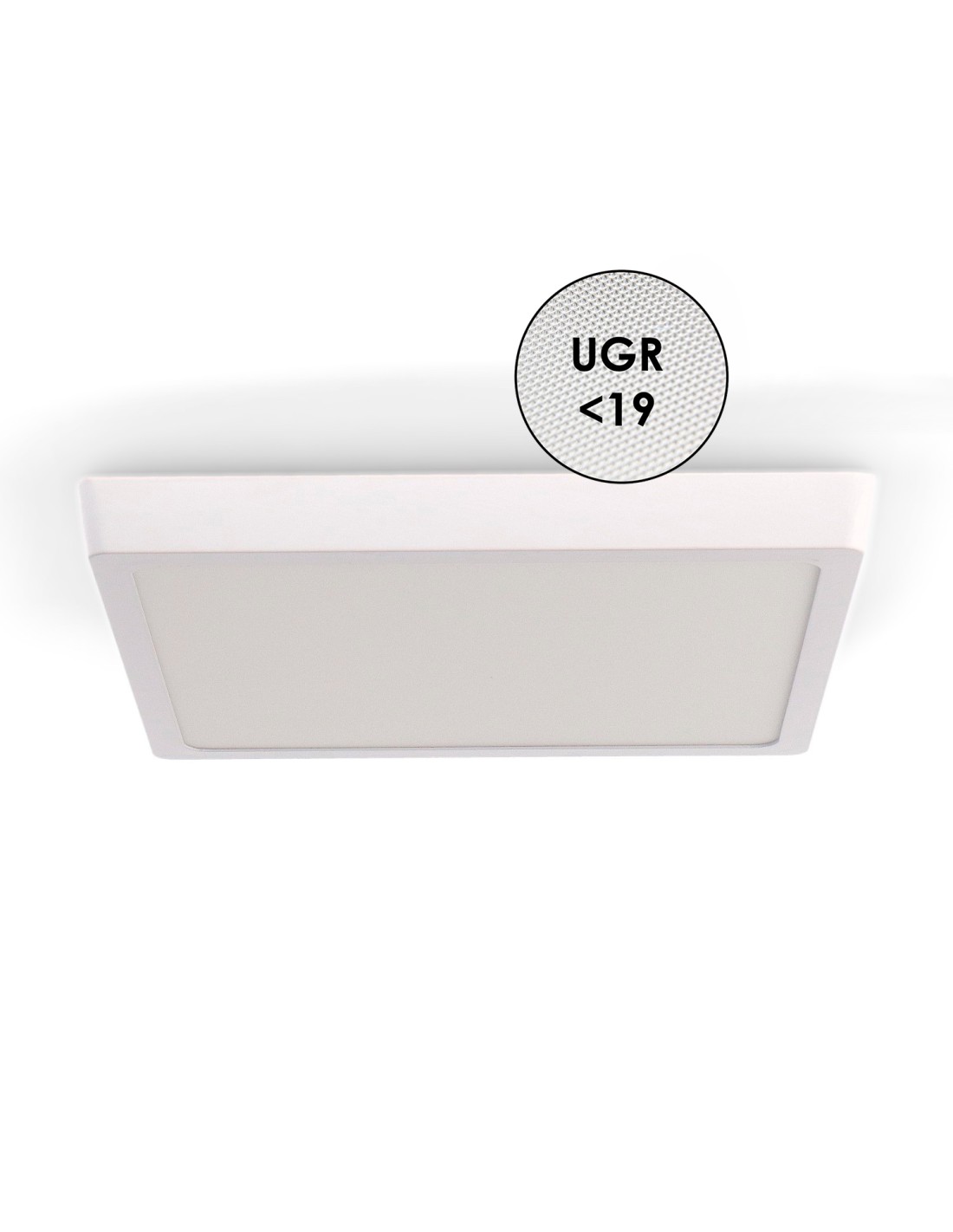

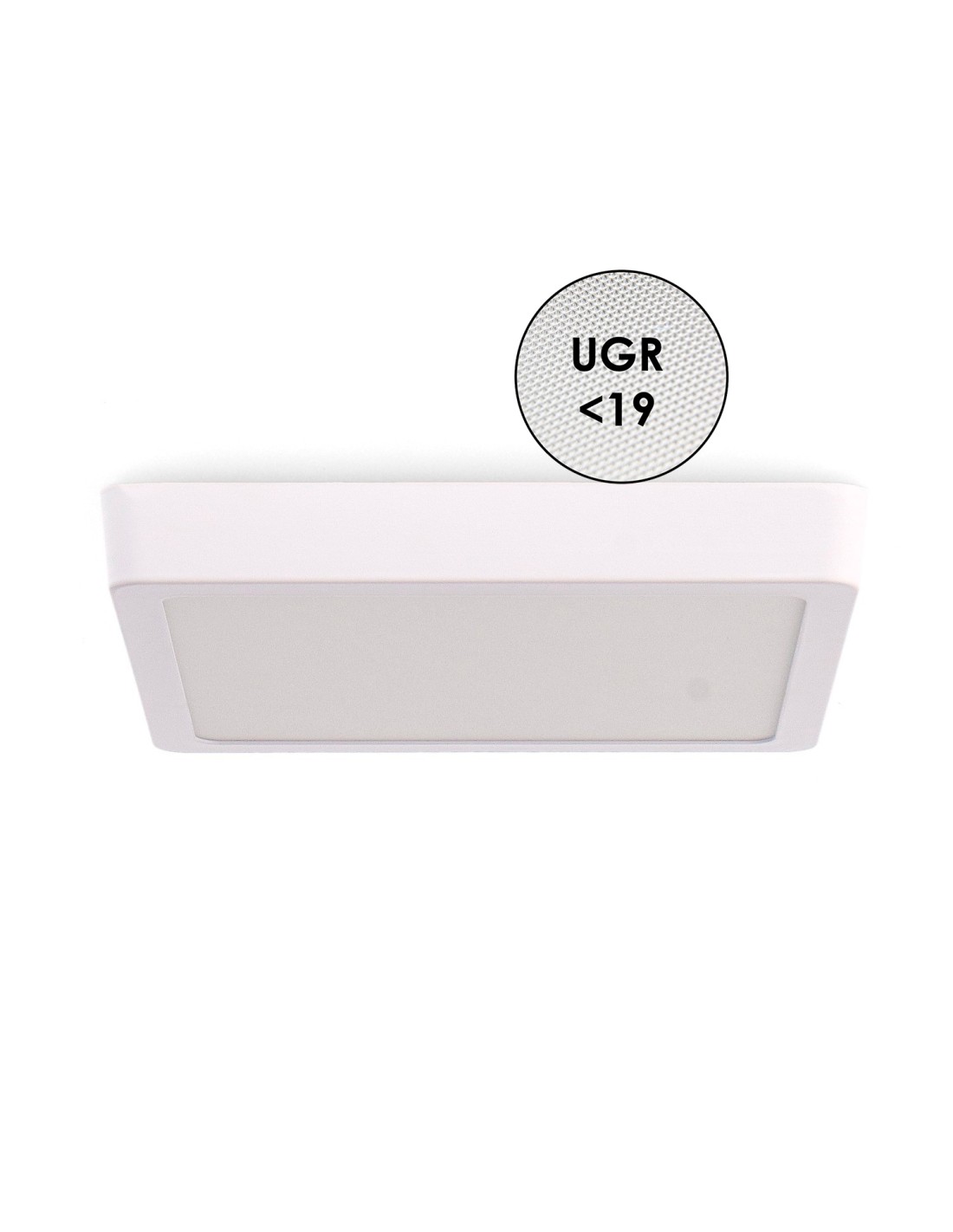

• UGR: <19
• Power Factor: 0.5
• Regulatory: Optional
• Guarantee: 5 years
• Color Temperature: 3CCT

With a UGR reflection index below 19 and a long service life, this panel ensures superior optical performance in standard indoor environments where surface installation is required.
