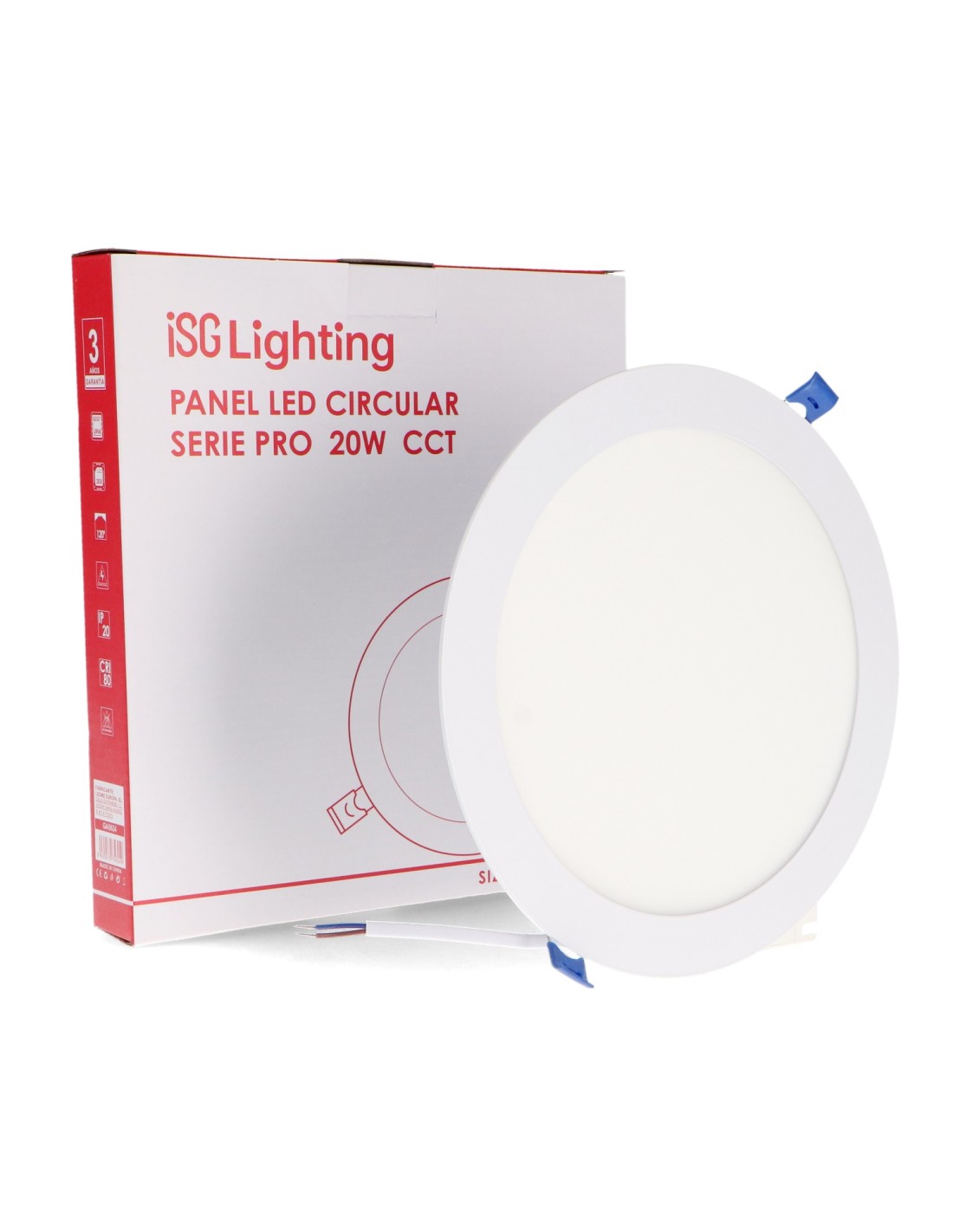

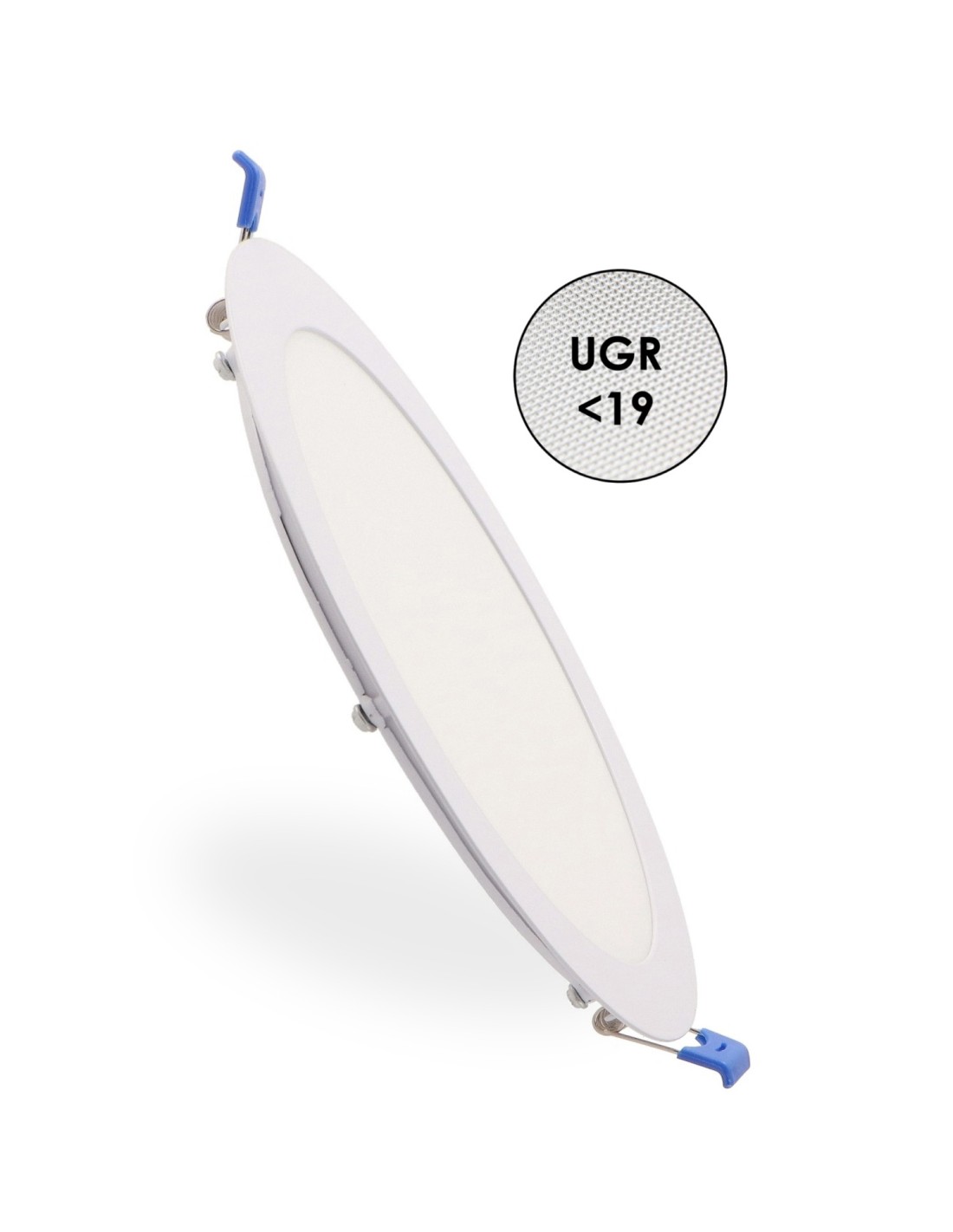

ISG Lighting Pro Series Circular LED Panel 20W CCT

The iSG Lighting Pro Series Circular Led Panel is an recessable lighting device designed to provide an efficient and durable light solution in indoor spaces.

Technical characteristics

• Watts: 20 w
• Light Source: Smd 2835
• Luminosity: 2000 lm
• Efficiency Lm: 100 lm/w
• Working temperature: -20°C ~ + 45°C
• Emission angle: 120°
• Useful Life: 30000 hours
• Protection: IP20
• Class Electrical insulation: II
• Power supply: 170-265v ac

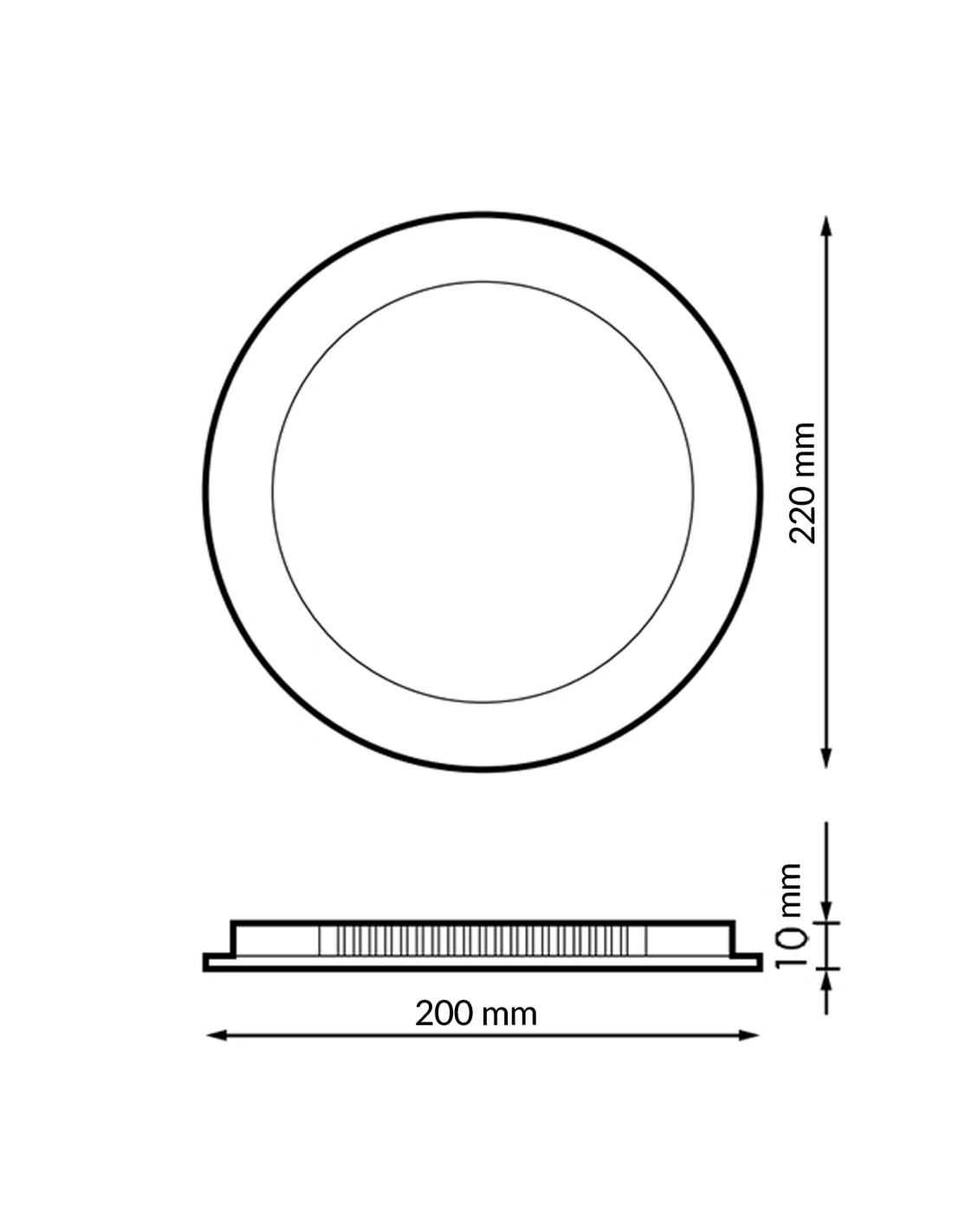

• Dimension: 220X10H mm
• Cut dimension: 205X205 mm
• Material: Aluminium

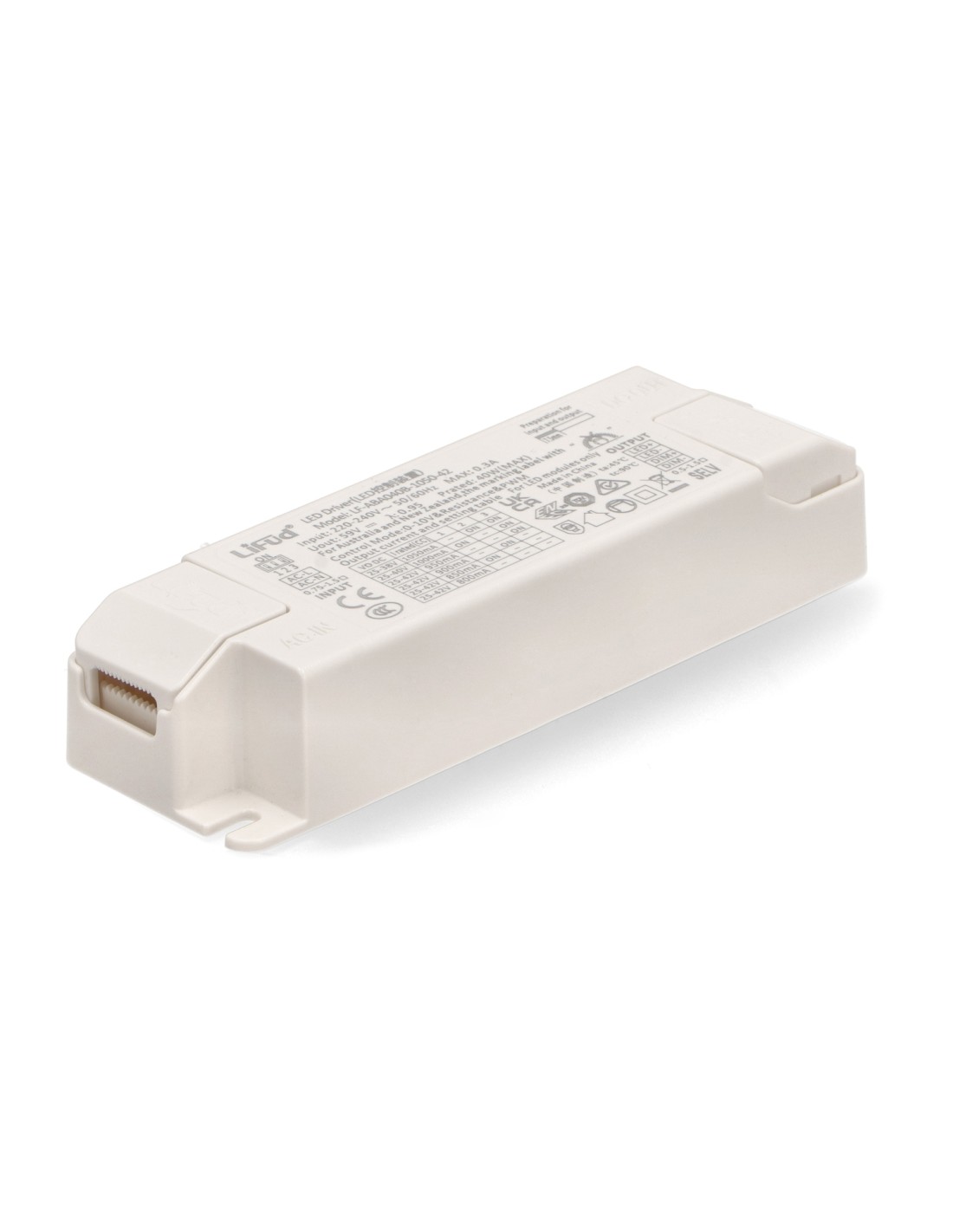

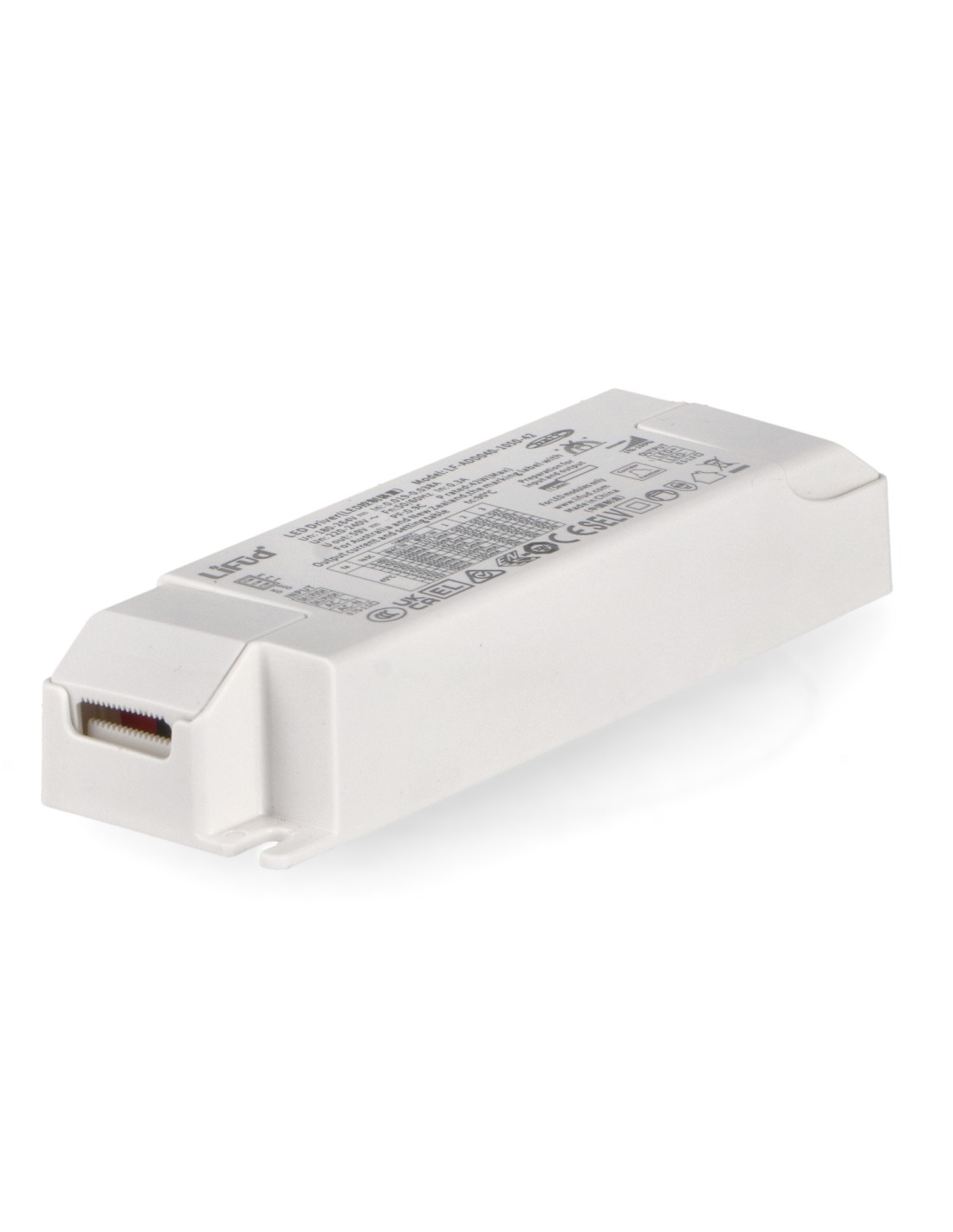

• Driver: Lifud
• CRI: 80

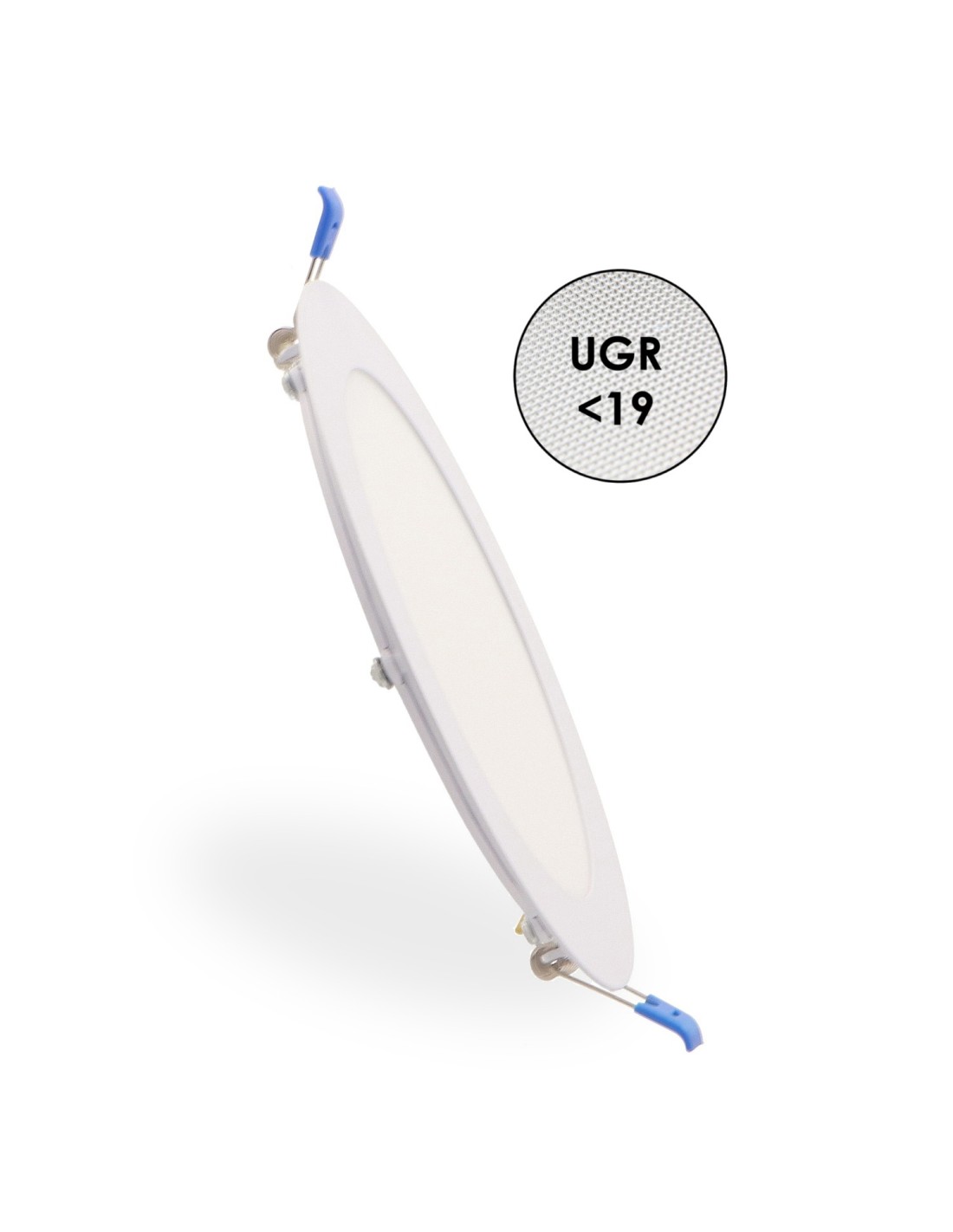

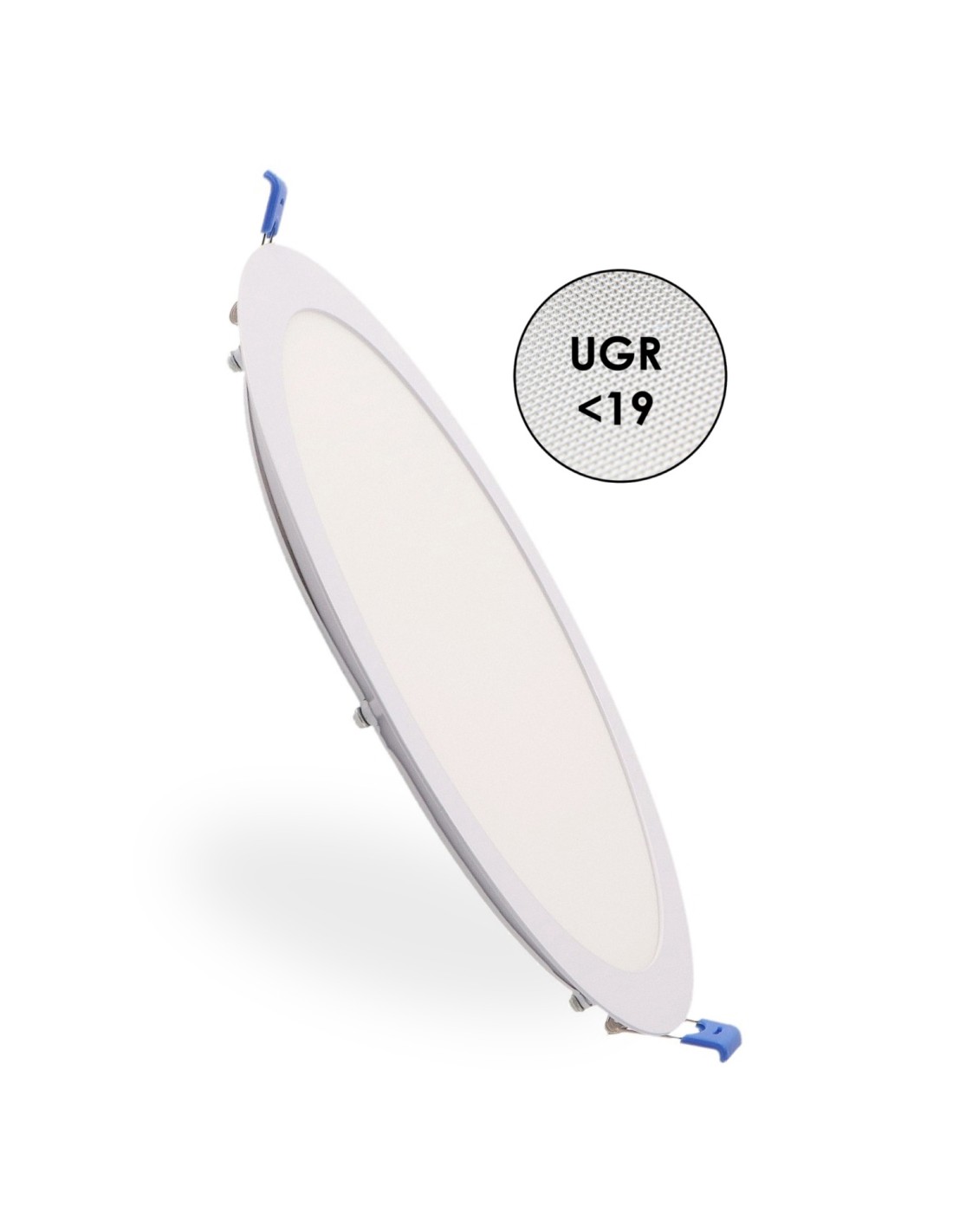

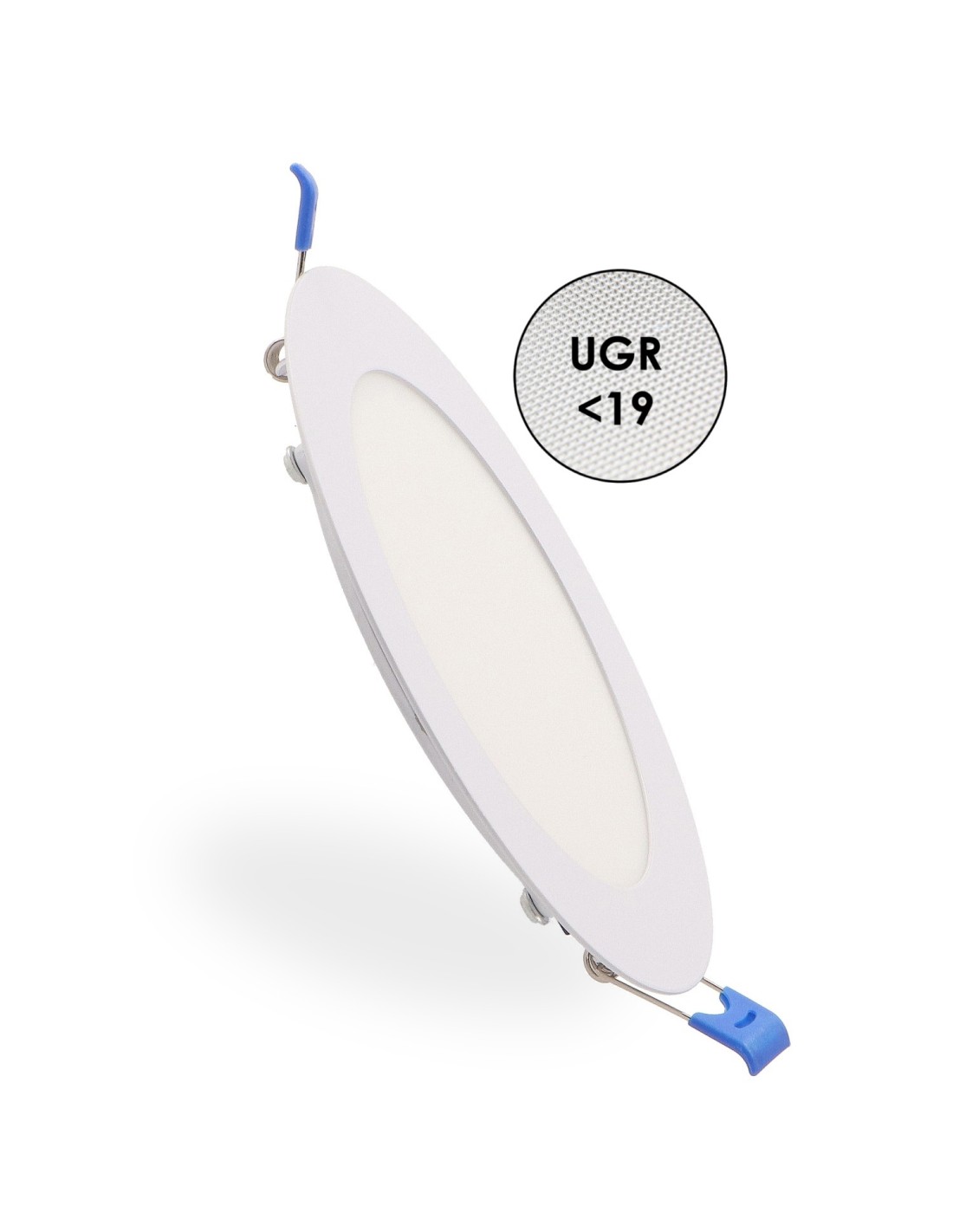

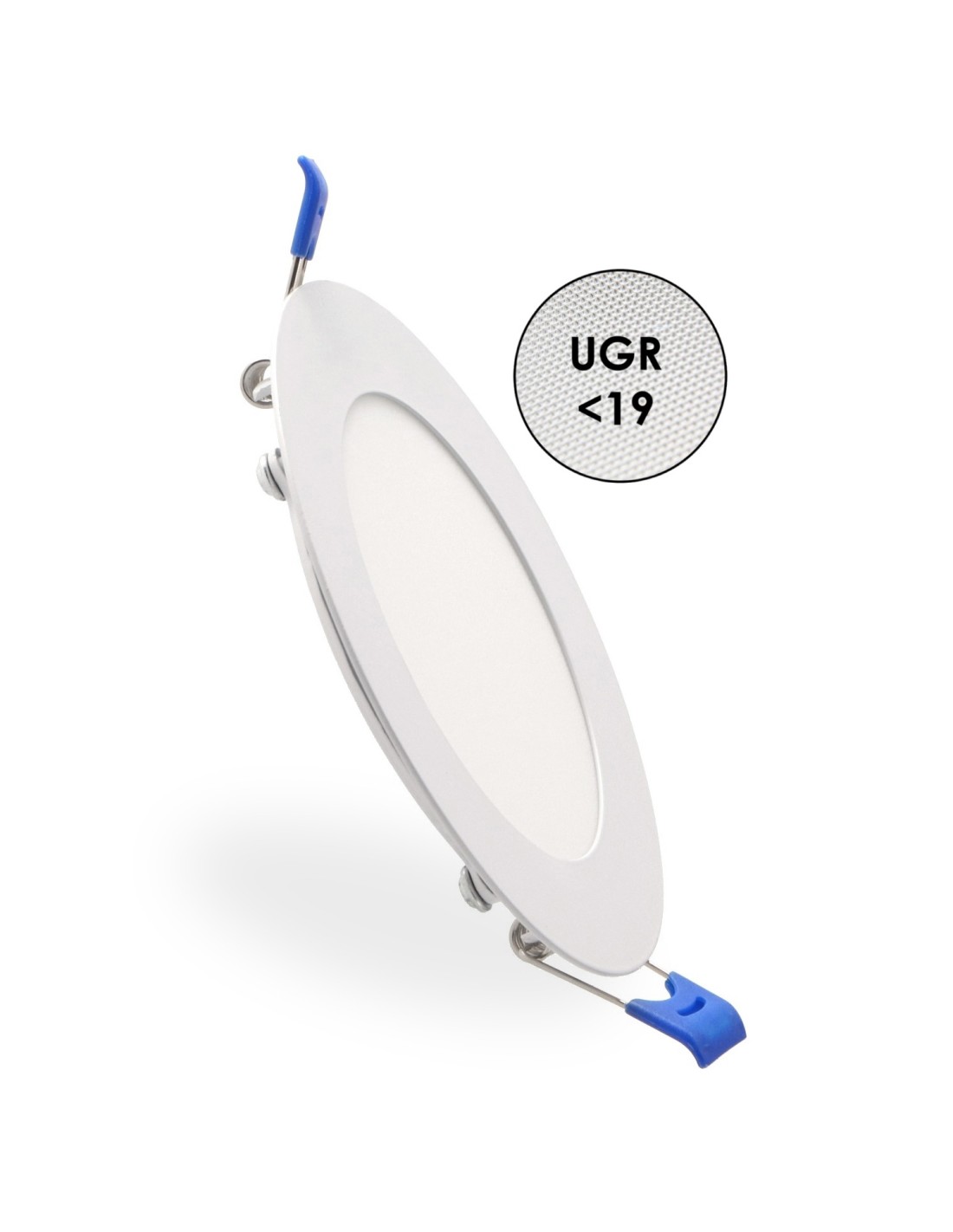

• UGR: <19
• Guarantee: 5 years
• Color Temperature: 3CCT

With high light efficiency and a chromatic reproduction index of 80, this panel guarantees clear and uniform lighting. Its low UGR index (<19) minimizes glare, while construction in aluminium and polycarbonate ensures thermal stability within the specified operating range.

The recessable installation requires following the cut dimensions provided for a clean finish. Thanks to its wide range of color temperature (3CCT) and universal voltage, it adapts to various electrical configurations without the need for additional external transformers.
