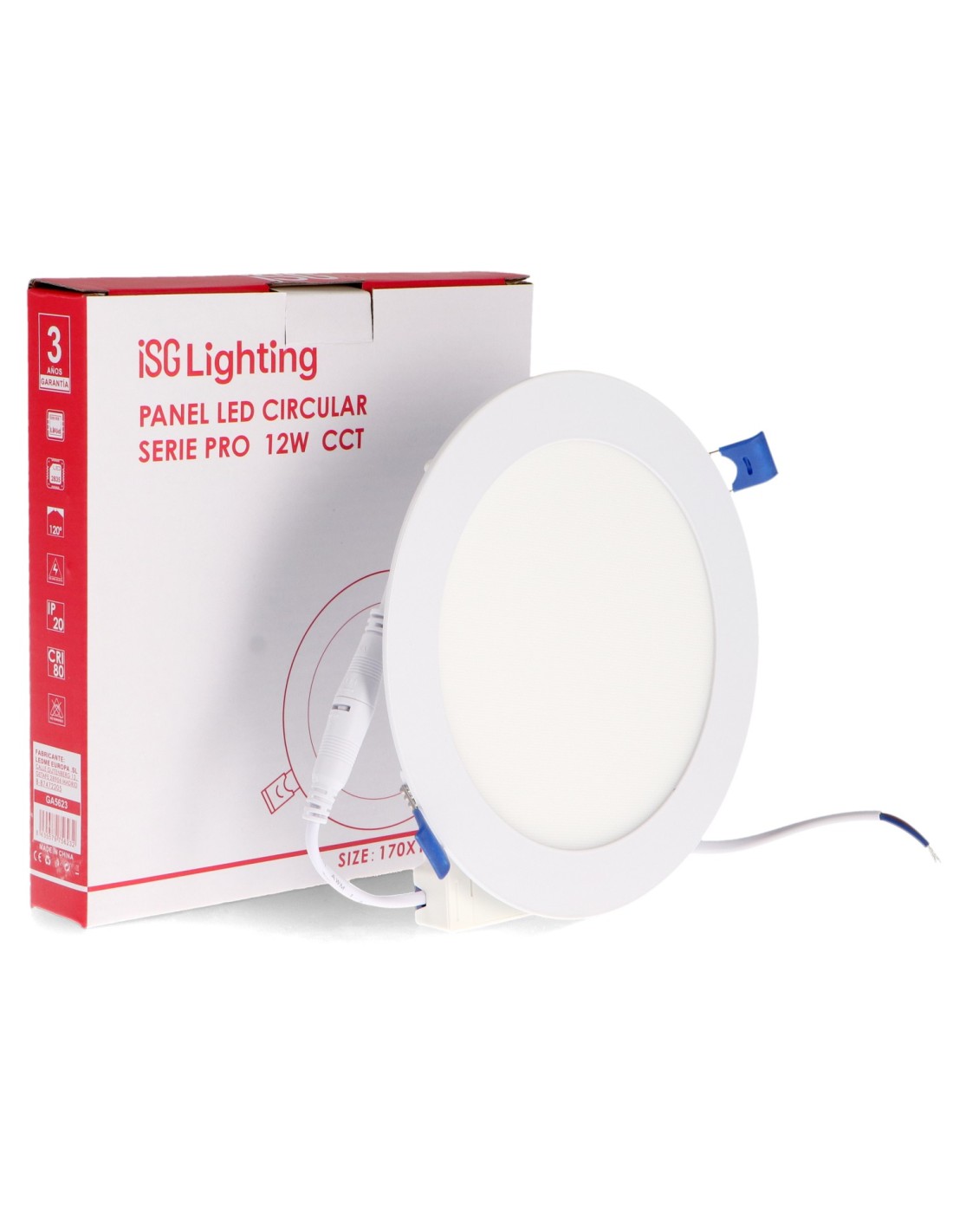

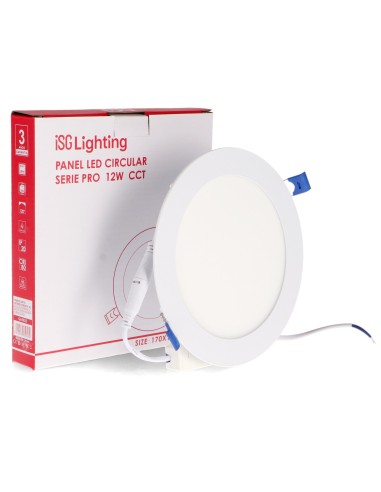

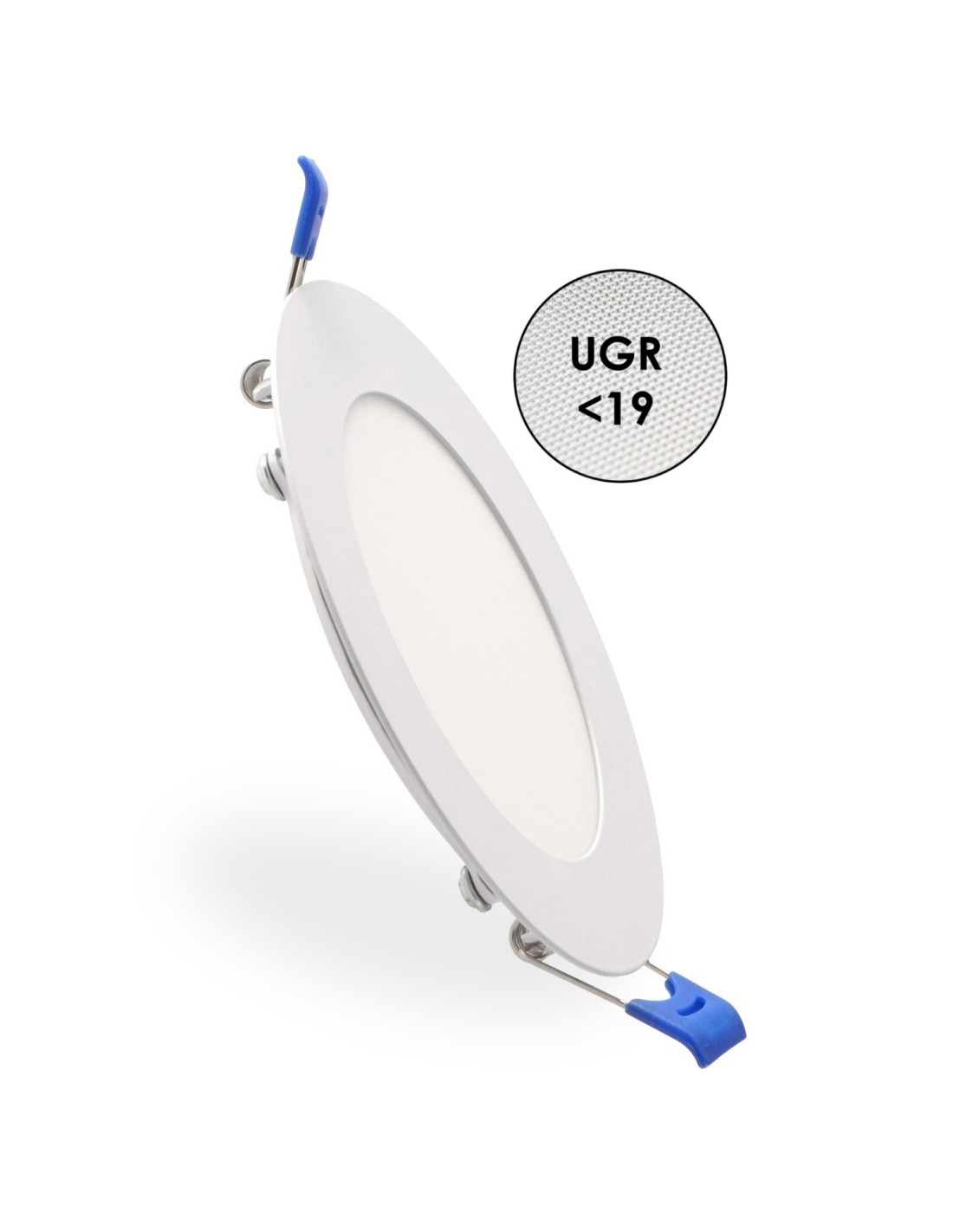

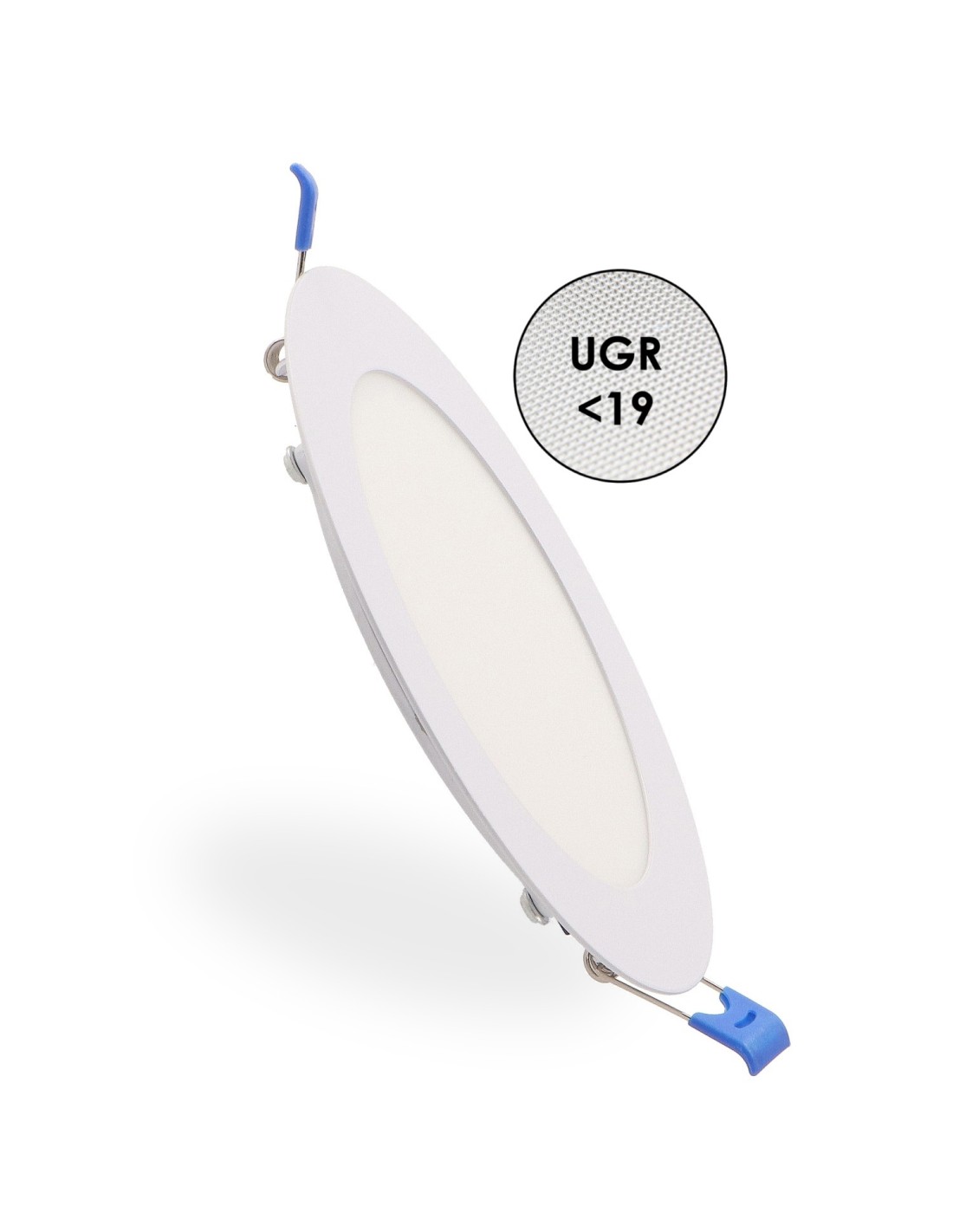

Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting
Circular LED Panel Pro Series 12W CCT iSG Lighting

Circular LED Panel Pro Series 12W CCT iSG Lighting

Available In stock 935 Items Reference LEDME GA5623
€8.81
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Power (W) 12 W
  • Lumens (lm) 1200 lm
  • Protection IP20
  • Type of lamp LED SMD 2835
  • Diameter 150 mm

The iSG Lighting Pro Series Circular LED panel integrates SMD 2835 chips to deliver 1200 lumens with 100 lm/W light efficiency. Its recessable aluminium design supports temperatures between -20°C and +45°C, ensuring a 30000-hour lifetime under power supply of 170-265V AC.

Description

The iSG Lighting Pro Series Circular Led Panel is a recessable lighting device designed to deliver an efficient and durable light solution. With a power of 12W and a SMD 2835 light source, it provides a brightness of 1200 lumens with an efficiency of 100 lm/W.

Technical characteristics

  • Watts: 12 w
  • Light Source: Smd 2835
  • Lightness: 1200
  • Efficiency Lm: 100
  • Working temperature: -20°C ~ + 45°C
  • Angle: 120°
  • Useful Life: 30000
  • Protection: IP20
  • Ik: 5
  • Class Electrical insulation: II
  • Power supply: 170-265v ac
  • Installation: Empotrable

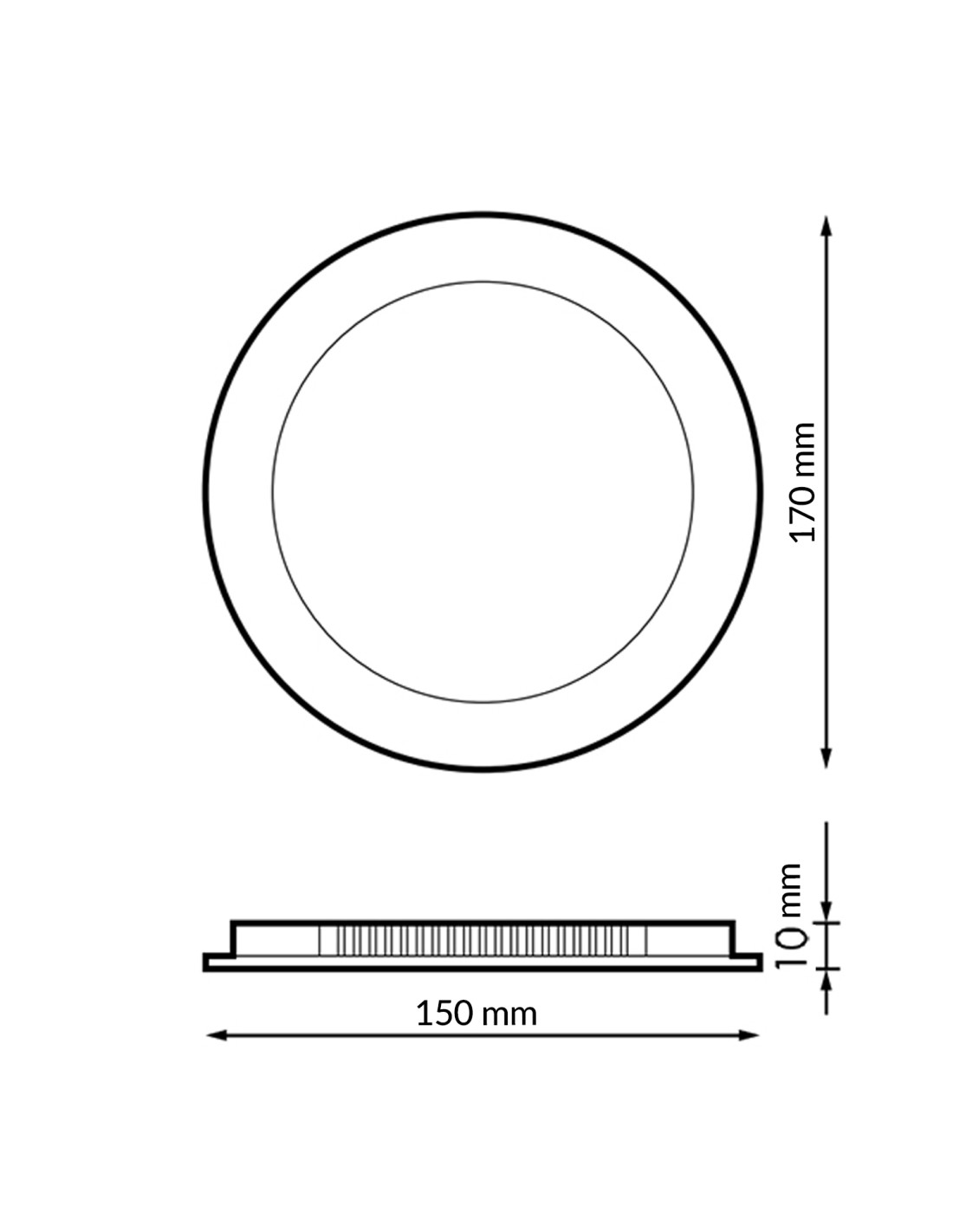

  • Dimension: 170X10H mm
  • Cut dimension: 150 mm
  • Material: Aluminium

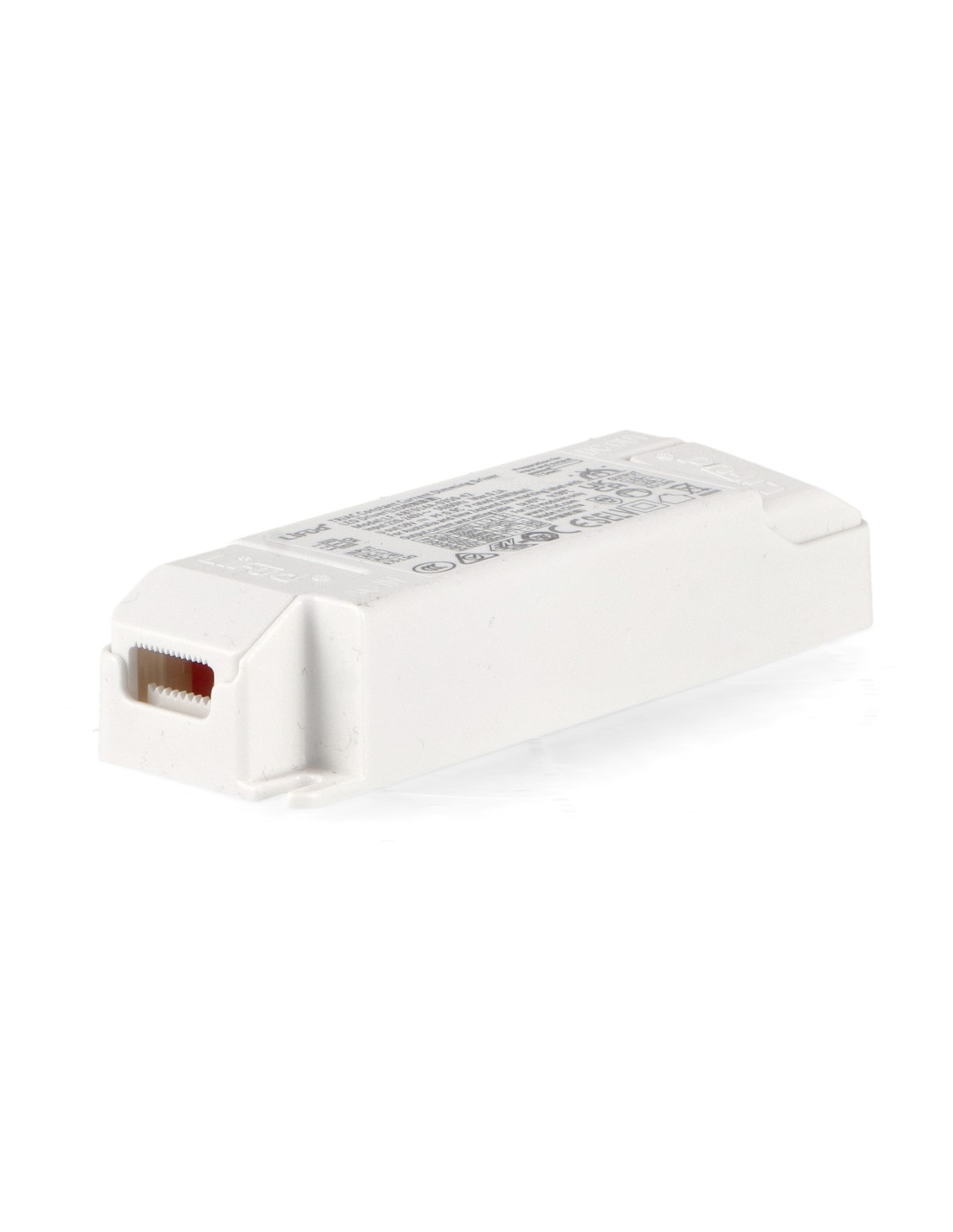

  • Driver: Lifud
  • Cri: 80
  • Ugr: <19
  • Guarantee: 5
  • Color Temperature: 3CCT

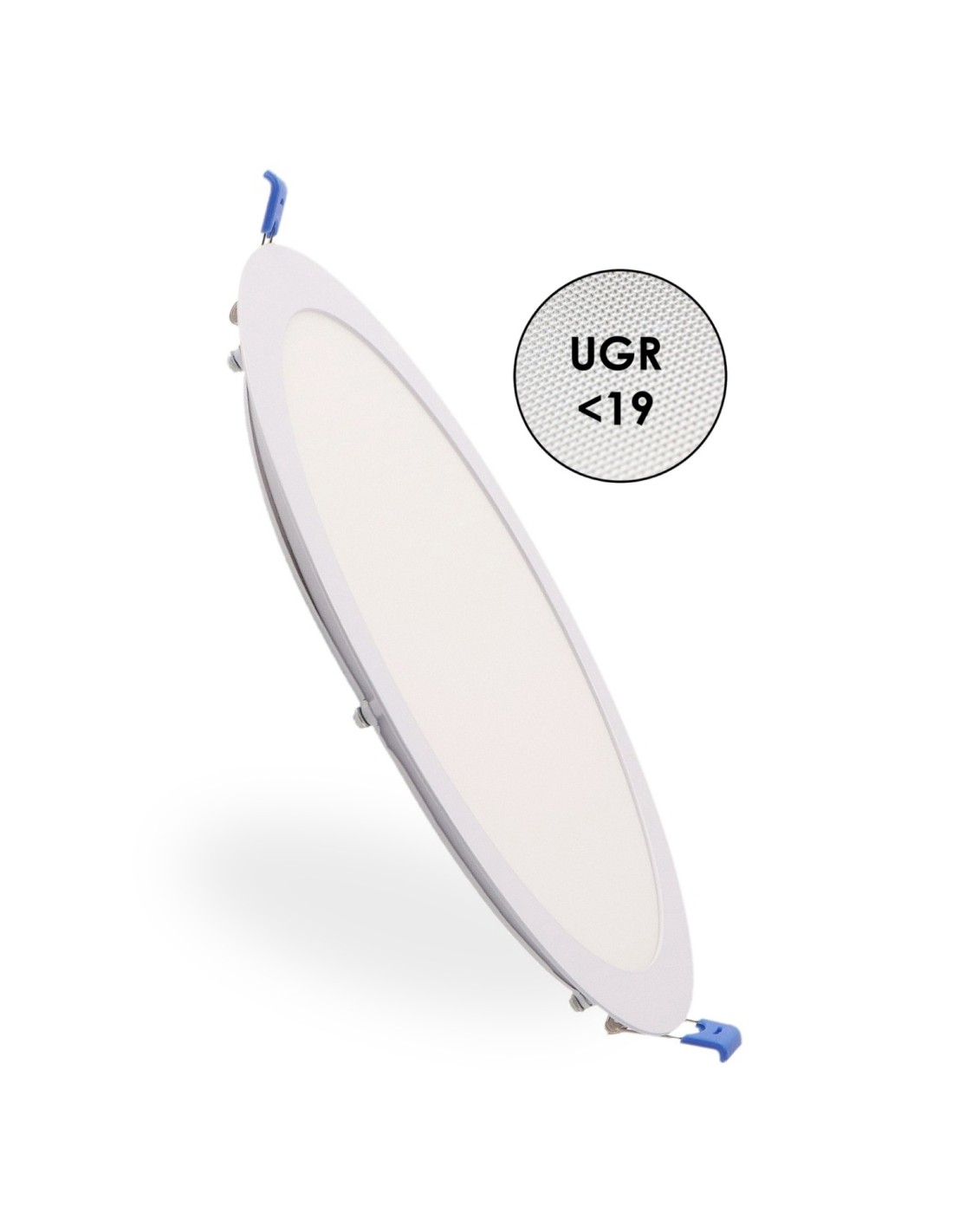

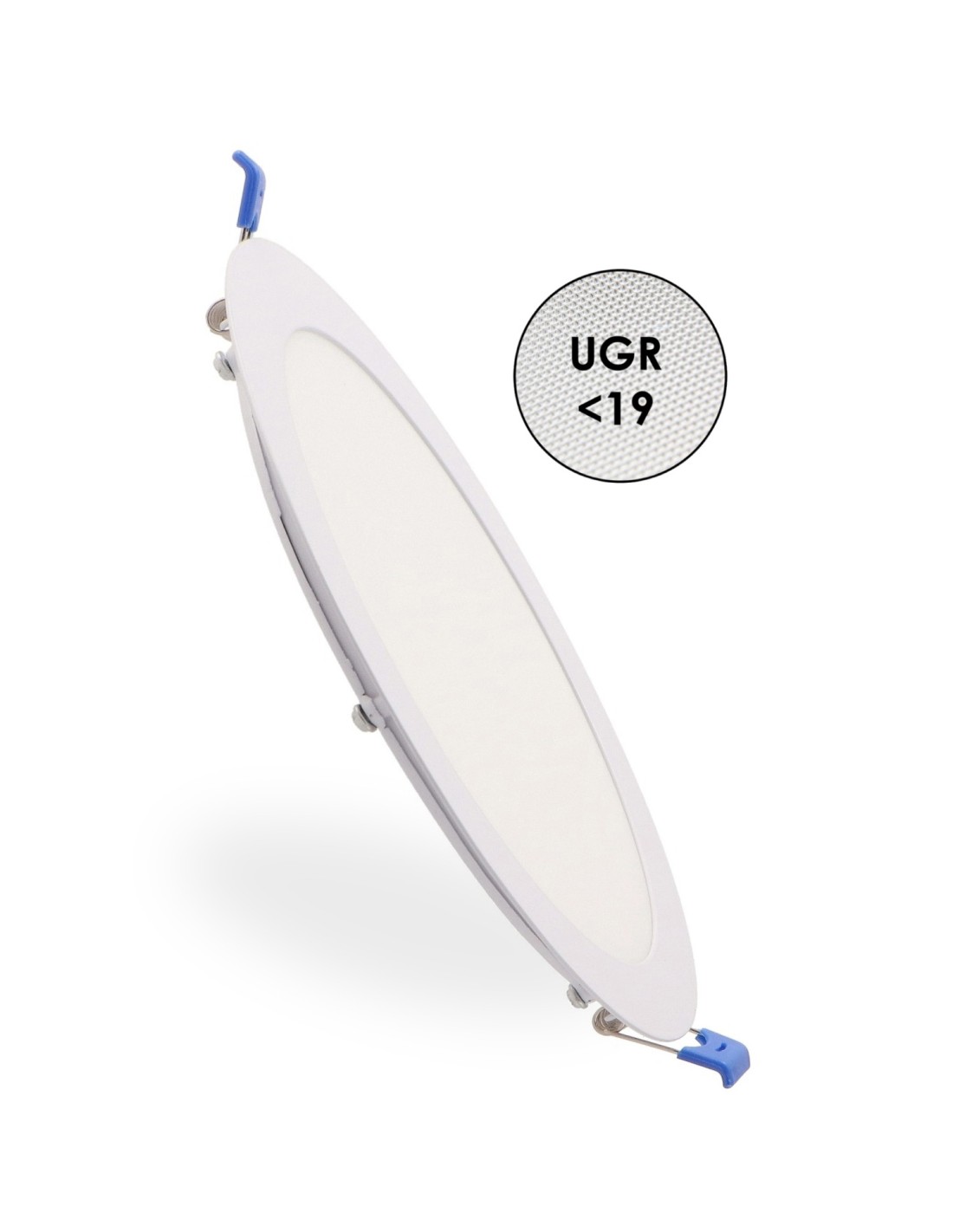

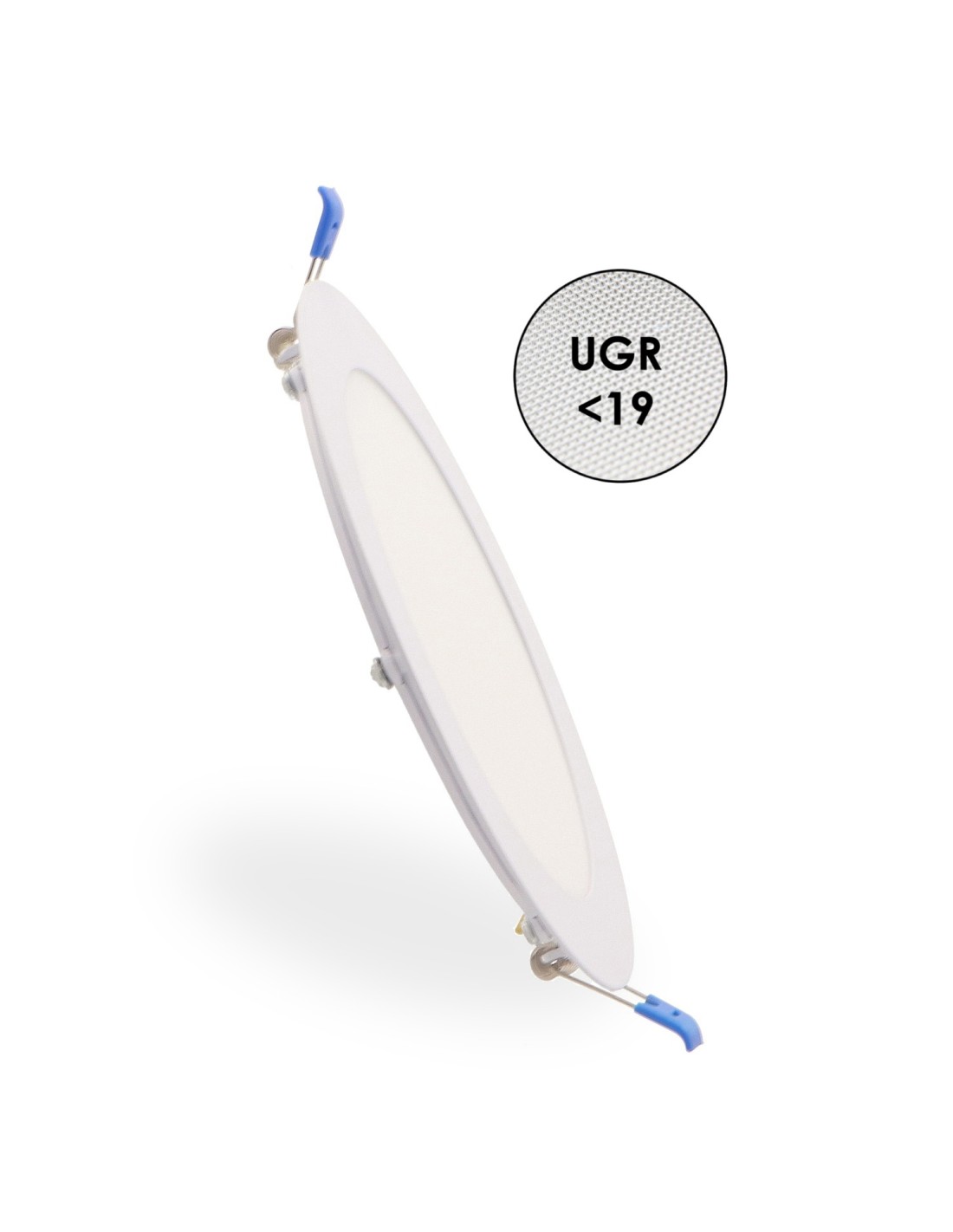

Thanks to its chromatic reproduction index of 80 and a UGR value of less than 19, it guarantees superior visual quality with a controlled glare. Its aluminium construction ensures adequate thermal dissipation within the specified operating range.

The installation requires cutting the gap to 150 mm for embezzlement, facilitating integration into flat ceilings or false ceilings.

Product Details

Dimensiones

Diameter 150 mm
High 10 mm
Width 170 mm
Long 170X10H mm
Depth 150 mm

Eficiencia

Estimated life (h) 30000

Eléctrico

Nominal voltage (V) 170-265 V

Iluminación

Power (W) 12 W
Light power (W) 12
Lumens (lm) 1200 lm
Type of lamp LED SMD 2835
Cri (Ra) 80

Protección

Protection IP20

Otras

Appliance class Class II
EAN 8435579756232
Manufacturer iSG Lighting
Reference LEDME GA5623
Diameter (cm) 17 cm

Información legal

Fabricante GRUPO EMPRESARIAL DECOMINSA, SL
Dirección Calle Gutenberg 12, CP 28906 Getafe, Madrid, ES
Email [email protected]
Teléfono +34 911220698
Referencia LEDME GA5623
EAN 8435579756232
935 Items
