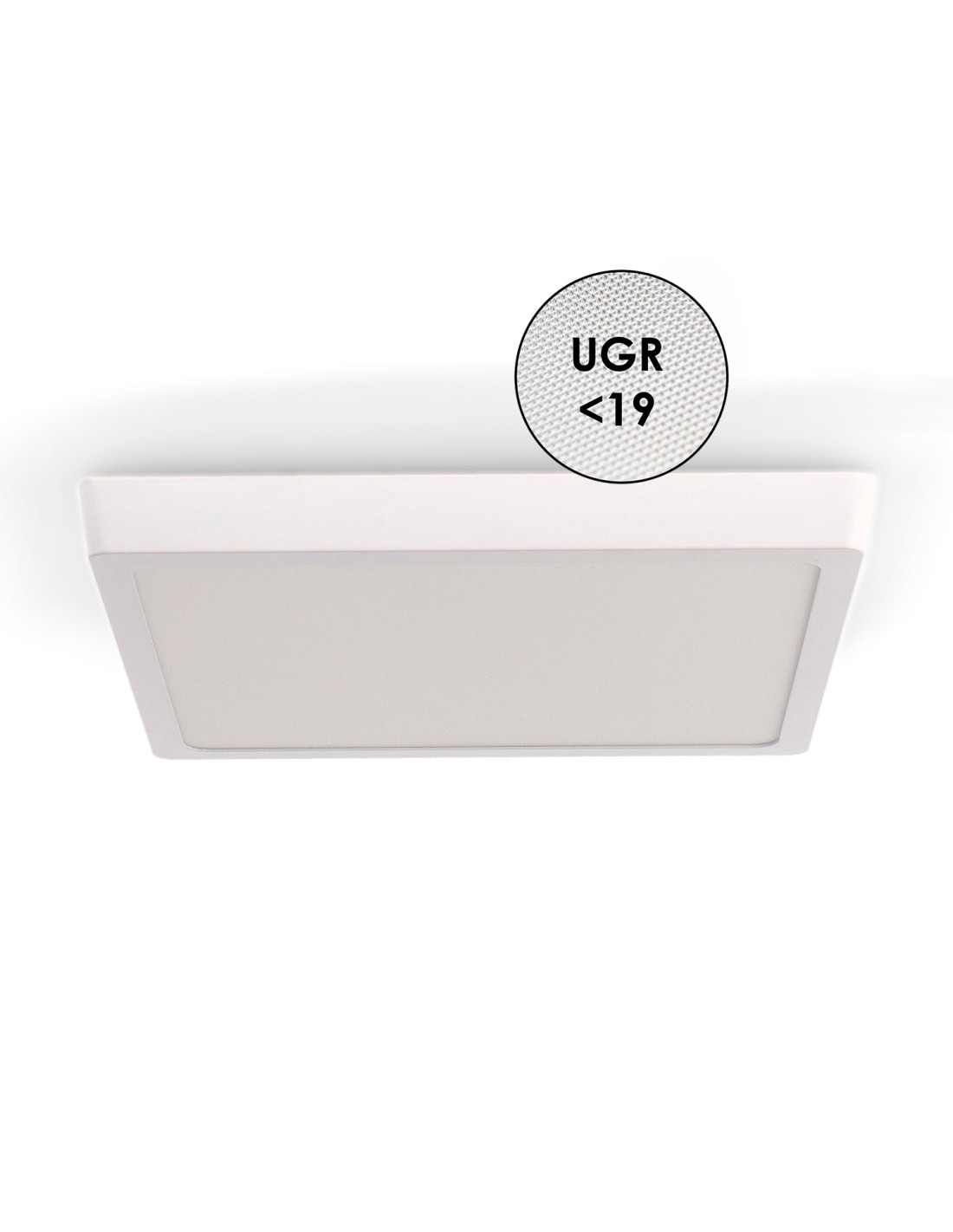

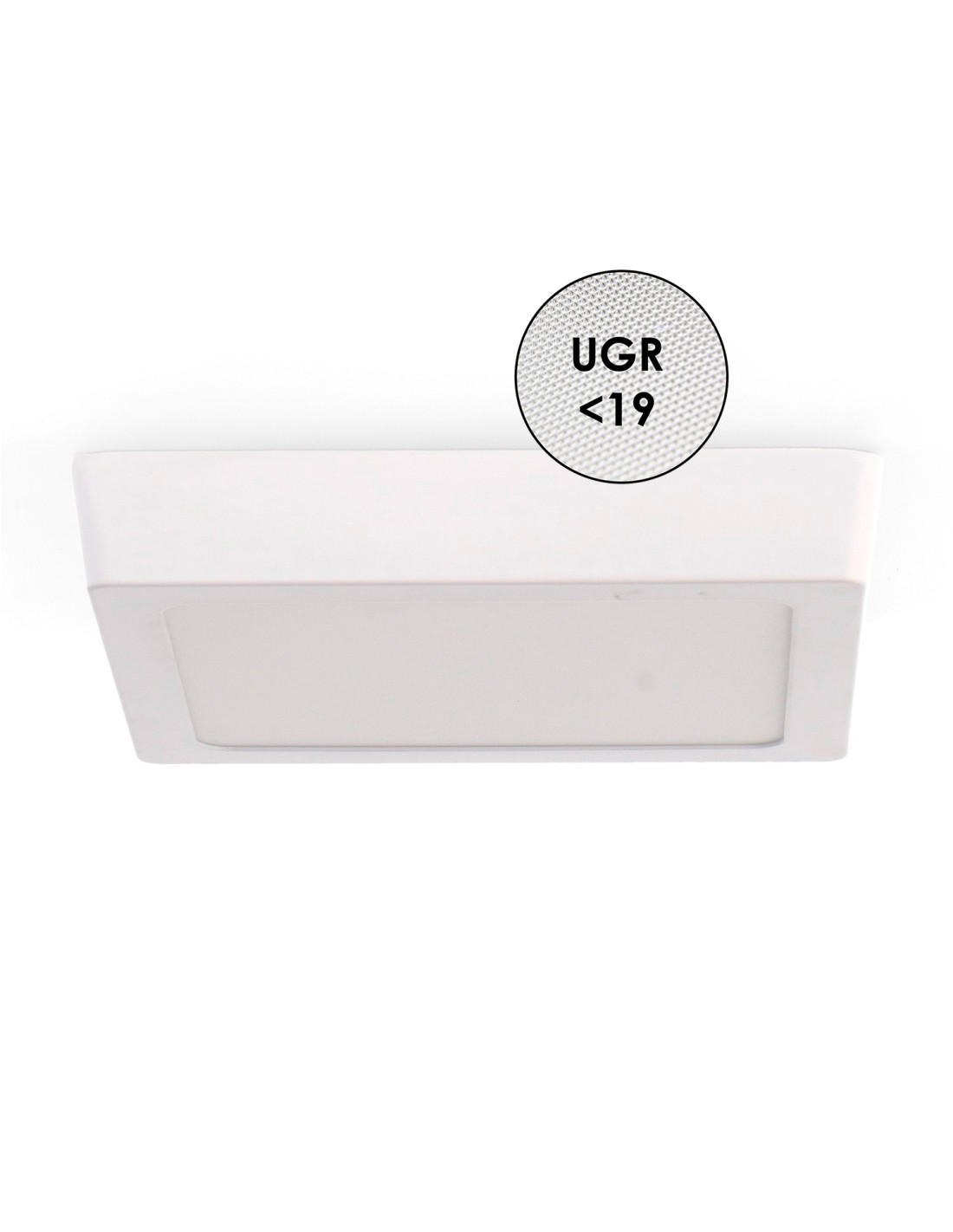

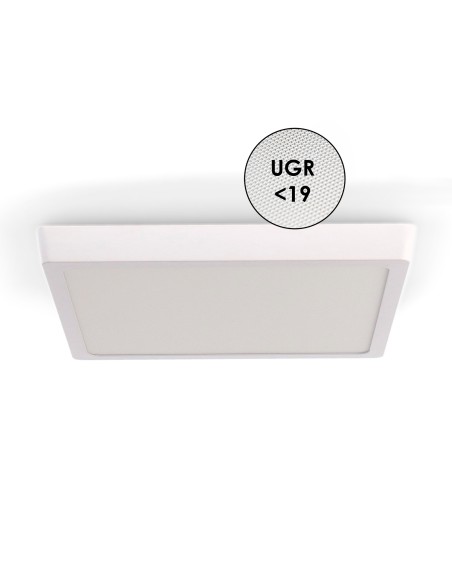

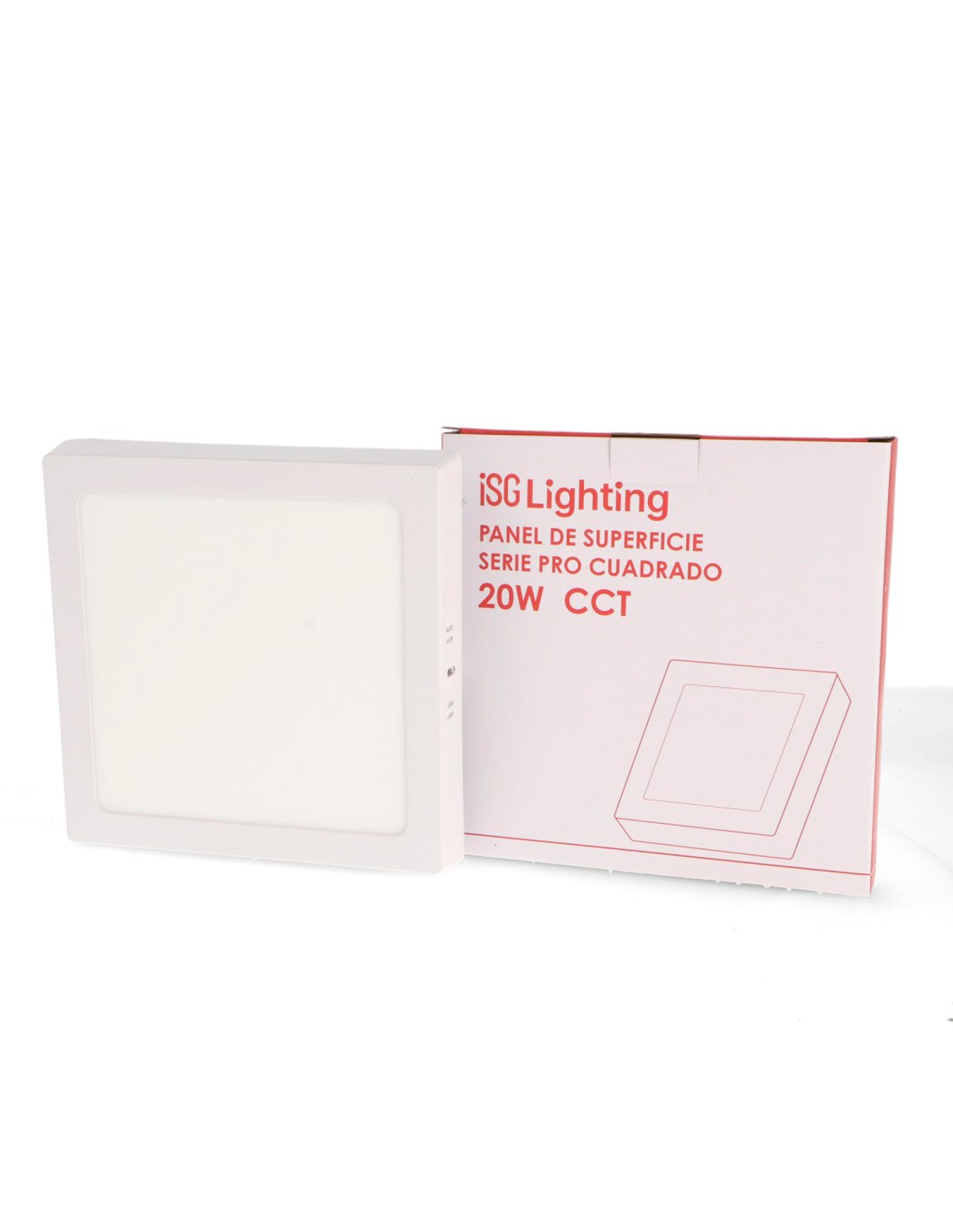

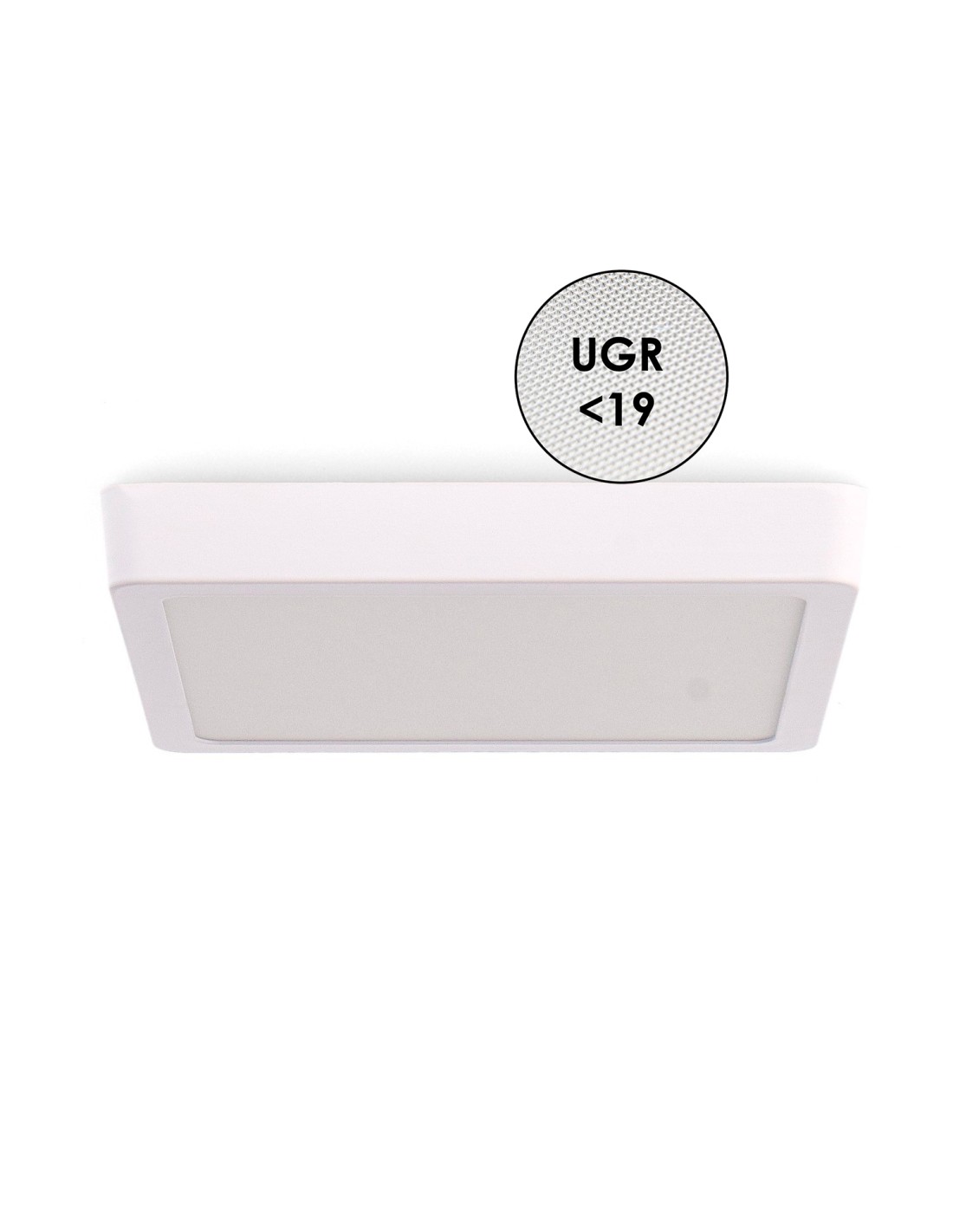

Surface Panel Pro Series Square 20W CCT

iSG Lighting's 20W CCT Square Pro Series Surface Panel is a LED lighting device designed for surface installation, offering an efficient and versatile solution for various environments. Its aluminium construction ensures durability and adequate thermal dissipation within the operating range of -20°C to +45°C.

Technical characteristics

• Trademark: iSG Lighting
• Power: 20 W
• Light source: Ledvance
• Luminosity: 2000 lm
• Light efficiency: 100 lm/W
• Emission angle: 120°
• Lifetime: 30,000 hours
• IP protection: IP20
• Electrical insulation class: II
• Power supply: 170-265 V AC
• Dimensions: 220x220x28 mm
• Materials: Aluminium

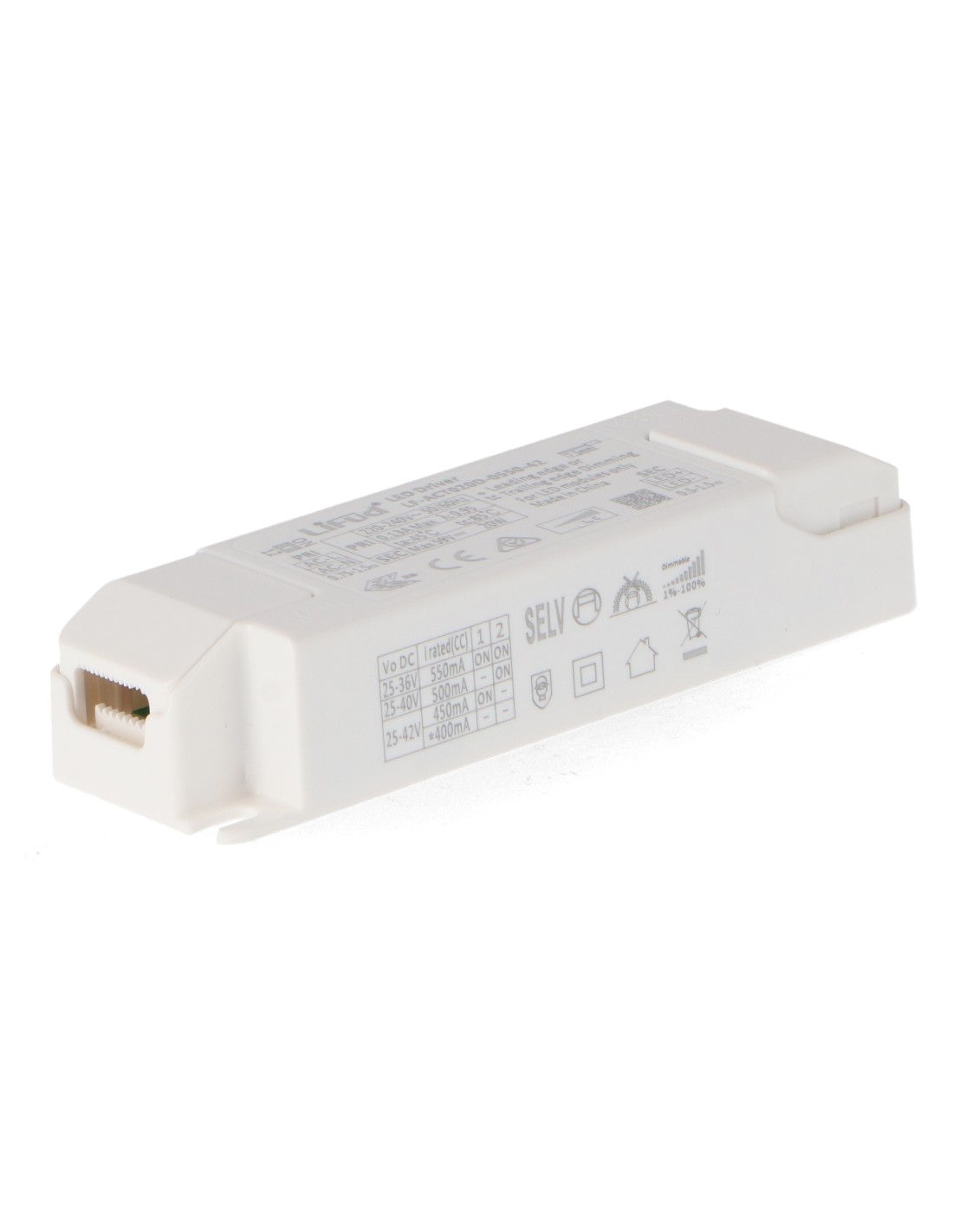

• Driver: Lifud
• chromatic reproduction index (CRI): 80
• Power factor: 0.5
• Color temperature: 3 CST
• Guarantee: 5 years

With an angle of 120 degrees and high light efficiency, this panel provides a wide and uniform light distribution, ideal for spaces that require general quality lighting without excessive glare.

Its surface installation allows a discreet integration into flat or false ceilings, taking advantage of its thin 28 mm profile to maintain the aesthetics of the illuminated space.
