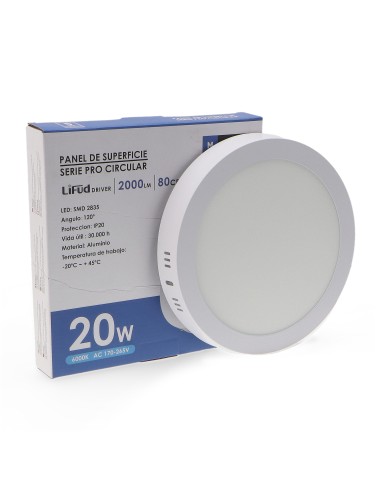

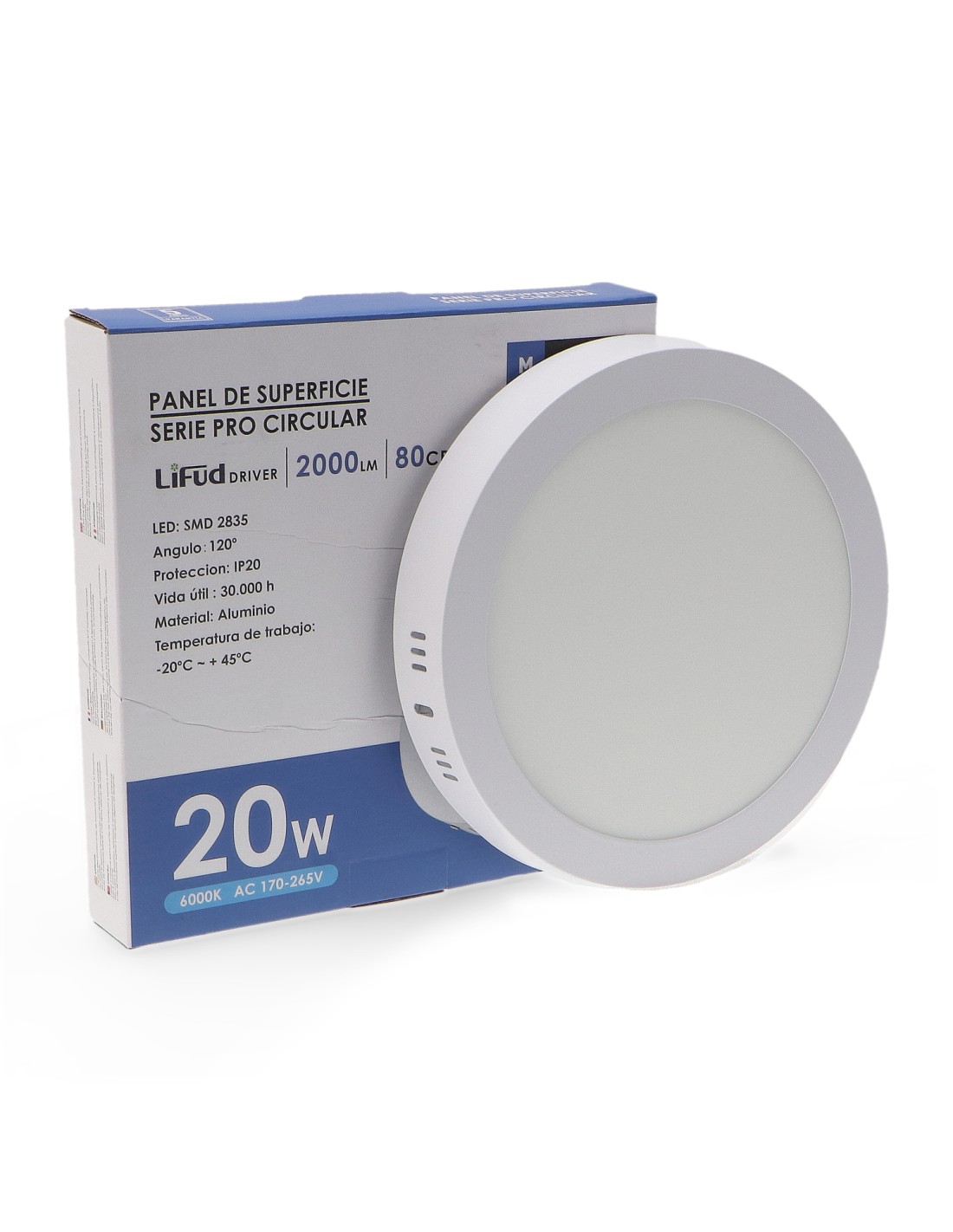

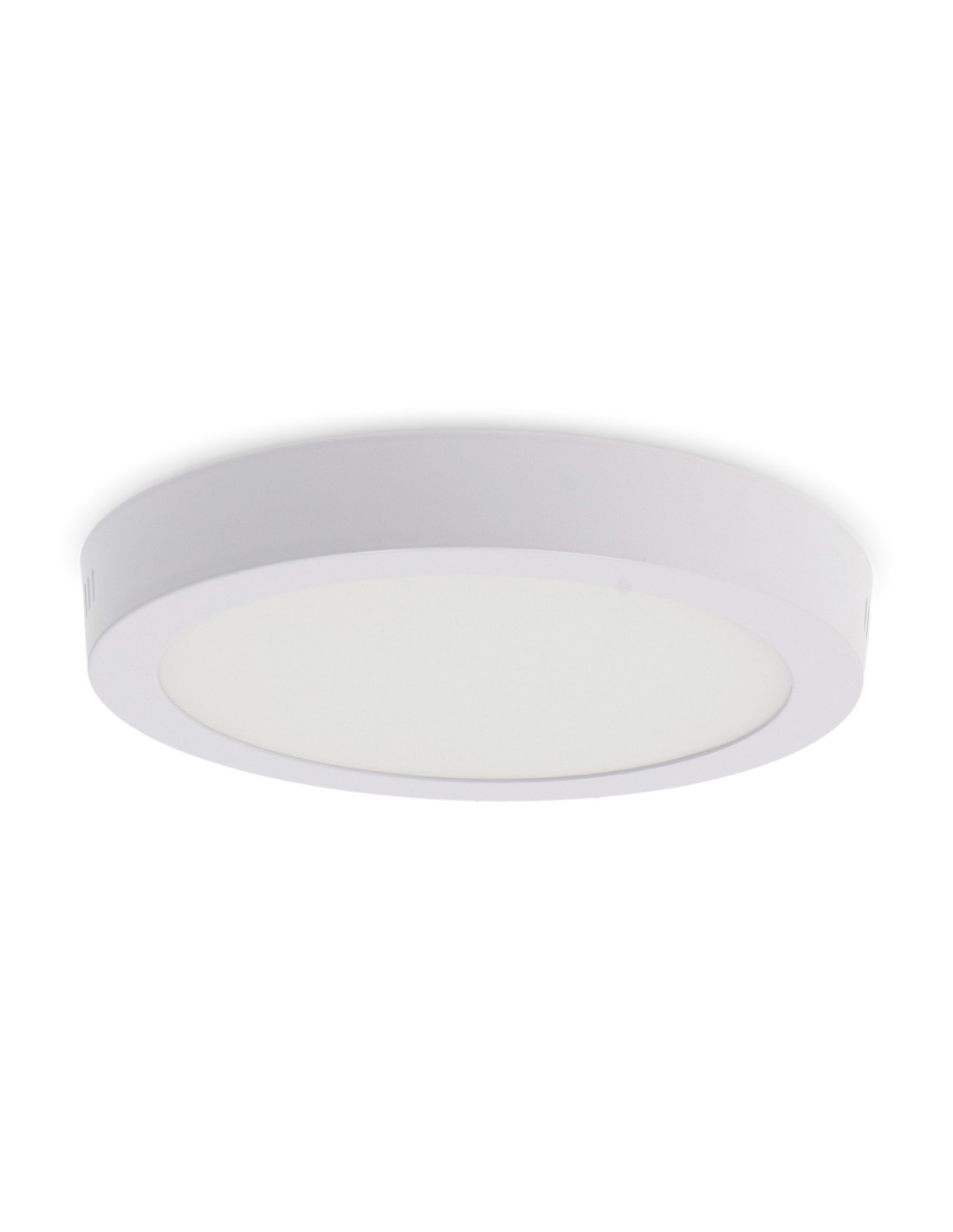

Surface-mounted circular panel Series Pro 20W M LEDME aluminum
Surface-mounted circular panel Series Pro 20W M LEDME aluminum
Surface-mounted circular panel Series Pro 20W M LEDME aluminum
Surface-mounted circular panel Series Pro 20W M LEDME aluminum
Surface-mounted circular panel Series Pro 20W M LEDME aluminum
Surface-mounted circular panel Series Pro 20W M LEDME aluminum
Surface-mounted circular panel Series Pro 20W M LEDME aluminum
Surface-mounted circular panel Series Pro 20W M LEDME aluminum
Surface-mounted circular panel Series Pro 20W M LEDME aluminum
Surface-mounted circular panel Series Pro 20W M LEDME aluminum

Surface-mounted circular panel Series Pro 20W M LEDME aluminum

Available In stock 708 Items Brand LEDME Reference LEDME GA5643
€9.06
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Power (W) 20 W
  • Lumens (lm) 2000 lm
  • Colour temperature 3000K
  • Protection IP20
  • Type of lamp LED SMD 2835

The M LEDME Series Pro surface mount circular panel integrates Smd 2835 source and Lifud driver to deliver 2000 lumens with 100 lm/W efficiency. Its aluminum housing dissipates heat in a range of -20°C to +45°C, ensuring a lifespan of 30000 hours under 170-265v ac power supply.

Description

The M LEDME Series Pro Circular Surface Mount Panel 20W is an lighting device designed to offer efficient performance and durability in general applications. Its robust construction ensures stable operation under various environmental conditions.

Technical Specifications

  • Brand: M LEDME
  • Power: 20 W
  • Light Source: SMD 2835
  • Luminous Efficiency: 100 lm/W
  • Operating Temperature: -20°C ~ +45°C
  • Beam Angle: 120°
  • Lifespan: 30000 hours
  • Protection: IP20, IK5
  • Electrical Insulation Class: II
  • Surge Protection: 4 kV
  • Input Voltage: 170-265 V AC
  • Output Voltage: 25-40 V DC
  • Current Intensity: 450 mA
  • Dimensions: 210x28 mm
  • Material: Aluminum

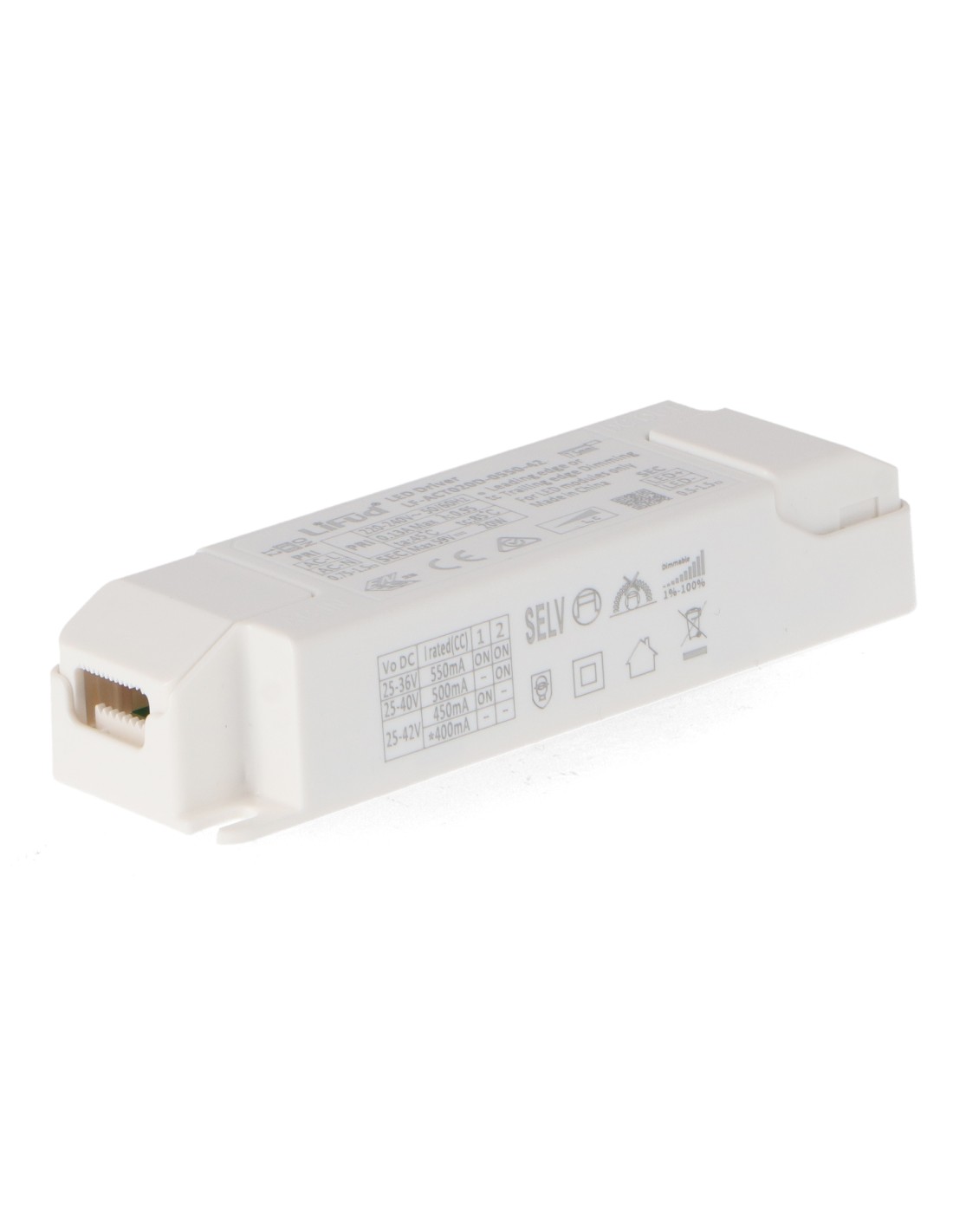

  • Driver: Lifud
  • CRI: 80
  • Power Factor: 0.5
  • Warranty: 5 years
  • Available Color Temperatures: 3000K, 4000K, 6000K

With its aluminum housing and Lifud driver, this panel combines mechanical resistance with proper thermal management to maintain light flux stability during its long operational life.

Product Details

Dimensiones

Measures 210x28 mm

Eficiencia

Estimated life (h) 30000

Eléctrico

Nominal voltage (V) 170-265 V ac

Iluminación

Power (W) 20 W
Colour temperature 3000K
Lumens (lm) 2000 lm
Type of lamp LED SMD 2835
Cri (Ra) 80
Opening angle 120°

Instalación

Type of installation Surface

Protección

Protection IP20

Otras

Appliance class Class II
EAN 8435579756430
Manufacturer Ledme
Reference LEDME GA5643
Material Aluminio

Información legal

Fabricante LEDME
Dirección Calle Gutenberg 12, CP 28906 Getafe, Madrid, ES
Email [email protected]
Teléfono +34 911220698
Referencia LEDME GA5643
EAN 8435579756430
708 Items
