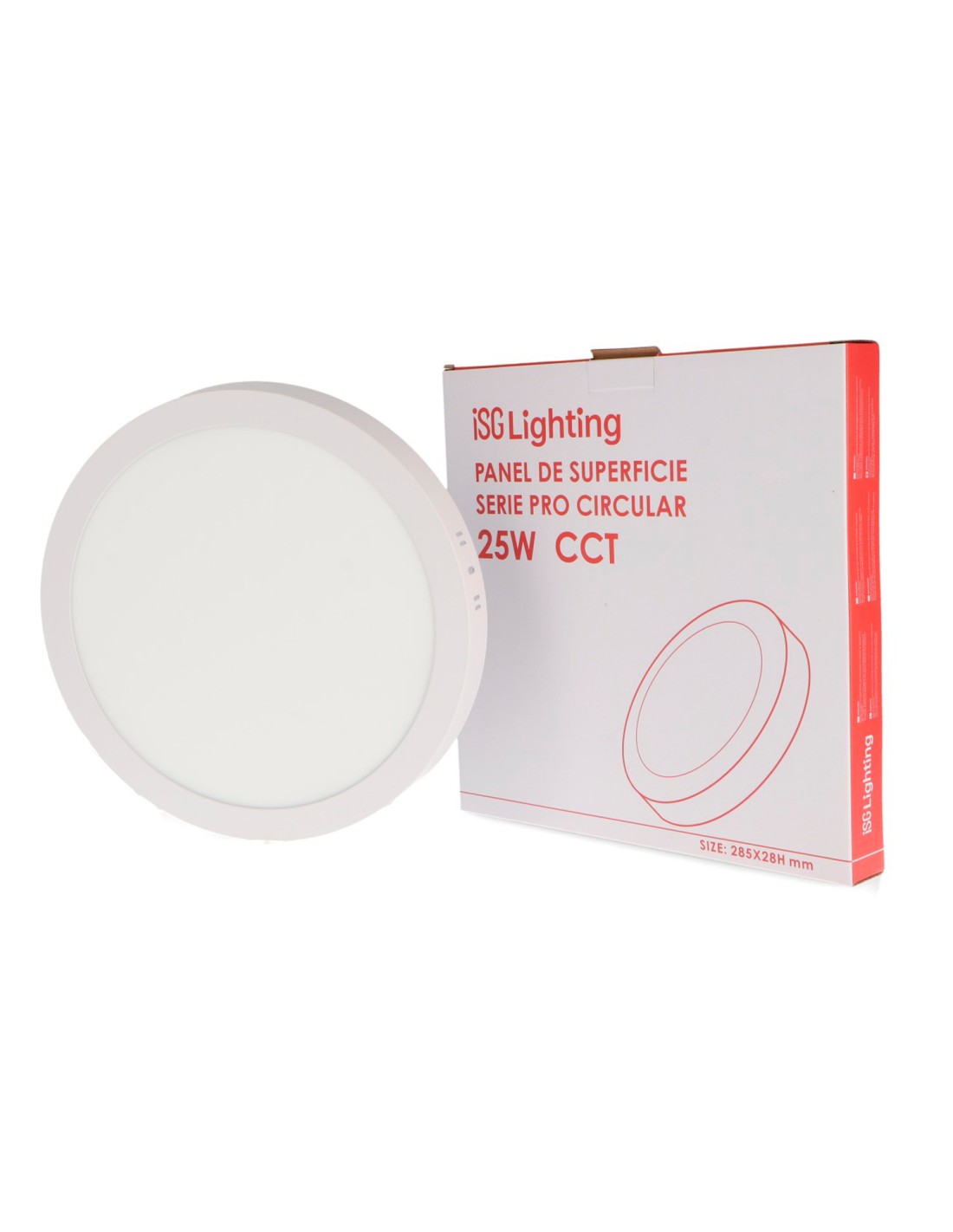

Circular Surface Panel Pro Series 25W CCT

The iSG Lighting Circular Surface Pro Series 25W CCT LED panel is designed for recessed or surface mounting, offering an efficient and durable lighting solution with Ledvance source.

Technical Specifications

• Watts: 25 w
• Luminous Flux: 2500 lm
• Luminous Efficacy: 100
• Operating Temperature: -20°C ~ +45°C
• Beam Angle: 120°
• Lifespan: 30,000 hours
• Protection: IP20, Ik: 5
• Electrical Insulation Class: II
• Overvoltage Protection: 4 Kv
• Supply Voltage: 170-265v ac

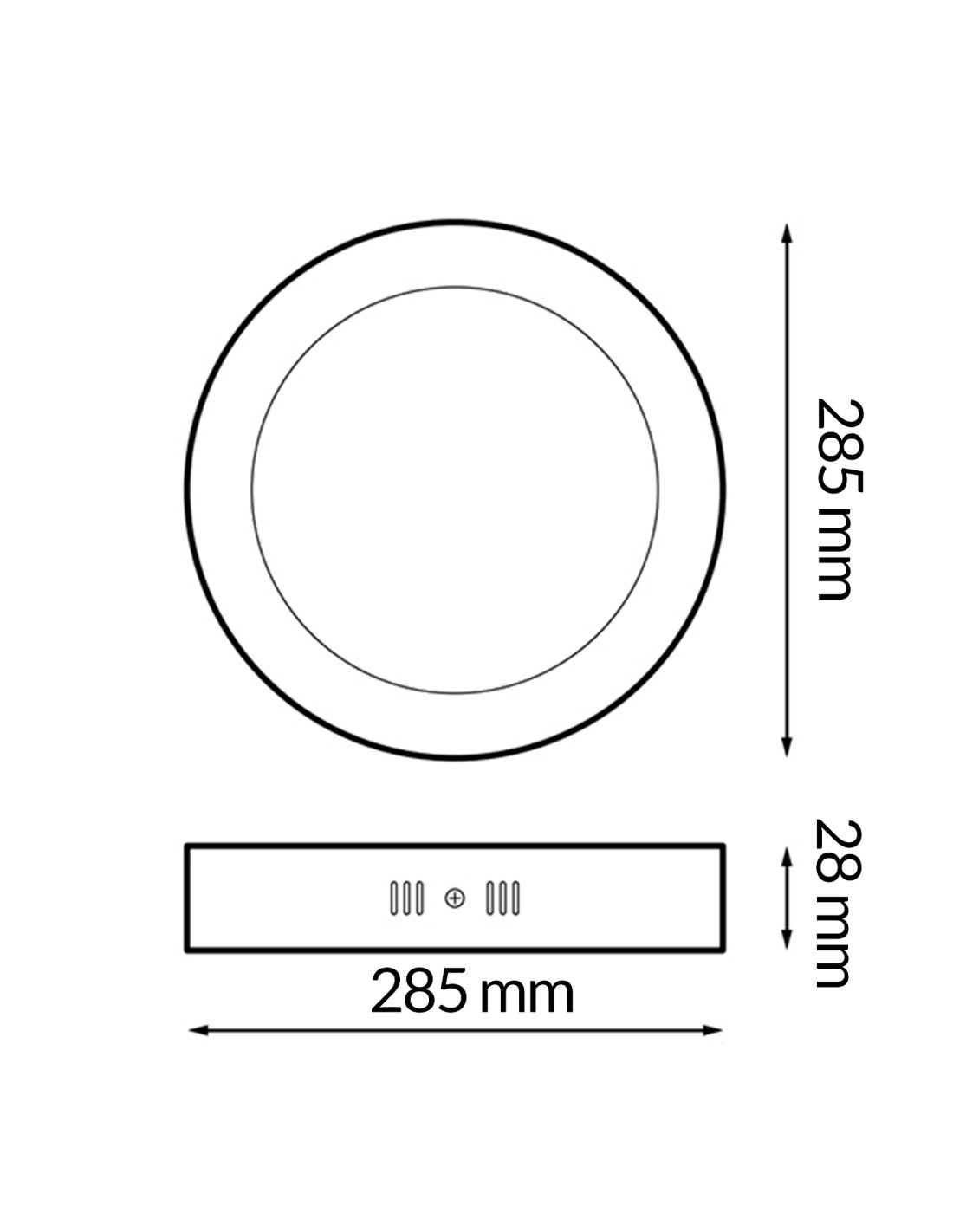

• Dimensions: 285X28H mm
• Material: Aluminum
• Driver: Lifud
• CRI: 80

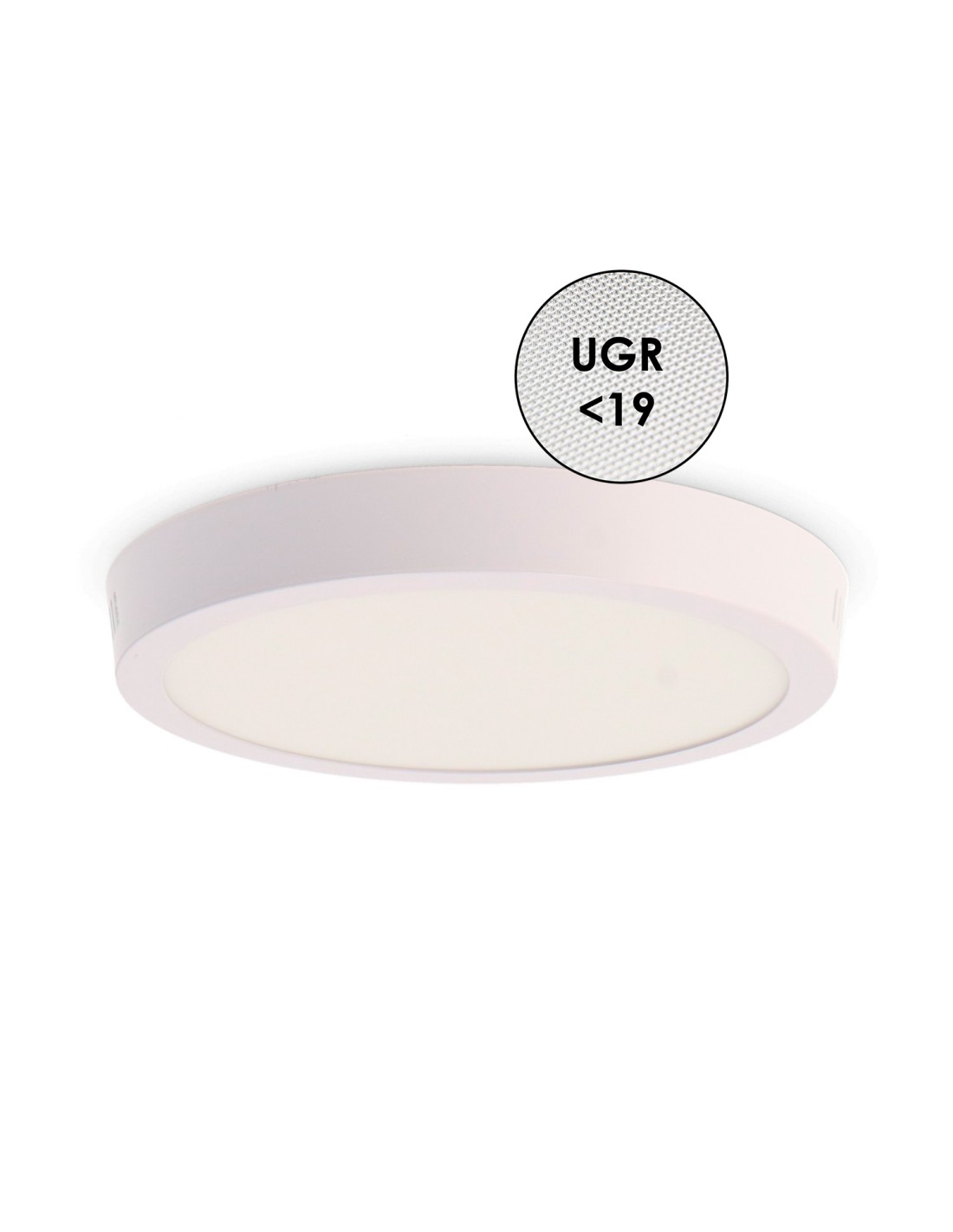

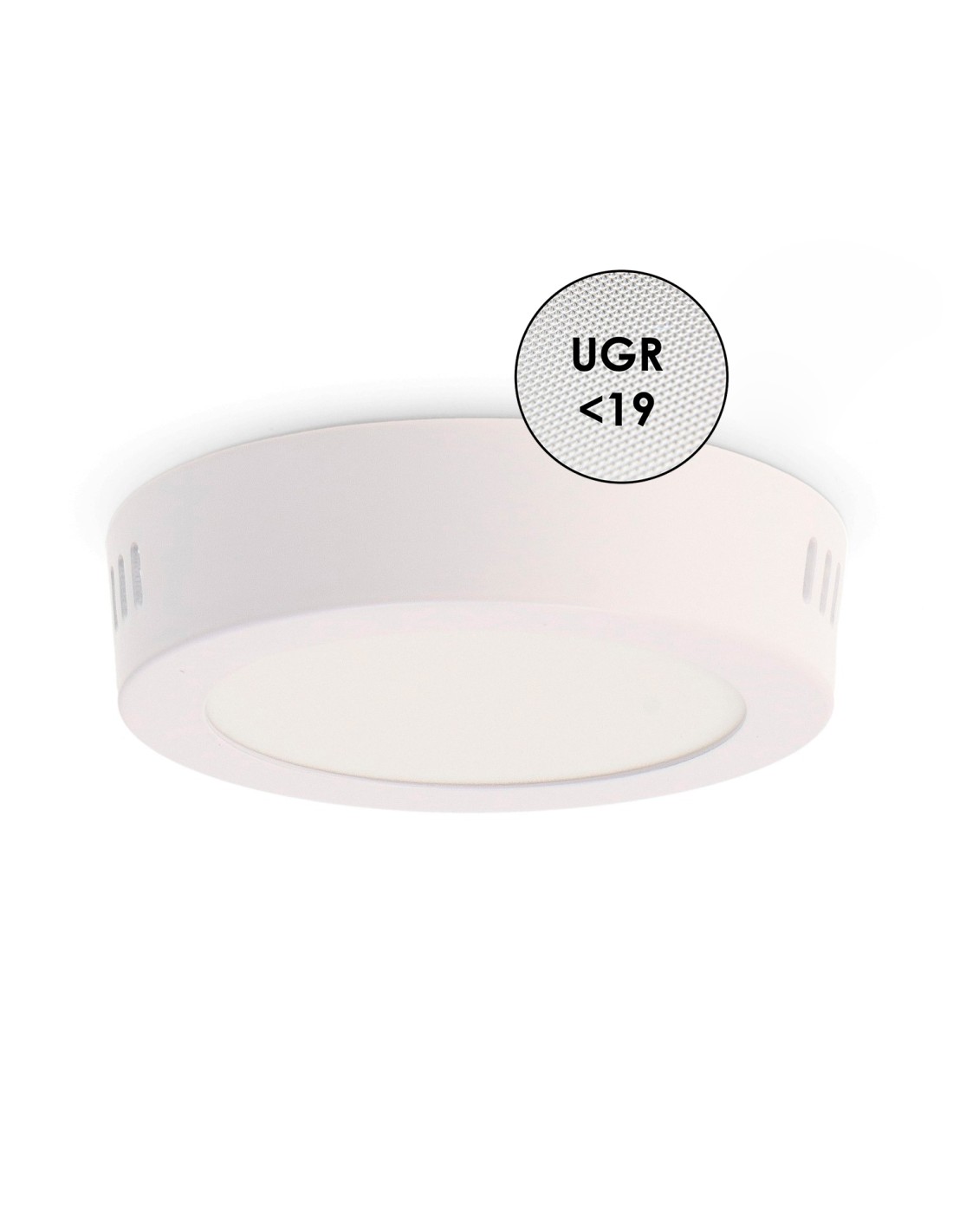

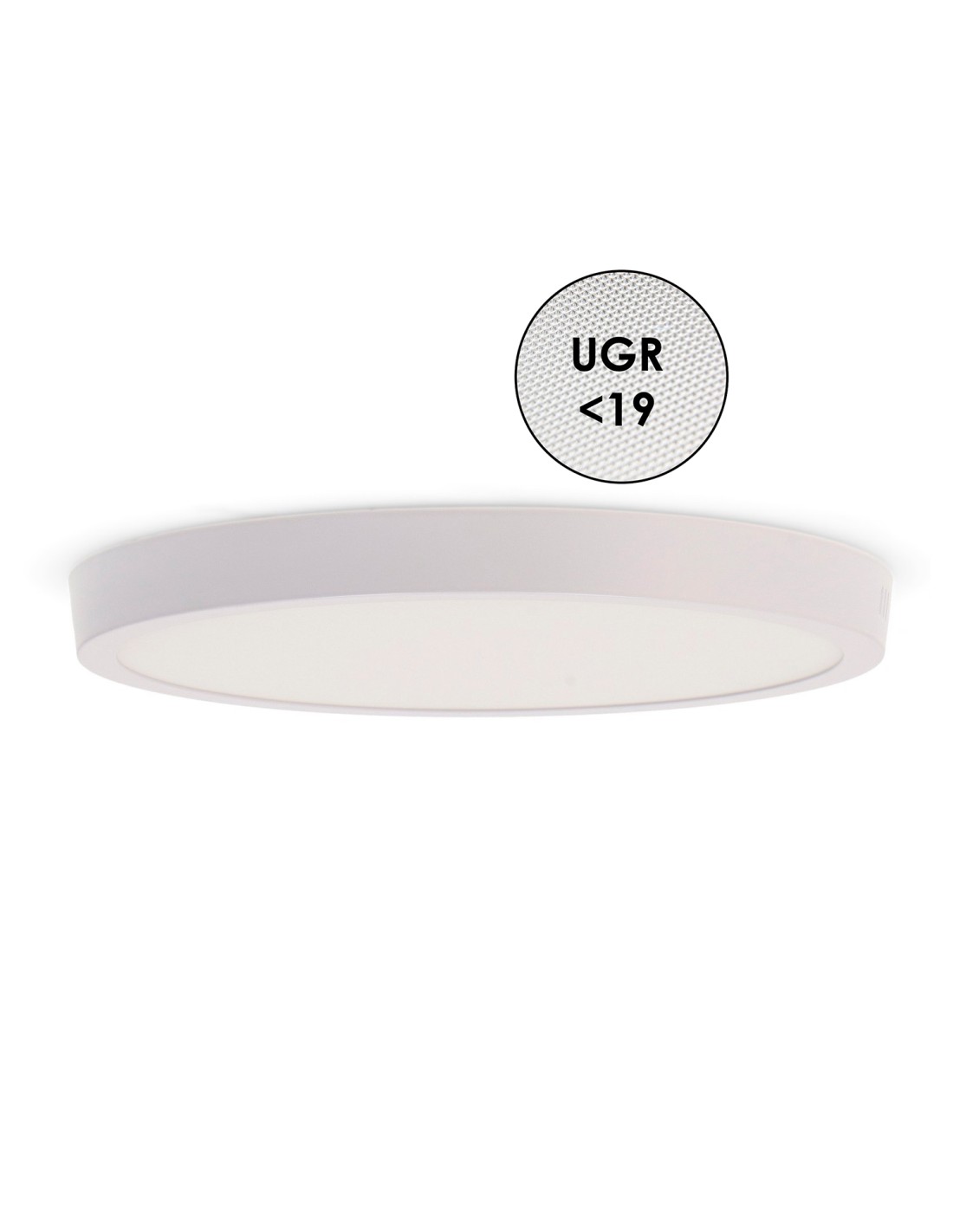

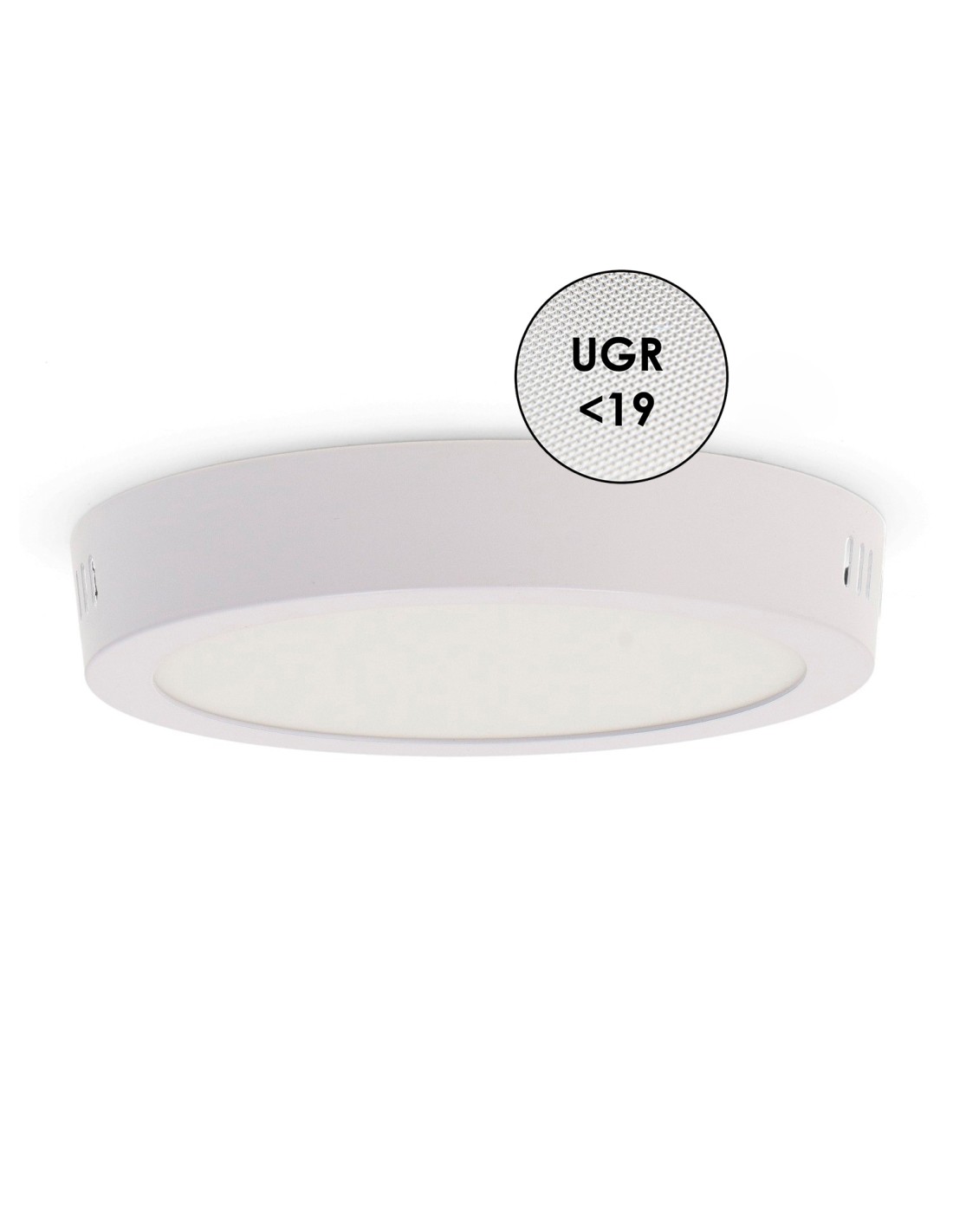

• UGR: <19
• Dimmable: Optional
• Color Temperature: 3CCT

With a low UGR index and high luminous efficacy, this panel ensures uniform and comfortable lighting. Its aluminum construction ensures the necessary heat dissipation to maintain performance throughout its long lifespan.

Surface mounting allows for easy integration into various indoor environments where precise light control is required, with dimming options available.
