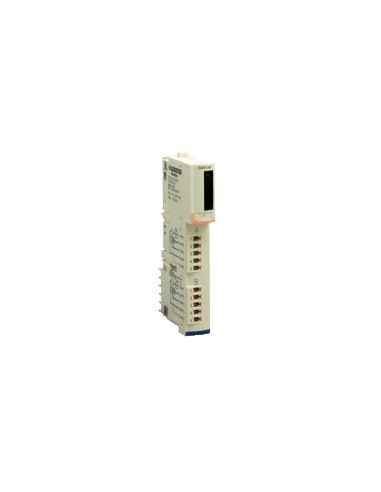

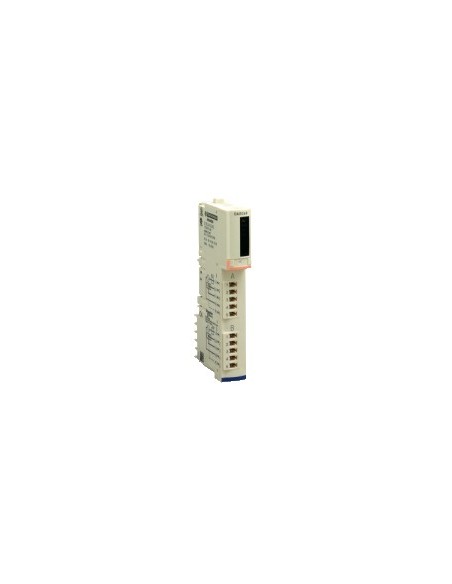

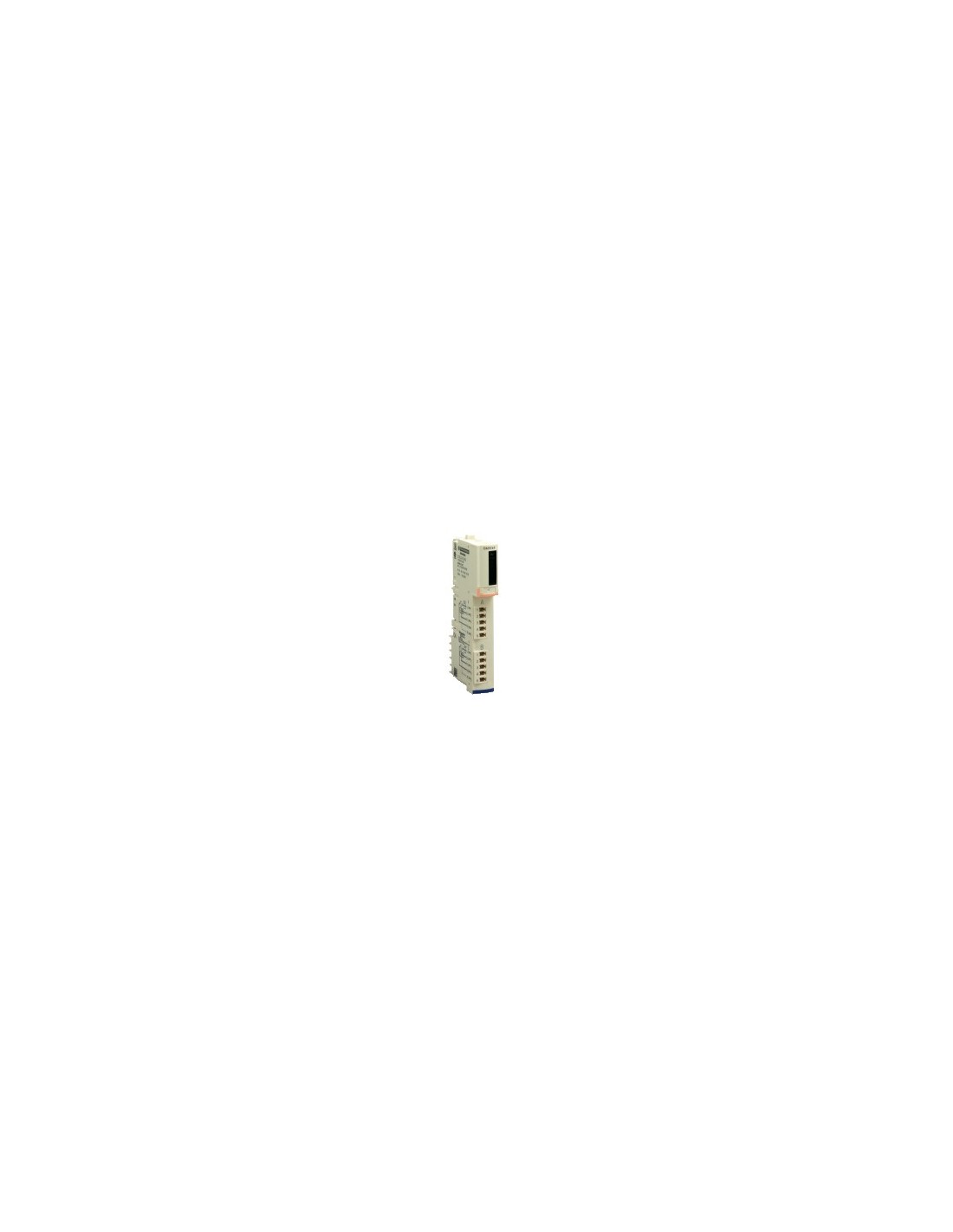

Standard digital input kit for Modicon STB systems, designed to be integrated into distributed automation solutions. It allows the connection of two digital inputs to 115 V AC with positive or negative logic, ideal for industrial applications that require discrete signal detection in environments with electromagnetic interference. Compatible with STBXBA2000 base and STBPDT2100/2105 power distribution modules.
Technical characteristics
- Number of digital inputs: 2
- Digital input voltage: 115 V AC
- Separation bars: 0...20 V in status 0, 74...132 V in status 1
- Voltage allowed: 132 V
- Maximum absolute voltage: 200 V for 20 ms
- Network frequency: 50/60 Hz
- Allocation of frequency limits for use: 47...63 Hz
- Current state 0 guaranteed: ≤ 2 mA
- Current State 1 guaranteed: ≥ 4 mA
- Digital input logic: Positive or negative
- Response time: 1.5 ms (off-a-on and on-a-off)
- Input protection: Varistor limited metallic oxide
- Food protection: External fuse of 0.5 A
- Insulation between channels: 1780 V for 1 minute
- Inter-channel isolation and logic bus: 1780 V for 1 minute
- Cold exchange: Yes
- Delayed hot exchange: Yes for standard NIM
- Power supply: Power distribution module
- Current consumption: 45 mA in 5 V DC for logic bus
- Operating ambient temperature: 0...60 °C
- Storage ambient temperature: -40...85 °C
- Relative humidity: 95 % at 60 °C without condensation
- Vibration resistance: 3 gn in 58...150 Hz (DIN 35 x 7.5 mm), 5 gn in 58...150 Hz (DIN 35 x 15 mm), ±0.35 mm in 10...58 Hz
- Shock resistance: 30 gn for 11 ms
- Degree of contamination: 2 (agreed to IK07)
- Maximum operating altitude: ≤ 2000 m
- Degree of IP protection: IP20 (according to IEC 61131-2 class 1)
- Standards: EN/IEC 61131-2 type 1
- Certifications: CE, NF, UL, CSA
- Status LED: 1 green LED (RDY), 2 green LEDs (IN1, IN2), 1 red LED (ERR)
- Dimensions: 125 mm (width) x 65.1 mm (deepness) x 18.4 mm (height)
- Product weight: 0.065 kg
- REACh Regulation: Contains SVHC over the threshold
- EU RoHS Directive: Proactive (out-of-scope) compliance
- RoHS exemptions: Yes
- WEEE: To be discarded by specific system in the EU
