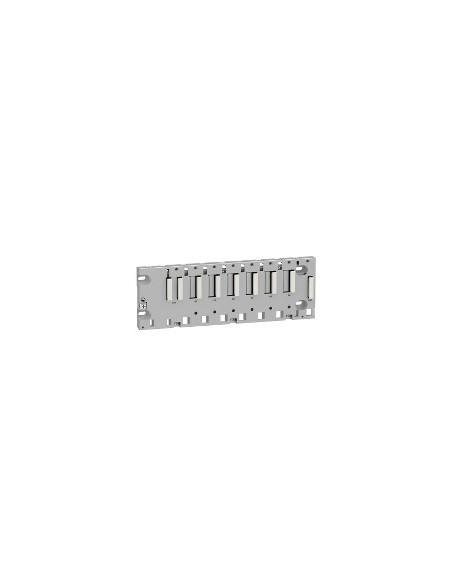

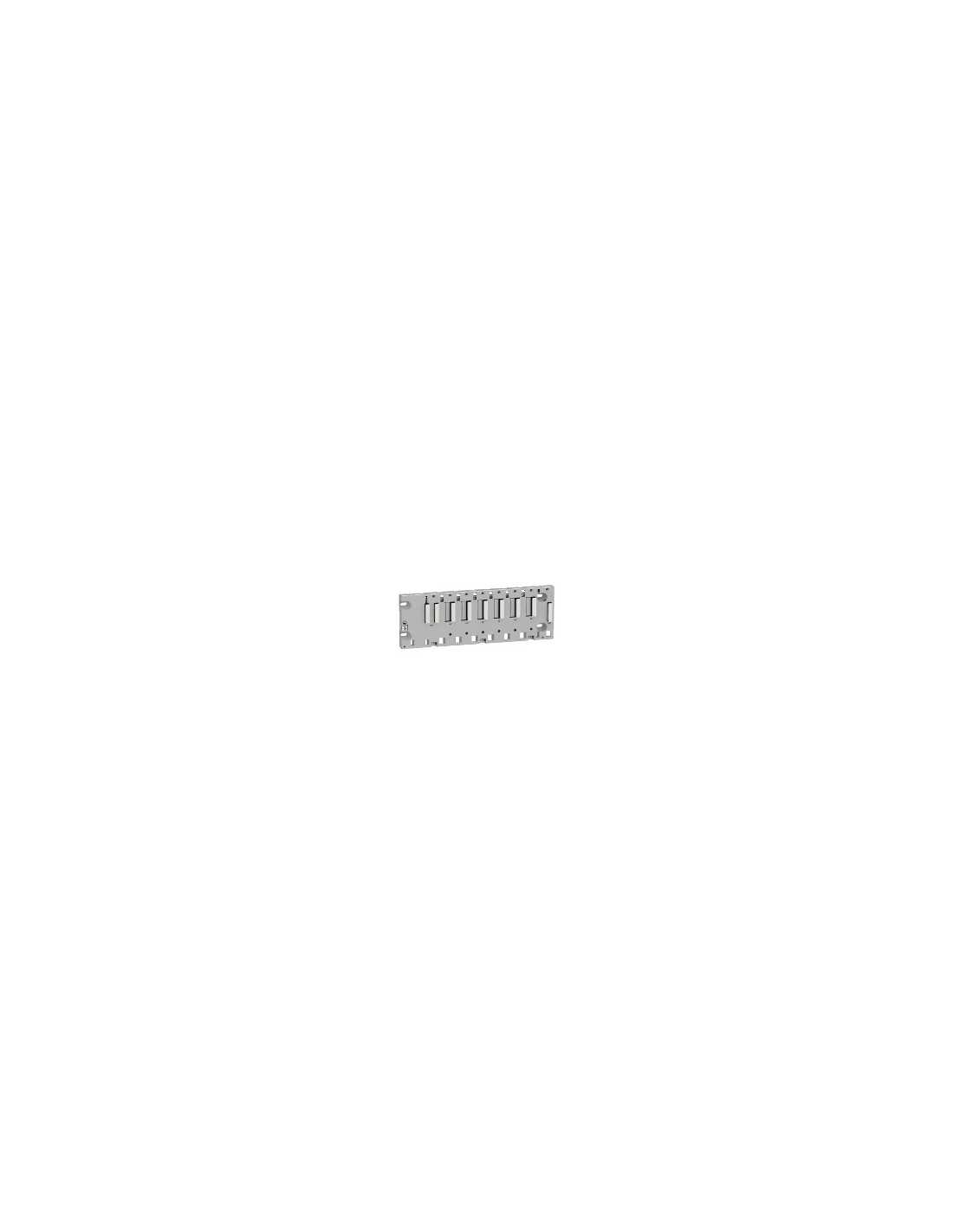

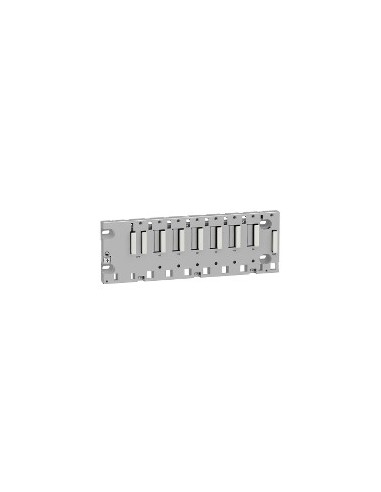

6-position rack frame for Modicon M340

Support for the Modicon M340 automatic platform, designed to accommodate up to 6 modules in X slots. Compatible with BMXP34 processors, I/O modules, specific application modules and BMXCPS power supplies. Ideal for industrial installations that require modular and scalable configuration.

Technical characteristics

• Number of slots: 6 bus X
• Product compatibility: Processor BMXP34, I/O Module, Specific Application Module, BMXCPS Power Supply
• Power consumption: 1,5 W
• Expansion connector: 1 connector (XBE) expansion module
• Fixing mode: With 4 screws - diameter: 4.32...6.35 mm, panel mounting using 4 M6 parafuses, plate mounting using clips, symmetric DIN rail mounting of 35 mm
• Weight of product: 0.79 kg
• Degree of protection: IP20
• Operating ambient temperature: 0...60 °C
• Relative humidity: 10...95 % without condensation
• Protection treatment: TC
• Sustainable supply status: Product Green Premium
• According to REACh without SVCC: Yes
• EU RoHS Directive: Proactive compliance (out-of-scope product of RoHS EU)
• No mercury: Yes
• Information on RoHS exemptions: Yes
• RoHS China Regulations: X
• WEEE: On the European Union market, the product must be disposed of in accordance with a specific waste collection system and never end up in a waste container
