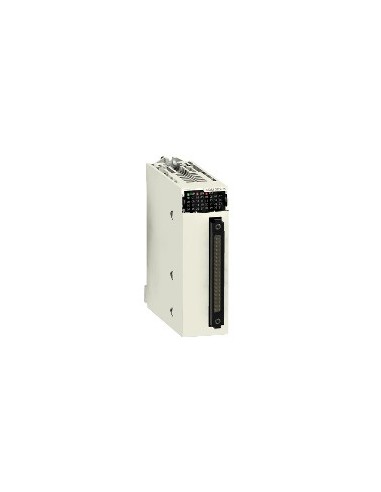

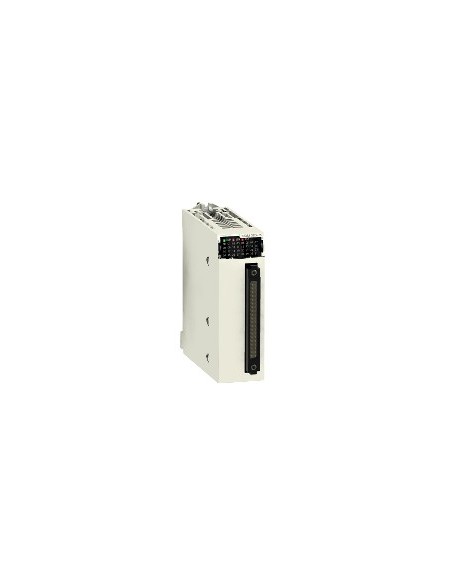

Discrete I/O Module 16 Inputs 16 Outputs 24 V DC

Discreet I/O module from the Modicon X80 range, designed for industrial applications requiring precise control of digital signals. It has 16 discrete inputs and 16 outputs, compatible with proximity sensors 2/3 cables according to IEC 60947-5-2 and IEC 61131-2 type 1. It works with a positive 24 V DC input voltage and offers an input current of 2.5 mA per channel.

Technical characteristics

• Number of digital entries: 16
• Type of entry: Current collector (positive logic)
• Input voltage: 24 V DC positive
• Discreet input current: 2,5 mA
• Number of discrete outputs: 16
• Digital output type: Solid state
• Output voltage: 24 V DC (range 19...30 V DC)
• Digital output current: 0.1 A
• Input impedance: 9600 Ohm
• Insulation resistance: > 10 MOhm at 500 V DC
• Dissipated power: 4 W
• Typical filter time: 4 ms
• Maximum filter time: 7 ms
• Response time in output: 1,2 ms
• Output parallel: Yes (up to 3 max.)
• Typical current consumption: 69 mA to 24 V DC
• Reliability MTBF: 650614 h
• Degree of protection: IP20
• Weight: 0.11 kg
• Operating ambient temperature: 0...60 °C
• Storage ambient temperature: -40...85 °C
• Relative humidity: 5...95 % at 55 °C without condensation
• Maximum operating altitude: 0...2000 m (up to 5000 m with reduction)
• Directives: 2014/35/EU (low voltage), 2014/30/EU (EMC)
• Protection: external fuse 0.5 A, transyl diode, current limiter, reverse polarity protection in input and output
• Status LED: RUN (green), diagnostic channel (green), ERR (red), I/O module (red)
