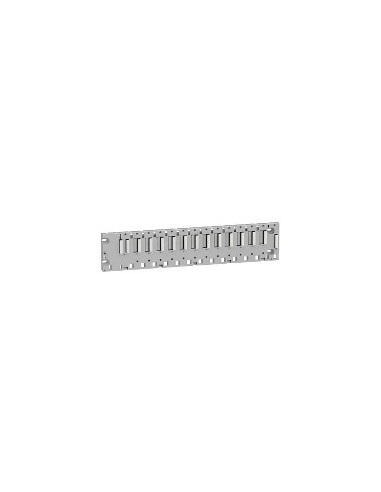

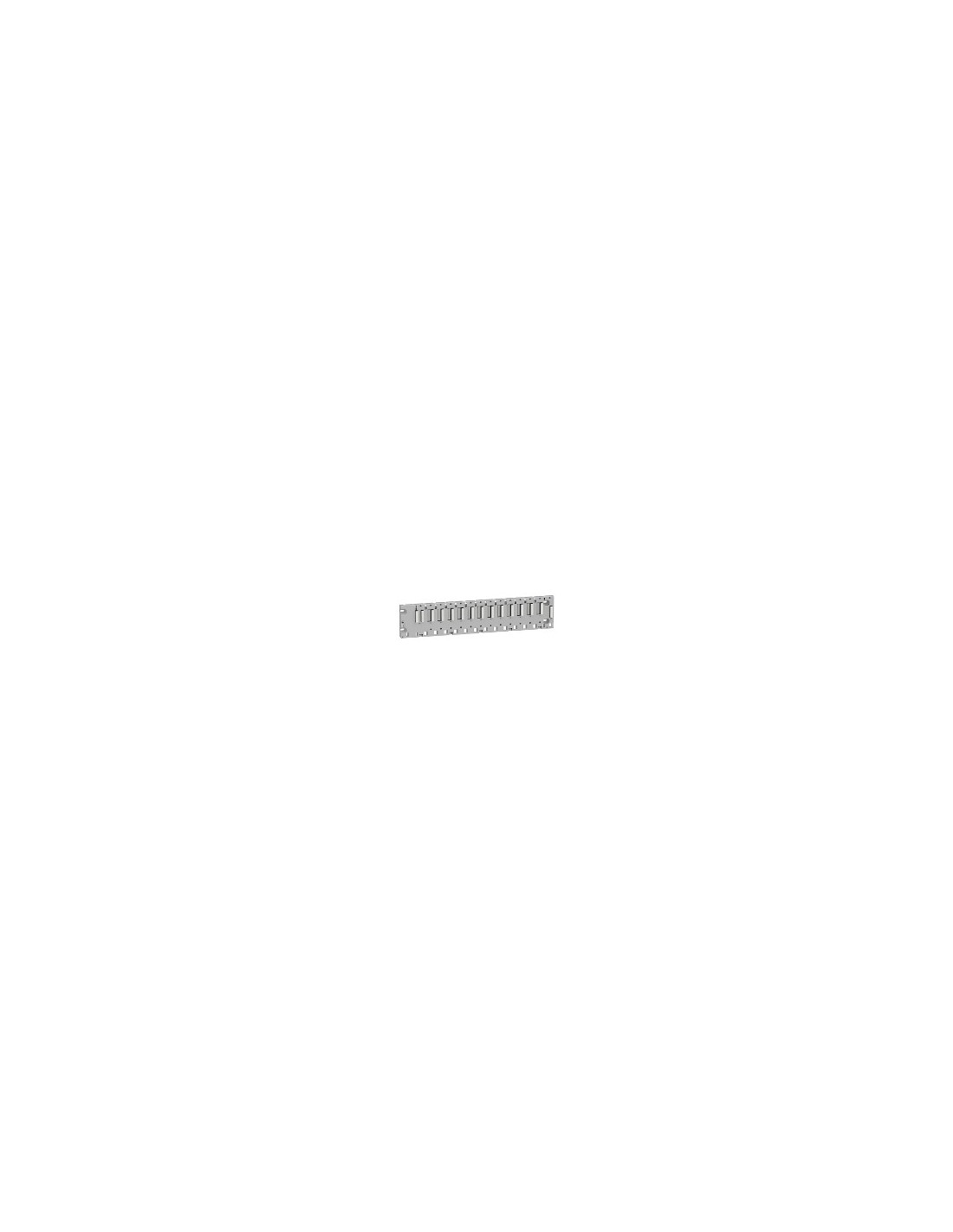

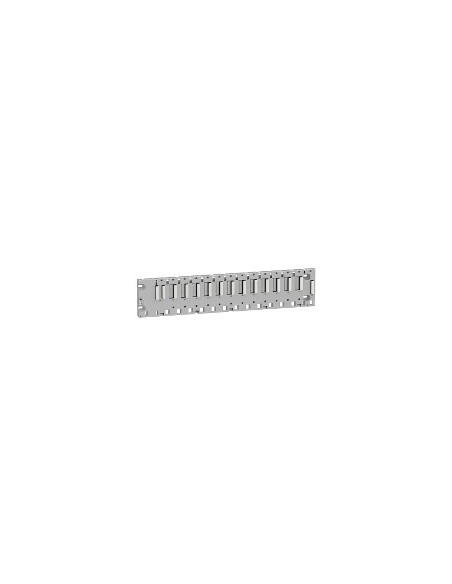

Rack frame 12 positions for Modicon M340

12 slot frame for the Modicon M340 automatic platform, designed to accommodate compatible input/output modules, processors and power supplies. Ideal for industrial installations that require modular and scalable configuration.

Technical characteristics

• Number of slots: 12 bus X
• Product compatibility: Module I/O, Processor BMXP34, Specific Application Module, Power Supply BMXCPS
• Power consumption: 0.74 W
• Expansion connector: 1 connector (XBE) expansion module
• Fixing mode: With 4 screws - diameter: 4,32...6,35 mm, panel mounting for 4 M6 parafuses, plate mounting
• Weight of product: 1,27 kg
• Degree of protection: IP20
• Operating ambient temperature: 0...60 °C
• Relative humidity: 10...95 % without condensation
• Protection treatment: TC
• Sustainable supply status: Product Green Premium
• According to REACh without SVCC: Yes
• EU RoHS Directive: Proactive compliance (out-of-scope product of RoHS EU)
• No mercury: Yes
• Information on RoHS exemptions: Yes
• RoHS China Regulations: X
• WEEE: On the European Union market, the product must be disposed of in accordance with a specific waste collection system and never end up in a waste container
