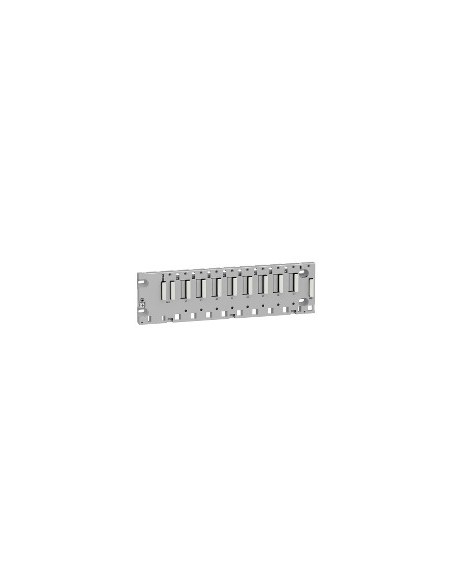

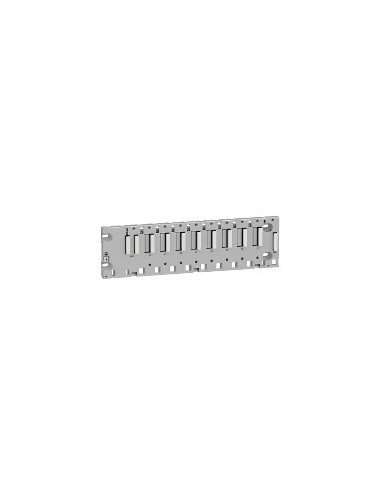

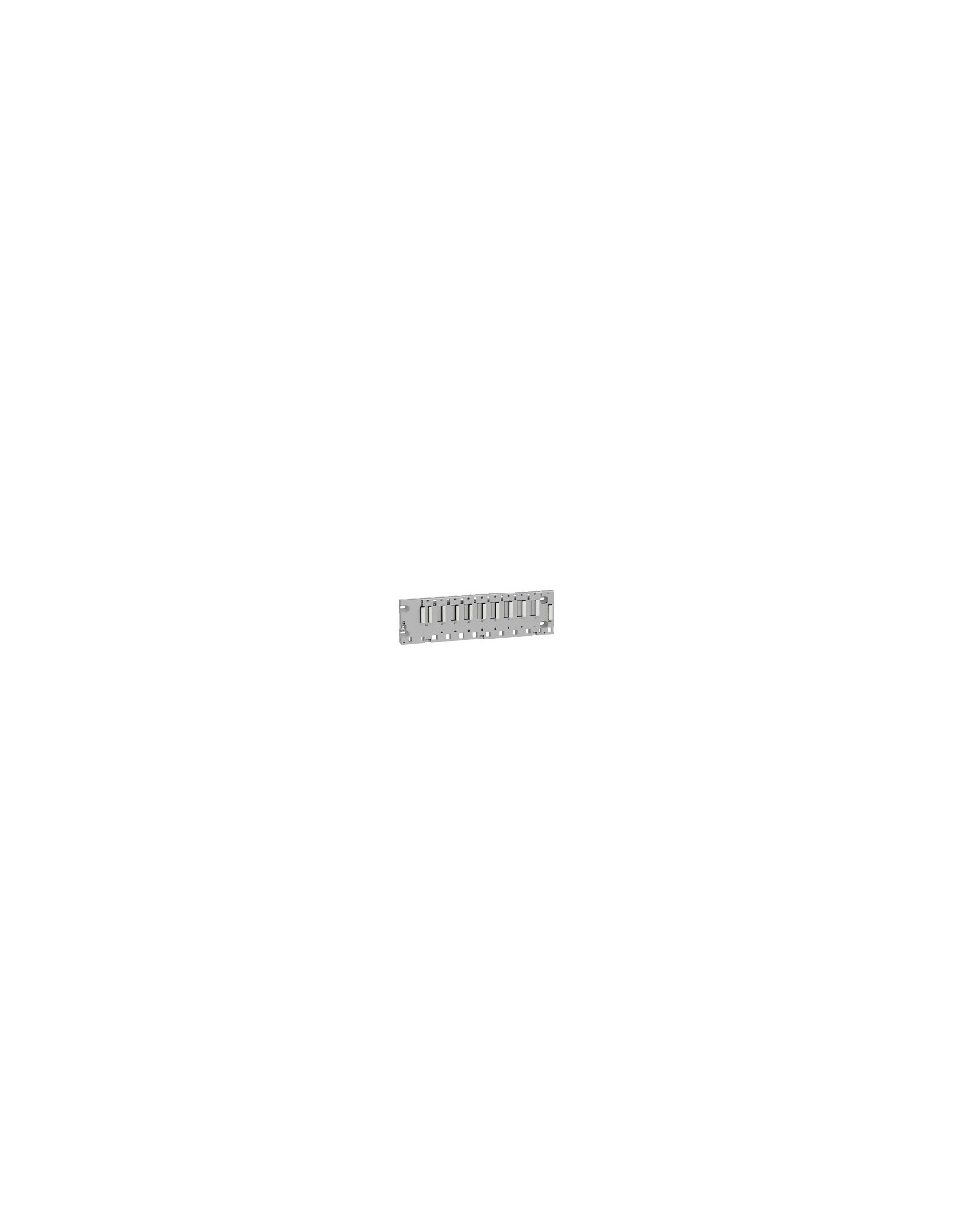

Rack frame 8 slots for Modicon M340

Stand for the Modicon M340 automatic platform, designed to accommodate up to 8 modules in an industrial control system. Compatible with I/O modules, BMXP34 processors, BMXCPS power supplies and specific application modules. Ideal for industrial environments where modular and scalable configuration is required.

Technical characteristics

• Number of slots: 8 bus X
• Product compatibility: Module I/O, Processor BMXP34, Feed Source BMXCPS, Specific Application Module
• Power consumption in W: 2 W
• Consecutive, followed, continuous, attached: 1 connector (XBE) expansion module
• Fixing mode: With 4 screws - diameter: 4,32...6,35 mm, panel mounting By 4 M6 parafuses, plate mounting By clips, 35 mm symmetrical DIN rail mounting
• Product weight: 0.95 kg
• Degree of IP protection: IP20
• Operating ambient temperature: 0...60 °C
• Relative humidity: 10...95 % without condensation
• Protection treatment: TC
• Sustainable supply status: Product Green Premium
• REACh Regulation: Reference does not contain SVHC
• According to REACh without SVCC: Yes
• EU RoHS Directive: Proactive compliance (out-of-scope product of RoHS EU)
• No mercury: Yes
• Information on RoHS exemptions: Yes
• RoHS China Regulations: X
• WEEE: On the European Union market, the product must be disposed of in accordance with a specific waste collection system and never end up in a waste container
