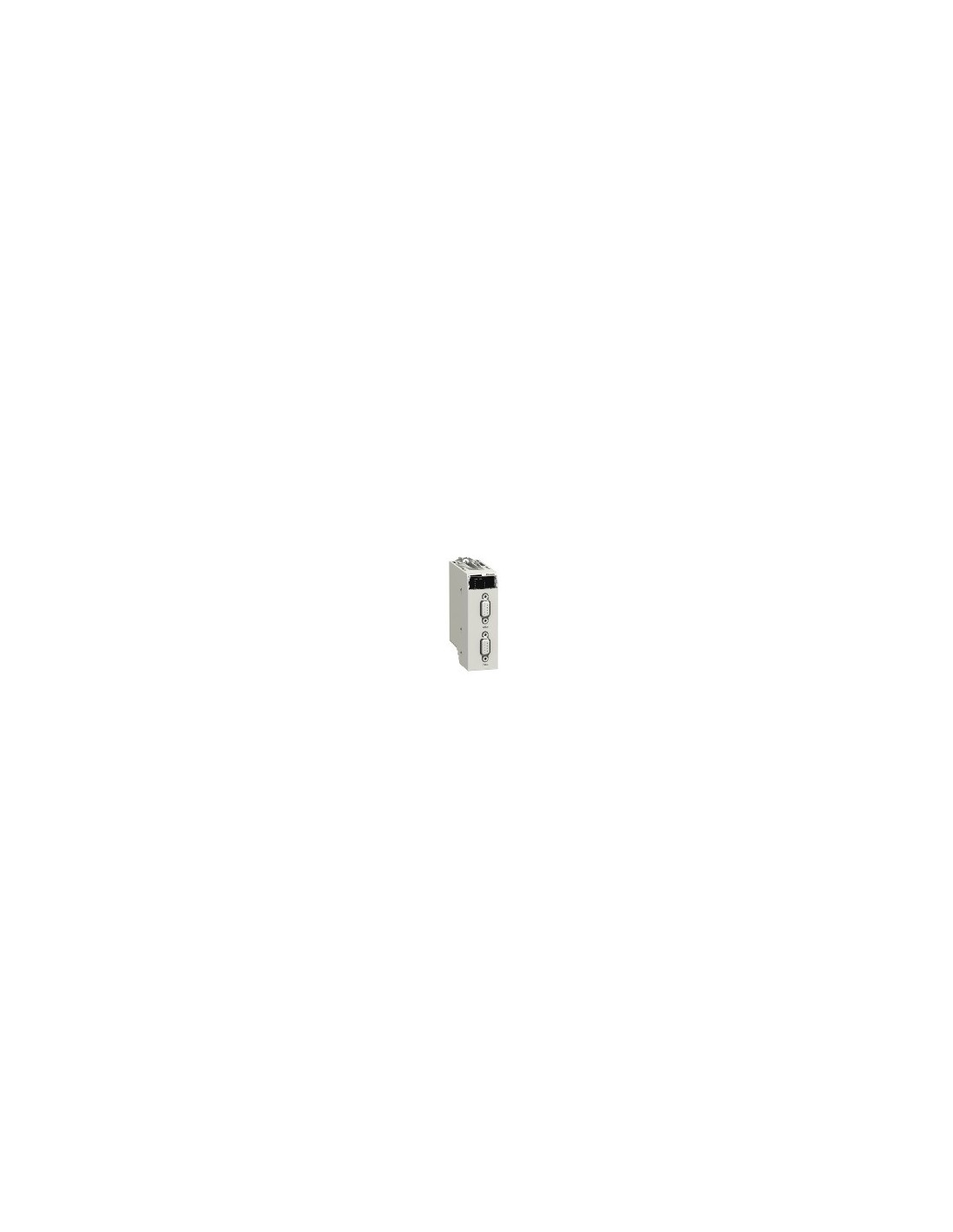

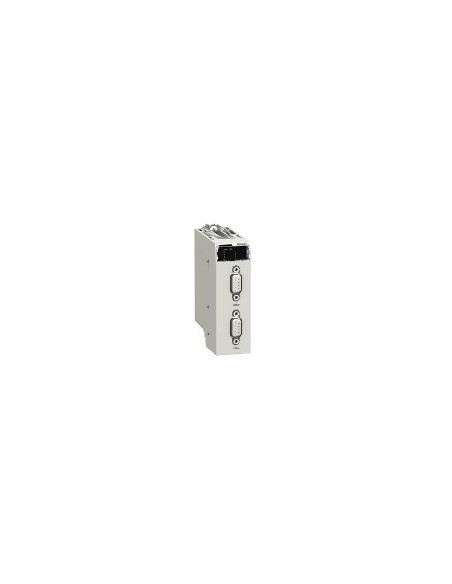

Modicon M340 Chassis Extension Module

M340, Frame Extension Module for the Modicon M340 automatic platform, designed to expand multi-rack configuration. It is used as a back panel extender, facilitating integration into industrial automation systems with multiple units.

Technical characteristics

• Compatibility: BMXXBP0600, BMXXBP0400, BMXXBP0800, BMXXBP1200
• Connectors: 2 female connectors SUB-D 9
• Local indicators: 1 green LED (RUN) for barrage status, 1 red LED (COL) for collision error, 4 green LEDs for rack address status
• Current consumption: 160 mA to 24 V DC, 22 mA to 3.3 V DC
• Format: Standard
• Degree of protection: IP20
• Operating ambient temperature: 0...60 °C
• Relative humidity: 10...95 % without condensation
• Directives: 2014/35/EU (low voltage), 2014/30/EU (EMC)
• Certifications: CE, UL, CSA, RCM, Merchant Navy Generator
• Standards: EN 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3
• Environmental characteristics: Hazardous Places Class I Division 2
• Protection treatment: TC
• Sustainable supply status: Product Green Premium
• According to REACh without SVCC: Yes
• EU RoHS Directive: Proactive (out-of-scope) compliance
• No mercury: Yes
• RoHS exemptions: Yes
• RoHS China Regulations: X
