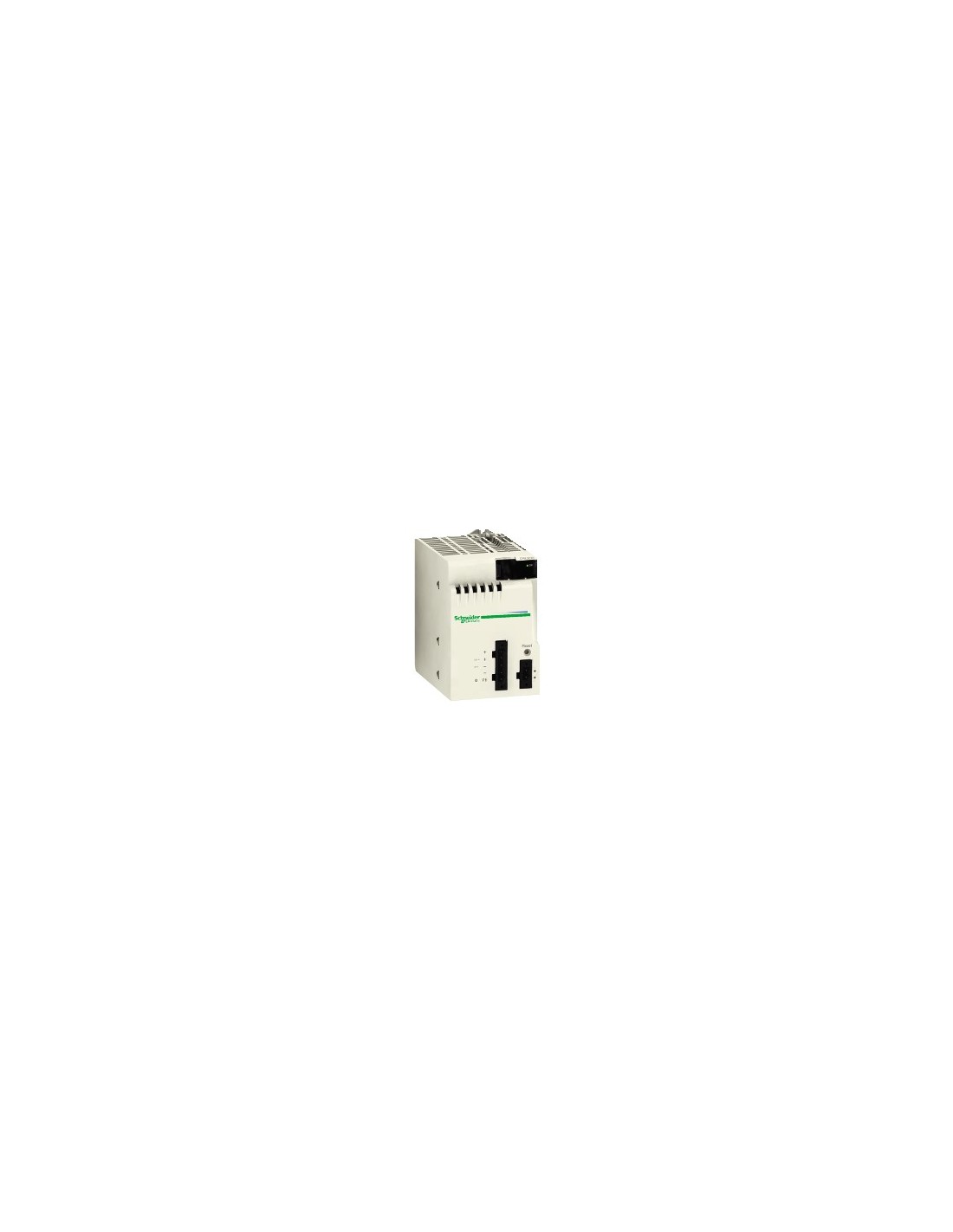

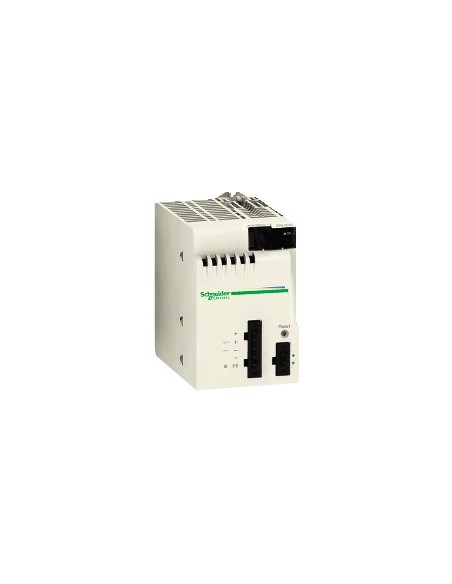

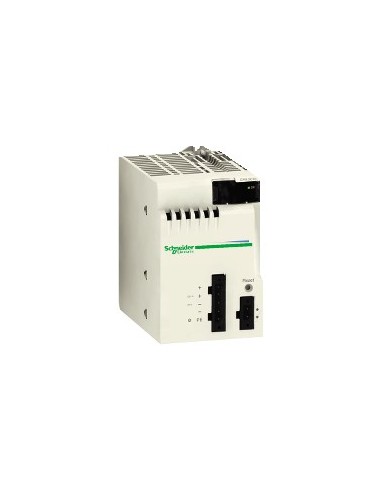

Isolated 24 V DC Power Supply Module

Isolated power supply module designed for Modicon X80 systems, with 24 V DC input and 16.8 W output at 24 V DC for processor and I/O modules, and 8.3 W output at 3.3 V DC for logic power. Provides stable power in industrial automation environments, compatible exclusively with the Modicon X80 range and not compatible with BMEXBP..02.

Technical Features

• Primary voltage: 24 V isolated
• Power supply type: DC
• Secondary power: 16.8 W at 24 V DC (processor and I/O module power supply), 8.3 W at 3.3 V DC (I/O module logic power supply)
• Input current: 1 A at 24 V
• Secondary current: 0.7 A at 24 V DC, 2.5 A at 3.3 V DC
• I²t at activation: 0.6 A²·s at 24 V
• It at activation: 0.15 A·s at 24 V
• Protection: Internal non-accessible fuse in primary circuit; overcurrent, overvoltage, and short-circuit protection in secondary circuit
• Insulation resistance: ≥ 10 MΩ between primary and ground, ≥ 10 MΩ between primary and secondary
• Dielectric strength: 1500 V between primary and ground, 1500 V between primary and secondary
• Vibration resistance: 3 gn
• Shock resistance: 30 gn
• Protection rating: IP20
• Operating ambient temperature: 0…60 °C
• Storage ambient temperature: -40…85 °C
• Relative humidity: 5…95 % at 55 °C without condensation
• Maximum operating altitude: up to 2000 m, with derating above 2000 m
• Maximum power dissipation: 8.5 W
• Weight: 0.29 kg
• Status LED: Rack voltage OK, 1 green cable-type LED
• Control: Cold restart via REPOR push button
• Connections: 1 two-pin connector (alarm relay), 1 five-pin connector (line power, protective earth, 24 V DC input sensor)
• Maximum cable run: 20 m with 1.5 mm² copper cable, 30 m with 2.5 mm² copper cable
• Directives: 2014/35/EU (Low Voltage), 2014/30/EU (EMC)
• Sustainable offering status: Green Premium product
• REACH Regulation: Does not contain SVHC
• EU RoHS Directive: Proactive compliance (outside the scope of EU RoHS regulation)
• Mercury-free: Yes
• RoHS exemptions: Yes
• China RoHS Regulation: X
• WEEE: Must be disposed of according to specific collection system in the EU, not in regular waste containers
