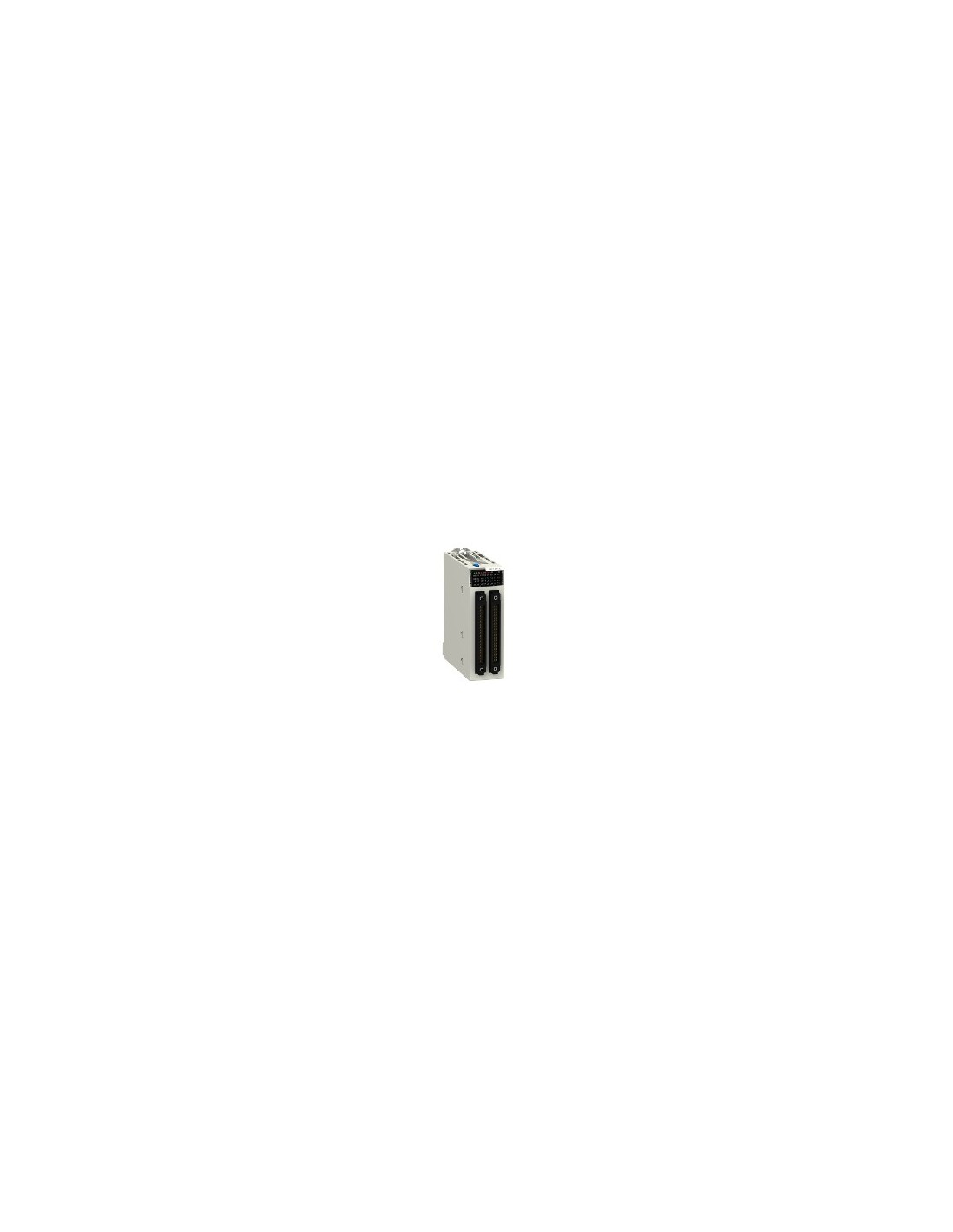

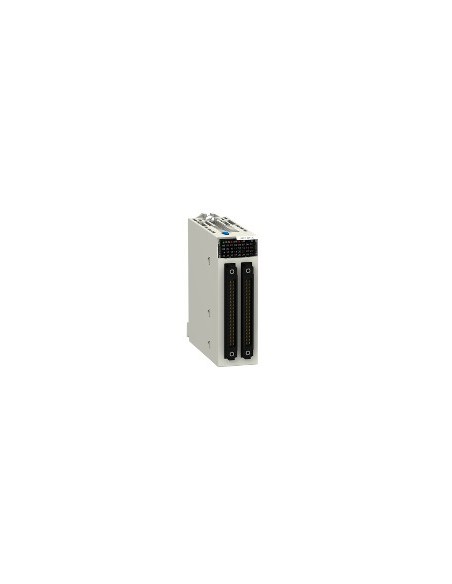

8-channel isolated analog input module designed for Modicon X80 systems, compatible with voltages, resistances, and temperature sensors such as Pt100, Pt1000, Ni100, Ni1000, and thermocouples. Offers isolation between inputs and output, ideal for industrial applications requiring precision in environments with electromagnetic interference.
Technical features
- Number of analog inputs: 8
- Connections: 40 pins, 2 connectors
- Isolation: Isolated
- Input level: Low level
- Analog input type: Voltage ±1.28 V, ±160 mV, ±320 mV, ±40 mV, ±640 mV, ±80 mV; Resistance 400 Ohm (2, 3, 4 wires); Resistance 4000 Ohm (2, 3, 4 wires); Temperature probes: Cu 10 (-100...+260 °C), Pt 100 (-100...+450 °C, UL/JIS), Pt 1000 (-100...+450 °C, UL/JIS), Pt 100 (-200...+850 °C, IEC), Pt 1000 (-200...+850 °C, IEC), Ni 100 (-60...+180 °C), Ni 1000 (-60...+180 °C); Thermocouples: B (+130...+1820 °C), N (+270...+1300 °C), U (-200...+600 °C), J (-200...+760 °C), L (-200...+900 °C), E (-270...+1000 °C), K (-270...+1370 °C), T (-270...+400 °C), R (-50...+1769 °C), S (-50...+1769 °C)
- Analog-to-digital conversion: 16-bit sigma delta
- Analog input resolution: 15 bits + sign
- Overload tolerance: ±7.5 V, ±1.28 V, ±160 mV, ±320 mV, ±40 mV, ±640 mV, ±80 mV
- Common-mode rejection: 120 dB at 50/60 Hz
- Differential-mode rejection: 60 dB at 50/60 Hz
- Cold junction compensation: External via Pt100 sensor
- Filter type: First-order digital
- Typical reading time: 400 ms with temperature probe, 200 ms with thermocouple
- Measurement error: ±0.7 °C (Ni 1000, 25 °C), ±2 °C (Pt 100, 0...60 °C), ±2.1 °C (Pt 1000, 25 °C), ±2.7 °C (thermocouple U, 25 °C), ±3.7 °C (thermocouple K, 25 °C), ±4.5 °C (thermocouple J, 0...60 °C), ±5 °C (thermocouple B, 0...60 °C), ±0.05% full scale (voltage), ±0.12% full scale (400 Ohm, 4000 Ohm)
- Temperature drift: 25 ppm/°C (400 Ohm, 4000 Ohm, Ni 1000, thermocouples), 30 ppm/°C (voltage, Cu 10, Ni 100, Pt 100, Pt 1000)
- Recalibration: Internal
- Open circuit detection: Cu 10, Ni 100, Ni 1000, Pt 100, Pt 1000, thermocouples B, E, J, K, L, N, R, S, T, U
- Maximum cable resistance: 20 Ohm (2 wires, Cu 10, Ni 100, Pt 100), 200 Ohm (2 wires, Ni 1000, Pt 1000), 50 Ohm (4 wires, Cu 10, Ni 100, Pt 100), 500 Ohm (4 wires, Ni 1000, Pt 1000)
- Measurement resolution: 0.1 °C (Cu 10, Ni 100, Ni 1000, Pt 100, Pt 1000, thermocouples B, E, J, K, L, N, R, S, T, U)
- Maximum conversion value: ±100% (400 Ohm, 4000 Ohm), ±102.5% (voltage), ±102.5% (resistance)
- Maximum operating altitude: 0...2000 m, 2000...5000 m with
- Status LEDs: RUN (green), Channel diagnostic (green), ERR (red), I/O (red)
- Weight: 0.165 kg
- Power consumption: 150 mA at 3.3 V DC
- Vibration resistance: 3 gn
- Shock resistance: 30 gn
- Operating ambient temperature: 0...60 °C
- Storage temperature: -40...85 °C
- Relative humidity: 5...95% at 55 °C without condensation
- Protection rating: IP20
- Directives: 2014/35/EU (Low Voltage), 2014/30/EU (EMC)
- Certifications: CE, UL, CSA, Merchant Navy, RCM
- Standards: EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201
- Environmental characteristics: 3C3, 3C4 (in accordance with EN/IEC 60721-3-3)
- Sustainable offering status: Green Premium product
- REACH: No SVHC
- RoHS: Proactive compliance (outside scope), no mercury, exemptions applied
- Waste disposal: Disposal via specific system, not in regular trash
