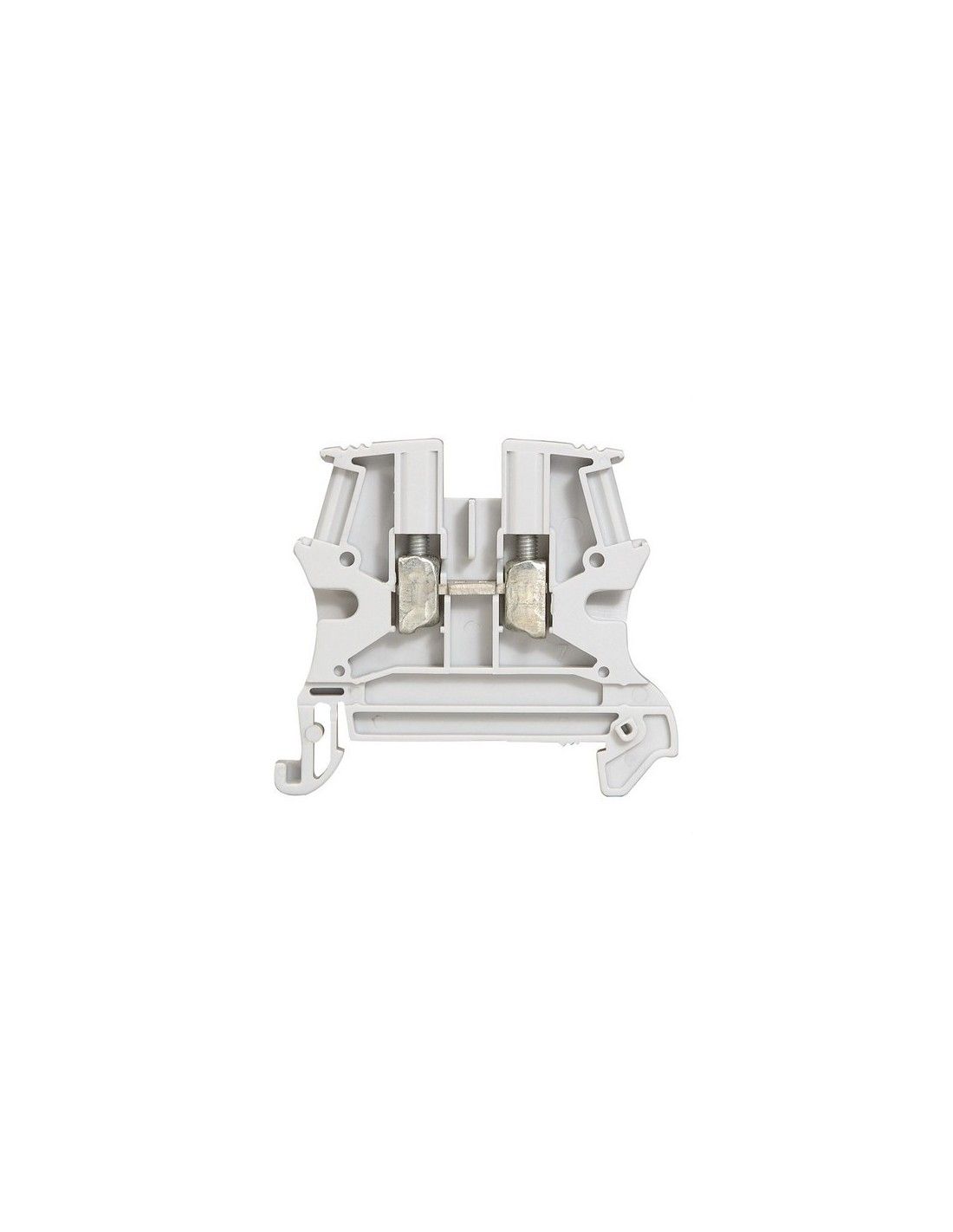

LEGRAND 037162 | VIKING3 terminal block 6mm²

VIKING3 terminal block 6mm2. Through
Grey for standard circuit, blue for neutral conductor, orange for circuit not cut by the general disconnecting device, red for specific circuits (safety, protected, etc.), green for class II equivalent protection circuit 1 union
1 input/1 output
Colour: Grey
Nominal section: 6 mm²
Rigid conductor capacity: 0.5 to 10 mm²
Flexible conductor capacity with or without terminal: 0. 25 to 6 mm²
Pitch: 8 mm. Viking™ 3 screw connection terminal blocks
for copper cable
They allow to ensure the electrical connection between 2 flexible copper conductors (with or without terminal) or rigid
2 zones for equipotential interconnection combs with automatic insertion up to 8 mm pitch (upper deck only for multi-storey blocks)
For symmetrical rails depth 15 mm, symmetrical EN 60715 depth 7.5 mm and 15 mm.
