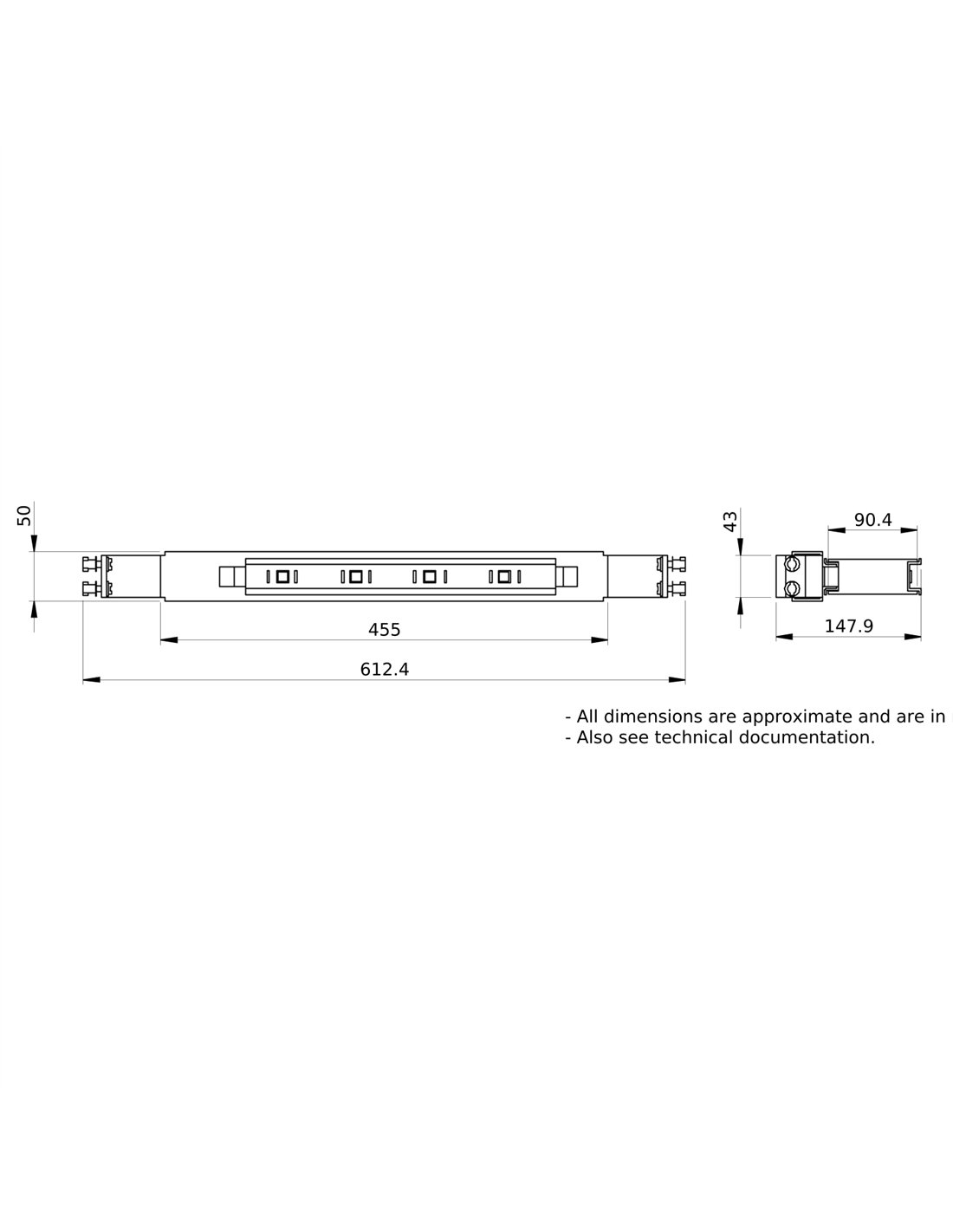

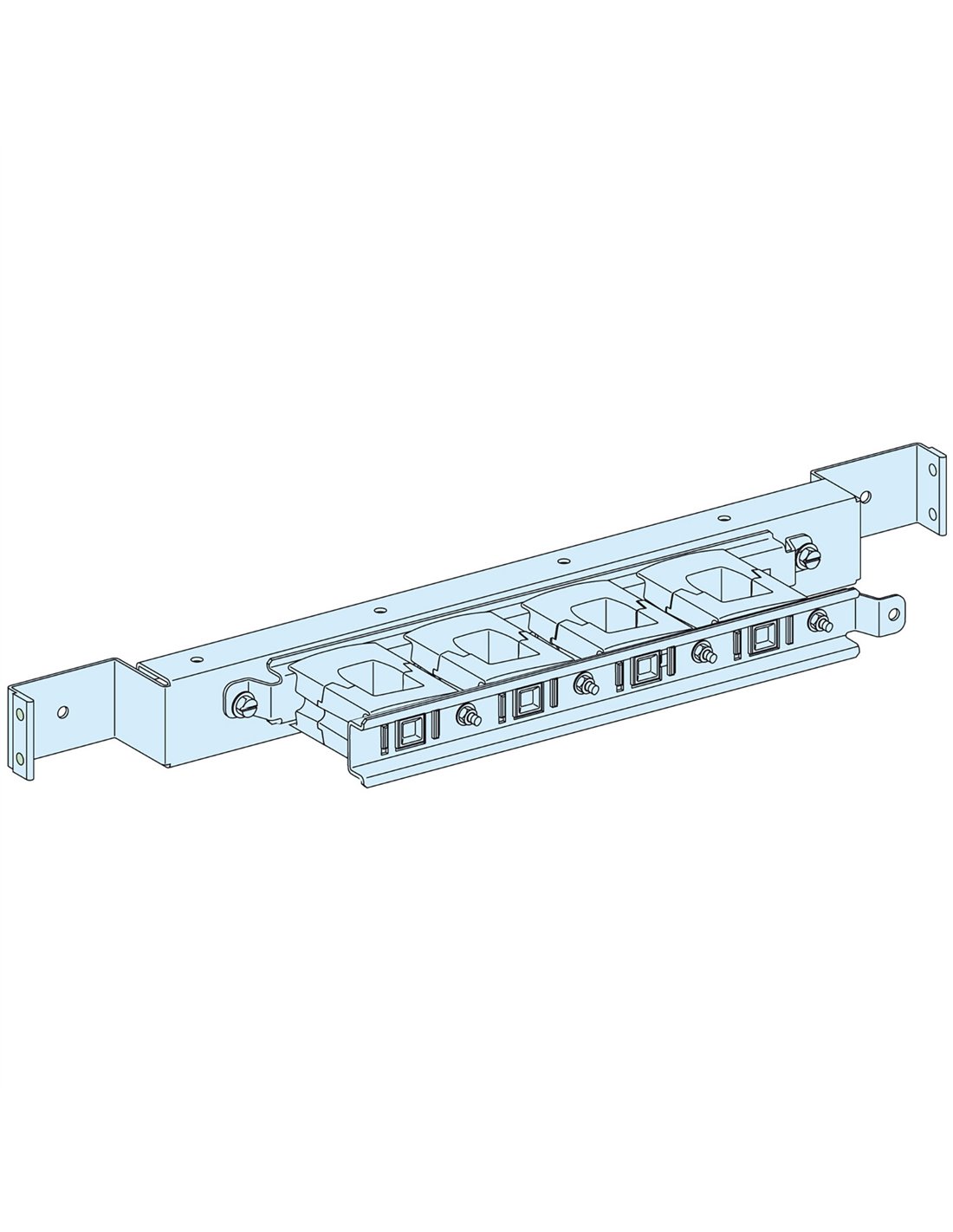

LINERGY LGY busbar support, 650 mm wide, includes mounting hardware

Available In stock 10 Items Reference IMPO LVS04652
€135.82
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
The Linergy LGY busbar support bracket is designed for vertical installation in cabinet backs, ensuring efficient and secure device connections. Compatible with the Linergy and PrismaSeT P ranges, it complies with IEC 61439-1 and IEC 61439-2 standards, guaranteeing optimal performance in industrial environments.

Description

The Linergy LGY busbar bracket is an essential component for installing electrical distribution systems in cabinets. Designed for vertical use, this bracket ensures efficient and secure integration in confined spaces, such as the back of cabinets up to 650 mm wide.

  • Range: Linergy
  • Product Type: Busbar Bracket
  • Compatibility: Linergy LGY and PrismaSeT Pack 160
  • Mounting Hardware Included: Class 8.8
  • Device Connection: Rear Linergy busbar bracket
  • Product Weight: 2.76 kg
  • Quantity per Set: 1
  • Standards: IEC 61439-1, IEC 61439-2
  • Certification: ASTA

Product Details

Otras

EAN 3606481867070
Reference IMPO LVS04652
