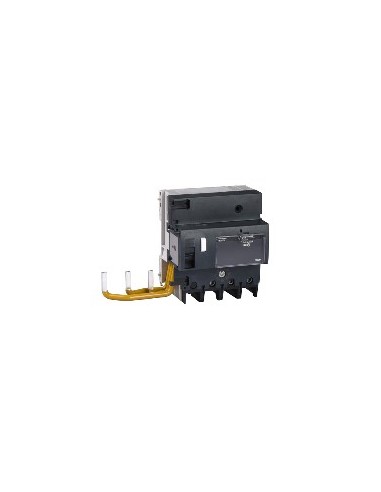

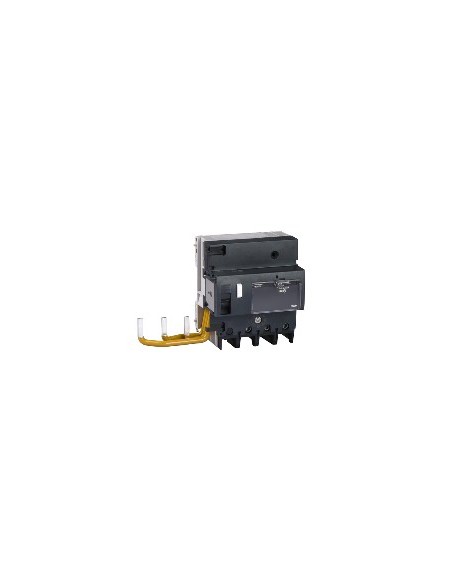

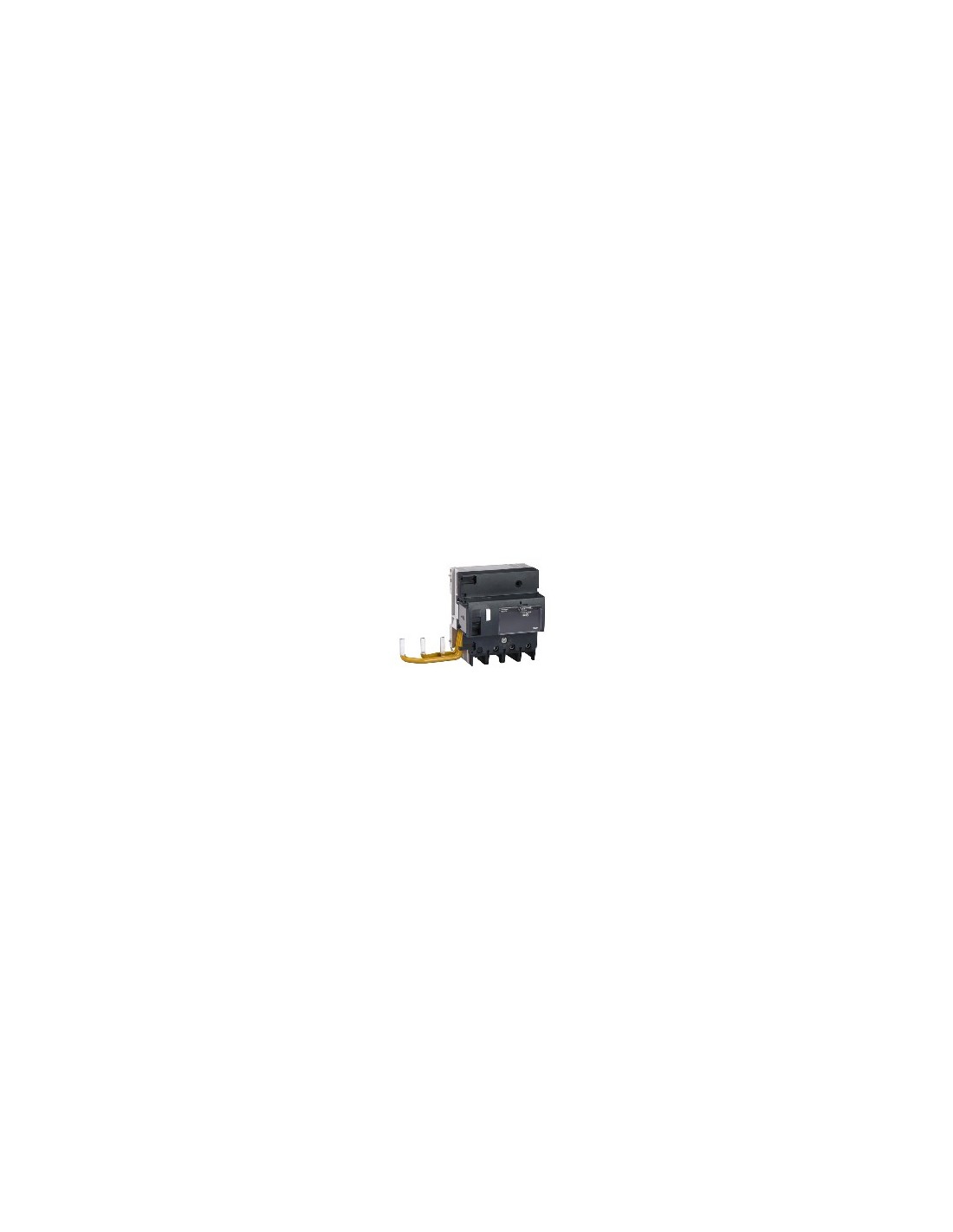

Vigi Block 3P 125A 30mA Instantaneous

3-pole Vigi Block NG125 designed for earth leakage protection in electrical installations of small businesses. Offers 30 mA sensitivity and instantaneous tripping, ensuring rapid response to insulation failures. Operates on AC 50/60 Hz networks with a nominal operating voltage between 230 and 415 V AC, using voltage-independent tripping technology.

Technical Features

• Number of poles: 3P
• Rated current [In]: 125 A
• Network type: AC
• Earth leakage sensitivity: 30 mA
• Protection delay: Instantaneous
• System location: Output
• Network frequency: 50/60 Hz
• Rated operating voltage [Ue]: 230...415 V AC 50/60 Hz
• Residual current tripping technology: Voltage-independent
• Rated insulation voltage [Ui]: 690 V AC 50/60 Hz in accordance with EN> 50 A
• Impulse voltage withstand [Uimp]: 8 kV in accordance with EN> 50 A
• Mounting support: Symmetrical 35 mm DIN rail
• Connection to MCB: By screws
• Spacing: 9 mm
• Height: 118 mm
• Width: 180 mm
• Depth: 81 mm
• Product weight: 0.75 kg
• Electrical durability: 10000 cycles in accordance with EN> 50 A
• Connections - terminals: Tunnel-type terminals 10…50 mm² flexible, Tunnel-type terminals 16…70 mm² rigid
• Stripping length for terminal connection: 20 mm
• Torque: 6 N·m
• Product compatibility: Terminal
• Compatibility code: VLS
• Market segment: Small businesses
• Standards: EN> 50 A
• Protection degree IP: IP40 in accordance with EN> 50 A
• Contamination degree: 3 in accordance with EN> 50 A
• Electromagnetic compatibility: Impulse resistance 8/20 µs, 3000 A in accordance with EN> 50 A
• Tropicalization: 2 in accordance with IEC 60068-1
• Relative humidity: 95 % at 55 °C
• Maximum operating altitude: 2000 m
• Sustainable offering status: Green Premium product
• REACH Regulation: Reference does not contain SVHC
• EU RoHS Directive: Compliant
• Mercury-free: Yes
• RoHS exemption information: Yes
• China RoHS regulation: Product outside the scope of China RoHS. Substance declaration information
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and must never end up in a general waste bin
