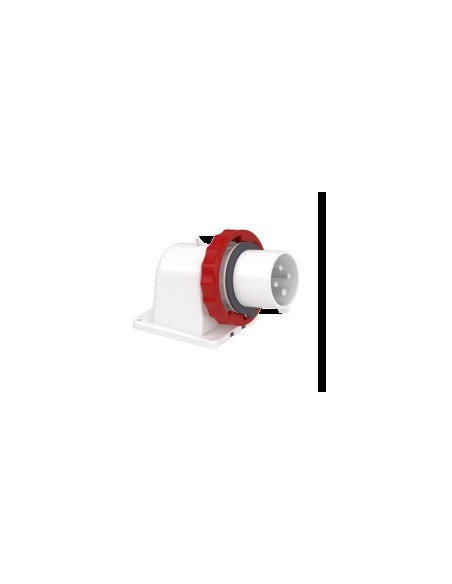

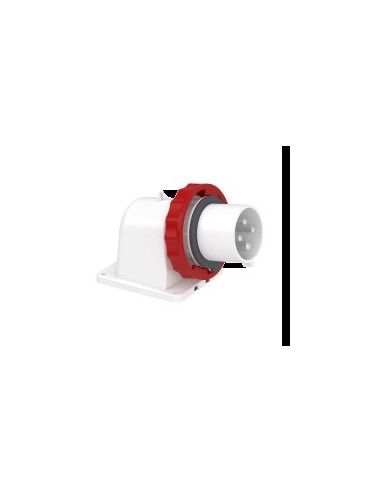

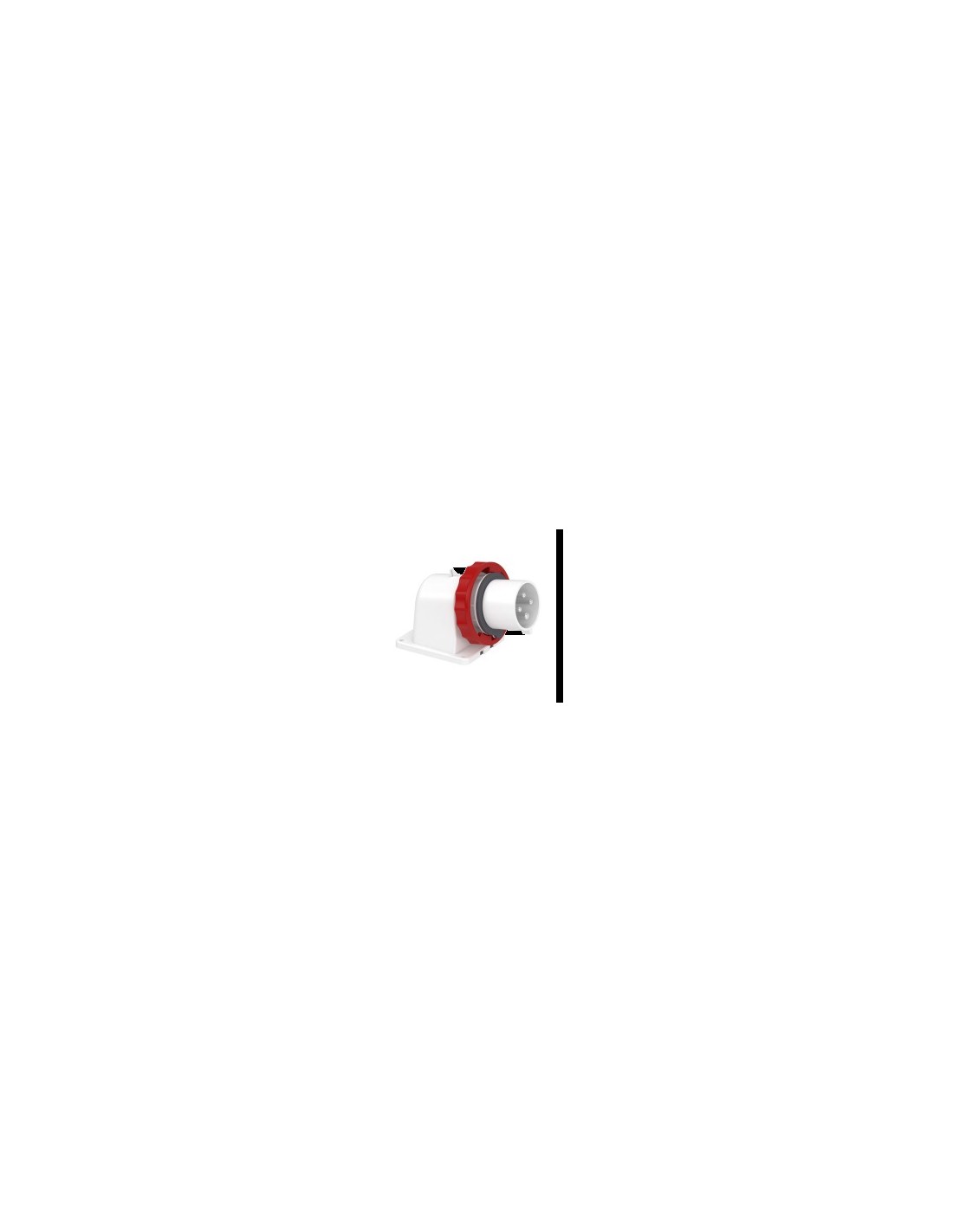

Wall Mount Plug 32 A 3P IP67 90°

Wall-mount PratiKa-type plug, designed for industrial applications in demanding environments. Compatible with the PratiKa plug system, providing secure and durable connection in low-voltage installations with nominal current of 32 A and voltage of 380...415 V AC. Its 90° angled design facilitates connection in limited spaces.

Technical Features

• Number of poles: 3P+E
• Power supply type: AC
• Rated current: 32 A
• Rated operating voltage: 380...415 V
• Supply frequency: 50/60 Hz
• Earth terminal position: 6 o'clock
• Socket and plug material: Engineering self-extinguishing polymer
• Contact material: Nickel-plated brass
• Connections: Non-loosening screws
• Cable cross-section: 2.5…10 mm²
• Protection rating: IP67 according to IEC 60529
• IK protection rating: IK08 according to EN 62262
• Fire resistance: 850 °C according to IEC 60695-2-1
• Operating ambient temperature: -25…40 °C
• Maximum operating altitude: 2000 m
• Relative humidity: 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
• Color: Grey (RAL 7035)
• Voltage color code: Red
• Product weight: 0.333 kg
• Dimensions: 91 x 100 mm (base), 159 mm (height), 90 mm (width), 112 mm (depth)
• Standards: EN 60309-1, EN 60309-2
• Market segment: Small businesses
• Sustainable offering status: Green Premium product
• EU RoHS Directive: Proactive compliance (outside scope)
• China RoHS Regulation: Outside scope
• Contains SVHC above threshold
• Mercury-free
