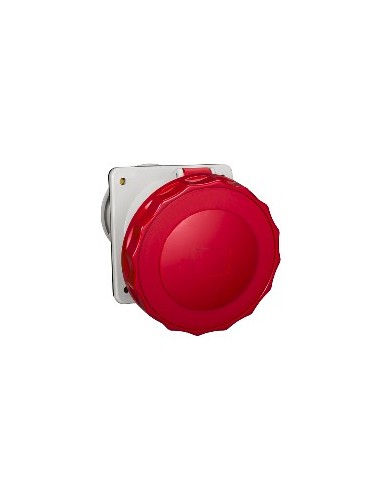

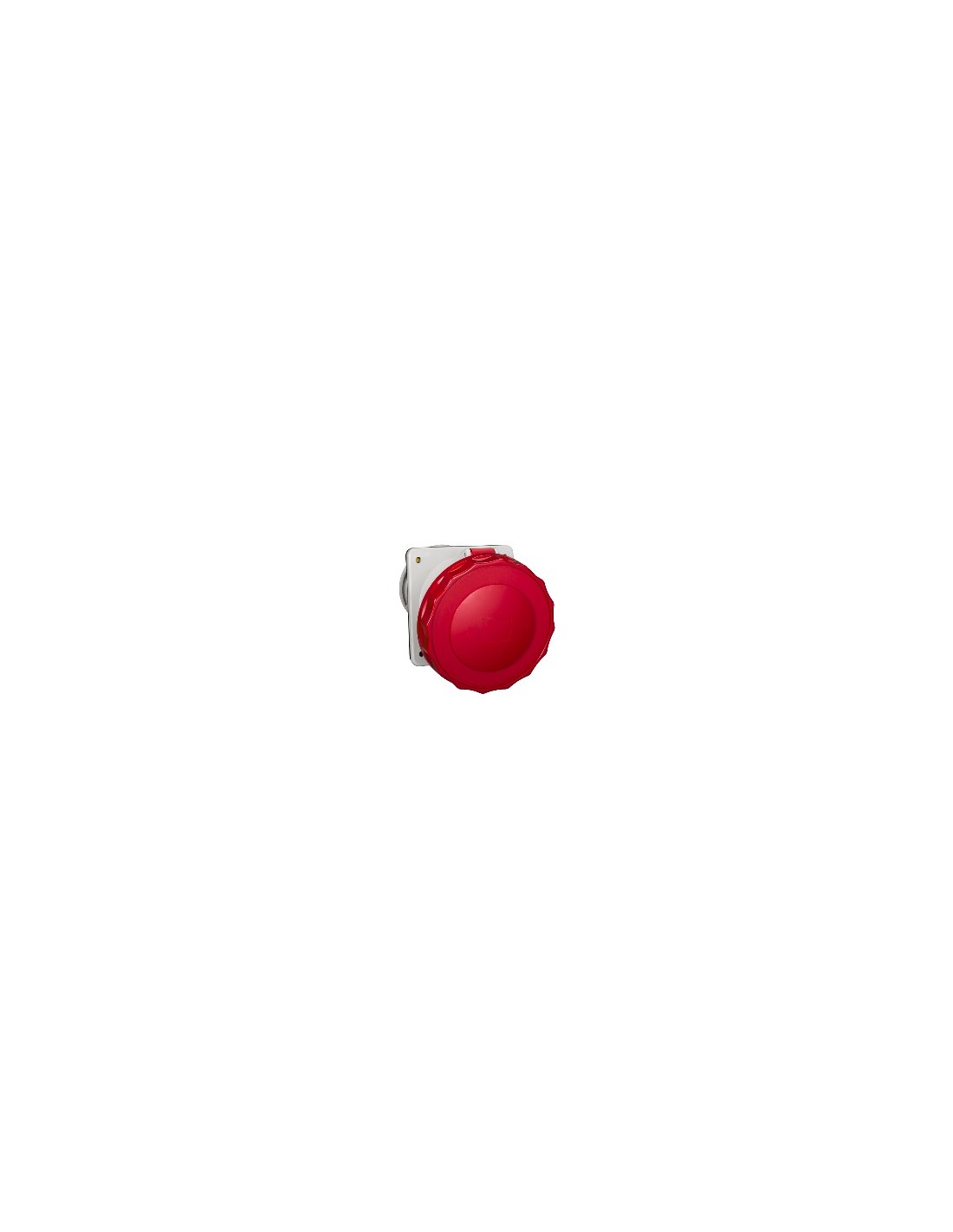

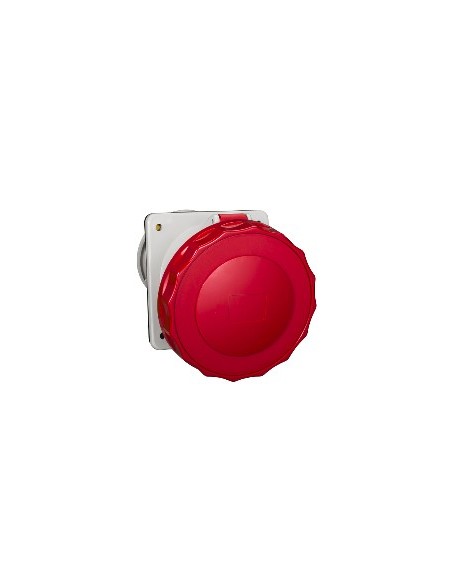

Industrial angled socket 125 A 3P+E IP67

Recessed base with angled outlet from the PratiKa range, designed for industrial low-voltage applications. Ideal for secure and durable connections in fixed installations, especially in small businesses. Its robust structure and IP67 protection ensure reliable operation under adverse conditions.

Technical features

• Number of poles: 3P+E
• Network type: AC
• Rated current: 125 A
• Rated operating voltage: 380...415 V
• Supply frequency: 50/60 Hz
• Earth terminal position clockwise: 6 h
• Housing material: Engineering self-extinguishing polymer
• Contact material: Stainless steel pins and springs, nickel-plated brass sleeves
• Connections: Captive screws, fully loosened
• Cable section: 16…70 mm²
• Protection rating IP: IP67 according to IEC 60529
• IK protection rating: IK08 according to EN 62262
• Fire resistance: 850 °C according to IEC 60695-2-11
• Relative humidity: 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
• Operating ambient temperature: 35 °C (86400 s)
• Dimensions: 110 x 114 mm (base), height 114 mm, width 129 mm, depth 166 mm
• Weight: 1.205 kg
• Color: Grey (RAL 7035)
• Voltage color code: Red
• Standards: EN 60309-1, EN 60309-2
• Market segment: Small businesses
• Sustainable offering status: Green Premium product
• REACH Regulation: Contains SVHC above threshold
• EU RoHS Directive: Proactive compliance (outside scope)
• China RoHS: Outside scope
• Mercury-free: Yes
• RoHS exemptions: Yes
