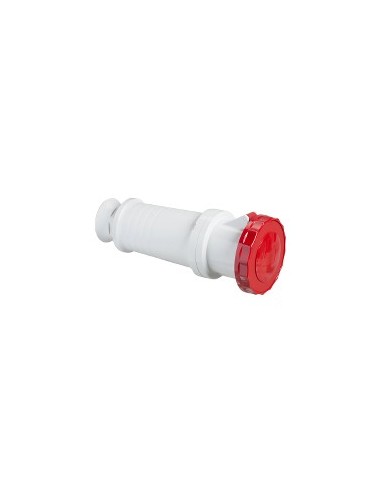

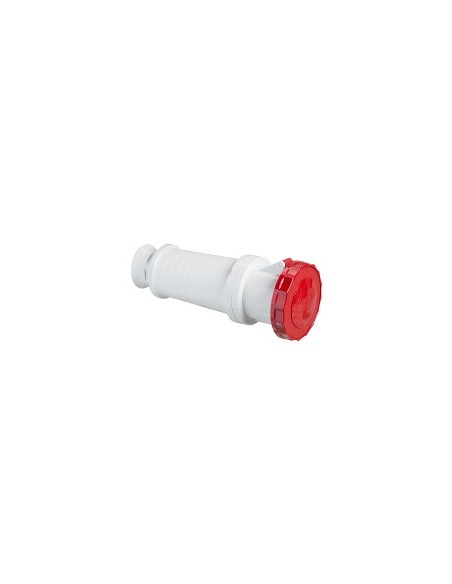

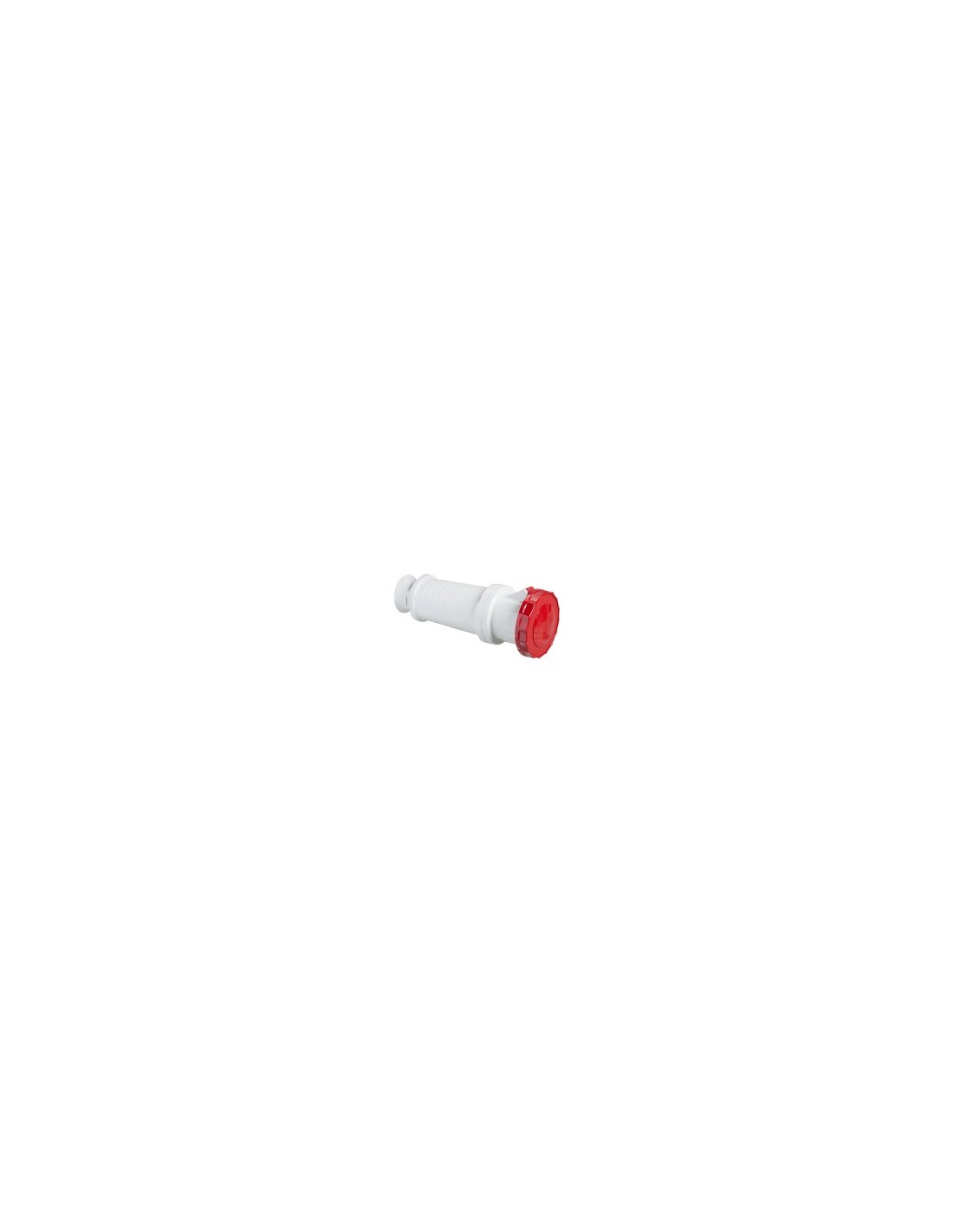

Industrial mobile socket 3P+N+E, 63 A, 380-415 V AC, with IP67 protection rating and fire resistance up to 850 °C. Designed for demanding industrial environments, compliant with IEC 60309-2 standard, featuring Pg 36 cable entry and non-loosening screw terminals.
Description
Industrial straight mobile socket designed for demanding industrial applications. Compliant with IEC 60309 standard, providing secure and robust connection for low-voltage equipment with a nominal current of 63 A and operating voltage between 380 and 415 V AC. Constructed from engineering-grade self-extinguishing polymer, ensuring thermal stability and high mechanical resistance.
Adaptable to industrial environments exposed to dust, moisture, and impacts, thanks to its high IP67 and IK08 protection ratings. Its vertical design and non-loosening screw connections facilitate installation and maintenance in confined spaces.
Product Details
| High | 110 mm |
|---|---|
| Width | 110 mm |
| Depth | 265 mm |
| Weight (kg) | 0,783 kg |
| Nominal voltage (V) | 380...415 V |
|---|---|
| Rated current (A) | 63 |
| Protection | IP67 - uso externo |
|---|
| Frequency | 50/60 Hz |
|---|---|
| EAN | 3303430814832 |
| Manufacturer | SCHNEIDER |
| Range | Industrial |
| No. of poles | 3P+N+E |
| Reference | IMPO 81483 |
| Colour | Grey |
| Material | Polímero |
