New

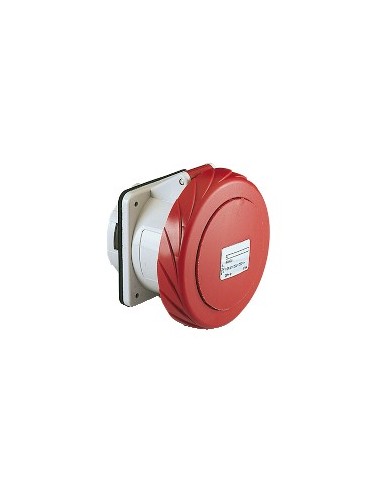

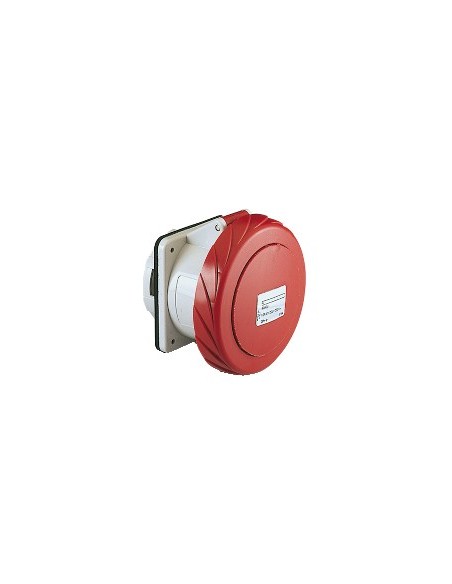

Industrial Socket 3P+E 125 A IP67

Industrial Socket 3P+E 125 A IP67

Industrial Socket 3P+E 125 A IP67

Available In stock 9 Items

Reference IMPO 81694

€158.92

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP67 - uso externo
Colour Grey

Industrial 3P+E socket, 125 A, 380-415 V AC, panel mounting, with IP67 and IK08 protection rating. Made of self-extinguishing polymer, contacts in stainless steel and nickel-plated brass. Compatible with EN 60309-1/2 standards, withstands up to 850 °C and operates at 90 % humidity at 20 °C.

Description

Industrial PratiKa-type socket, 125 A, 3P+E, designed for low-voltage installations in industrial environments. Compatible with industrial connection standards, provides a secure and durable connection for electrical equipment in demanding conditions.

Technical Features

Number of poles: 3P+E
Rated operating voltage: 380...415 V AC
Rated current: 125 A
Supply frequency: 50/60 Hz
Earth terminal position: 6 o'clock
Housing material: Engineering self-extinguishing polymer
Contact material: Stainless steel pins and springs, nickel-plated brass sleeves
Connections: Captive screws, fully loosened
Wire cross-section supported: 16…70 mm²
Protection rating: IP67 according to IEC 60529
Mechanical protection rating: IK08 according to EN 62262
Fire resistance: 850 °C according to IEC 60695-2-11
Operating ambient temperature: 35 °C (86400 s)
Relative humidity: 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
Compliant standards: EN 60309-1, EN 60309-2
Color: Grey (RAL 7035)
Voltage color code: Red
Product weight: 1.17 kg
Dimensions: 110 x 114 x 161 mm (width x height x depth)
Mounting: Panel
Shape: Straight
Compatibility code: PratiKa socket
Sustainable offering status: Green Premium product
Contains SVHC above threshold (REACH)
EU RoHS: Proactive compliance (outside scope)
China RoHS: Outside scope
RoHS exemptions: Yes
Contains mercury: No

Product Details

Dimensiones

Measures	110 x 114 x 161 mm
Width	114
Long	110
Depth	16,1 cm
Weight (kg)	1,17

Eléctrico

Nominal voltage (V)	380...415 V
Current type	AC
Rated current (A)	125

Protección

Protection	IP67 - uso externo

Otras

Frequency	50/60 Hz
EAN	3303430816942
Manufacturer	SCHNEIDER
Range	Industrial
No. of poles	3P+E
Reference	IMPO 81694
Cable cross-section (mm²)	16
Colour	Grey
Material	Polímero

Información legal

Fabricante	SCHNEIDER
Dirección	Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email	[email protected]
Teléfono	+34 930289900
Referencia	IMPO 81694
EAN	3303430816942

In stock 9 Items

Downloads

Product sheet Store PDF Download
