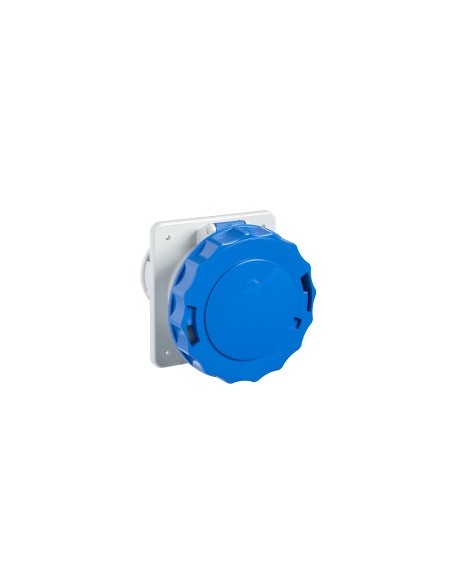

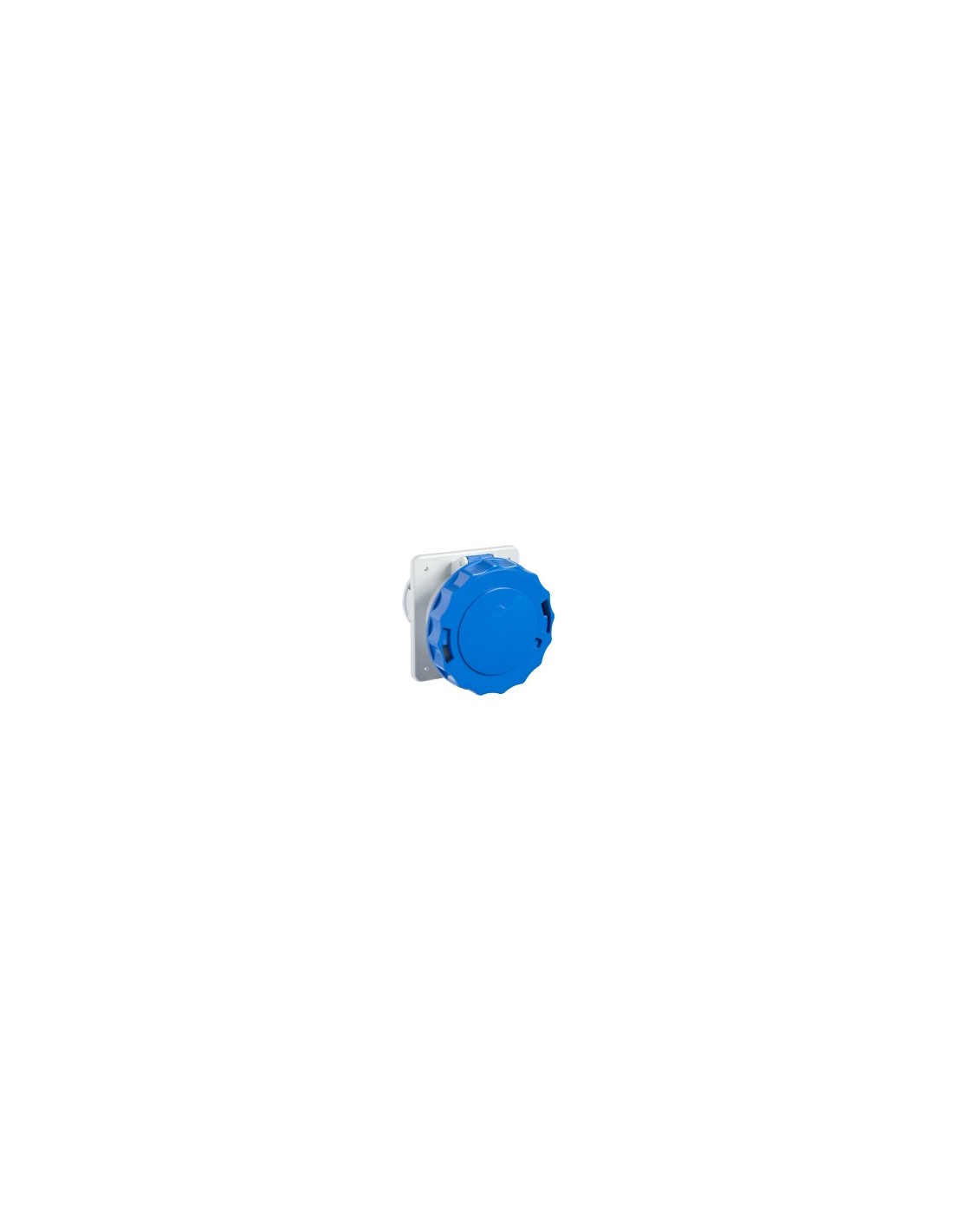

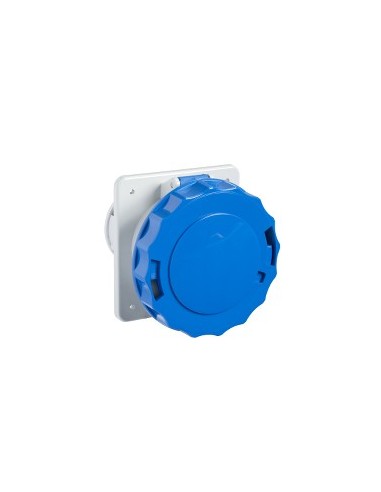

Industrial Socket 125 A 2P+E IP67
Industrial Socket 125 A 2P+E IP67

Industrial Socket 125 A 2P+E IP67

Available In stock 5 Items Reference IMPO 81690
€157.18
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP67 - uso externo

Industrial straight socket 2P+E, 125 A, 200-250 V AC, panel mounting, with IP67 and IK08 protection rating. Made of self-extinguishing polymer, contacts in stainless steel and nickel-plated brass. Compatible with EN 60309-1 and EN 60309-2 standards. Supports cable cross-sections from 16 to 70 mm².

Description

PratiKa type industrial straight socket, designed for low-voltage installations with 2P+E connection. Specifically intended for use in demanding industrial environments, ensuring a secure and durable connection under adverse conditions. Its robust construction and IP67 protection make it suitable for environments exposed to dust and water.

Technical Features

  • Number of poles: 2P+E
  • Rated operating voltage: 200...250 V AC
  • Rated current: 125 A
  • Supply frequency: 50/60 Hz
  • Earth terminal position clockwise: 6 o'clock
  • Housing material: Engineering self-extinguishing polymer
  • Contact material: Stainless steel pins and springs, nickel-plated brass sleeves
  • Connections: Captive screws, fully loosened
  • Cable cross-section: 16…70 mm²
  • Protection degree IP: IP67 according to IEC 60529
  • Protection degree IK: IK08 according to EN 62262
  • Fire resistance: 850 °C according to IEC 60695-2-11
  • Operating ambient temperature: 35 °C (86400 s)
  • Standards: EN 60309-1, EN 60309-2
  • Color: Grey (RAL 7035)
  • Voltage color code: Blue
  • Product weight: 1.021 kg
  • Dimensions: 110 x 114 x 161 mm
  • Mounting: Panel
  • Shape: Straight
  • Compatibility code: PratiKa socket
  • Sustainable offering status: Green Premium product
  • REACH Regulation: Contains SVHC above threshold
  • EU RoHS Directive: Proactive compliance (out of scope)
  • China RoHS: Out of scope
  • Mercury-free: Yes
  • RoHS exemptions: Yes

Product Details

Dimensiones

Measures 110 x 114 x 161 mm
Long 161 mm
Depth 110 mm
Weight (kg) 1,021 kg

Eléctrico

Nominal voltage (V) 250
Current type AC
Rated current (A) 125

Protección

Protection IP67 - uso externo

Otras

Frequency 50/60 Hz
EAN 3303430816904
Manufacturer SCHNEIDER
Range Industrial
# Elements 1
No. of poles 2P+E
Reference IMPO 81690
Material Polímero

Información legal

Fabricante SCHNEIDER
Dirección Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email [email protected]
Teléfono +34 930289900
Referencia IMPO 81690
EAN 3303430816904
5 Items
