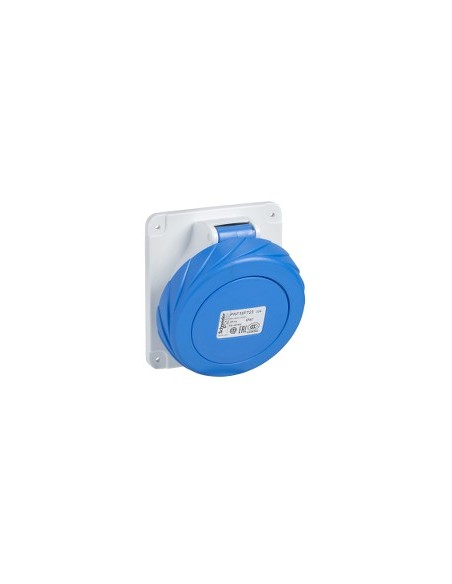

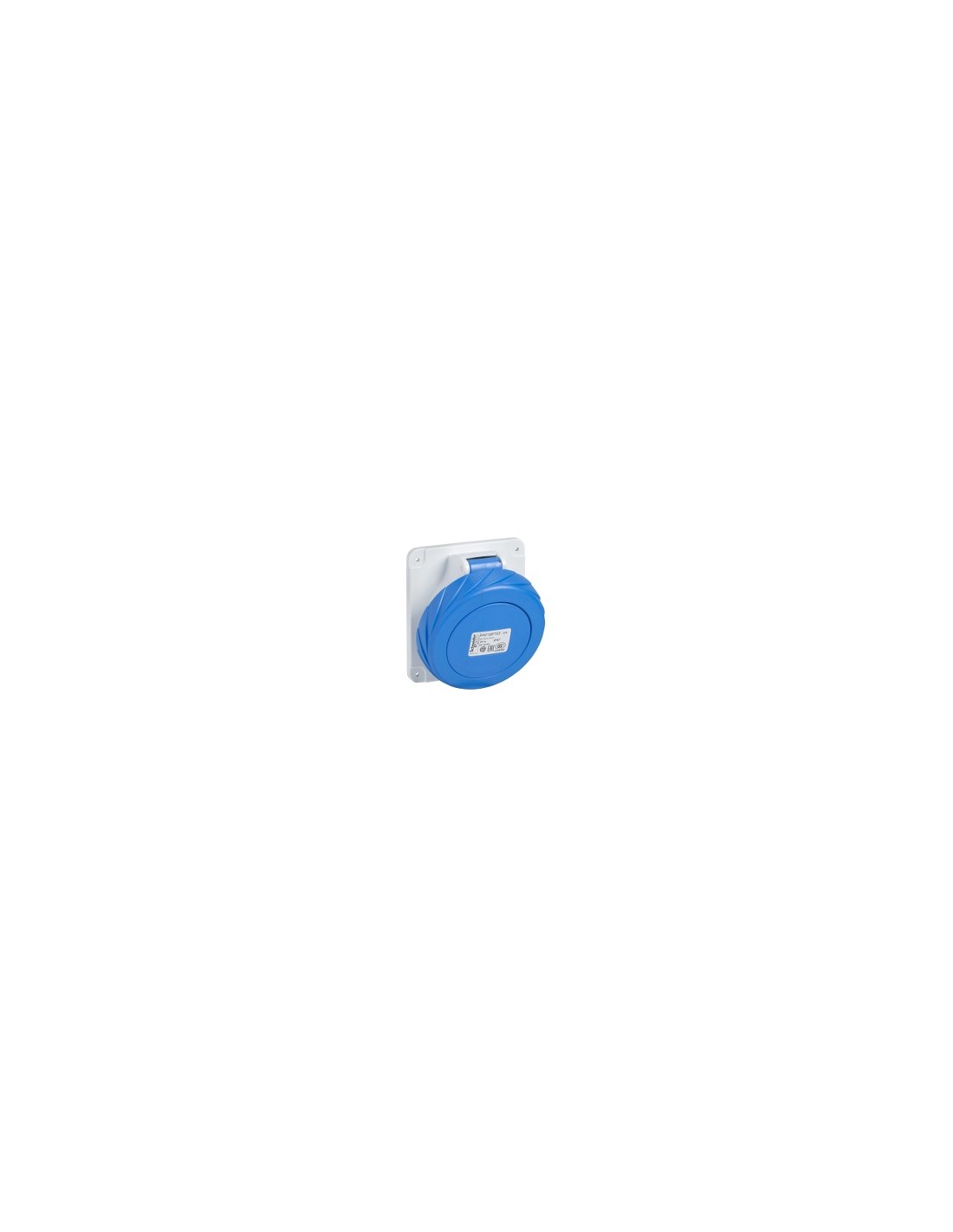

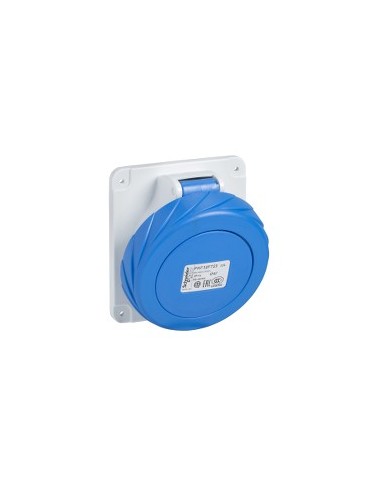

Industrial Angle Socket 63 A IP67
Industrial Angle Socket 63 A IP67

Industrial Angle Socket 63 A IP67

Available In stock 10 Items Reference IMPO 81278
€67.69
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP67 - uso externo
  • Colour Grey

Recessed base with angled outlet, 63 A, 2P+E, 200...250 V AC, IP67. Designed for industrial installations in demanding environments. Connection via captive screws, cable section 6...25 mm². Housing material: self-extinguishing engineering polymer, contacts in stainless steel and nickel-plated brass. Complies with EN 60309-1 and EN 60309-2 standards.

Description

Recessed base with angled outlet from the PratiKa range, designed for industrial applications in demanding environments. Compatible with low-voltage systems, provides a secure and durable connection for equipment in small businesses and industrial settings. Its angled structure allows for ergonomic and efficient installation.

Technical Features

  • Number of poles: 2P+E
  • Network type: AC
  • Rated current: 63 A
  • Rated operating voltage: 200...250 V
  • Supply frequency: 50/60 Hz
  • Earth terminal position clockwise: 6 h
  • Housing material: Self-extinguishing engineering polymer
  • Contacts: Stainless steel pins, nickel-plated brass sleeves, stainless steel springs
  • Connections: Captive screws, fully loosened
  • Cable section: 6…25 mm²
  • Protection degree IP: IP67
  • Protection degree IK: IK08
  • Fire resistance: 850 °C
  • Operating ambient temperature: 35 °C
  • Relative humidity: 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
  • Weight: 0.424 kg
  • Dimensions: 325 x 175 x 120 mm
  • Color: Grey (RAL 7035)
  • Voltage code: Blue
  • Standards: EN 60309-1, EN 60309-2
  • Market segment: Small businesses
  • Sustainable offering status: Green Premium product
  • Contains SVHC above threshold (REACh)
  • Product outside the scope of EU RoHS and China RoHS

Product Details

Dimensiones

Width 175 mm
Long 325 mm
Depth 120 mm
Weight (kg) 0,424 kg

Eléctrico

Nominal voltage (V) 200...250 V
Rated voltage 250
Rated current (A) 63

Protección

Protection IP67 - uso externo

Otras

Frequency 50/60 Hz
EAN 3303430812784
Manufacturer SCHNEIDER
Range Industrial
No. of poles 2P+E
Reference IMPO 81278
Colour Grey
Material Polímero

Información legal

Fabricante SCHNEIDER
Dirección Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email [email protected]
Teléfono +34 930289900
Referencia IMPO 81278
EAN 3303430812784
10 Items
