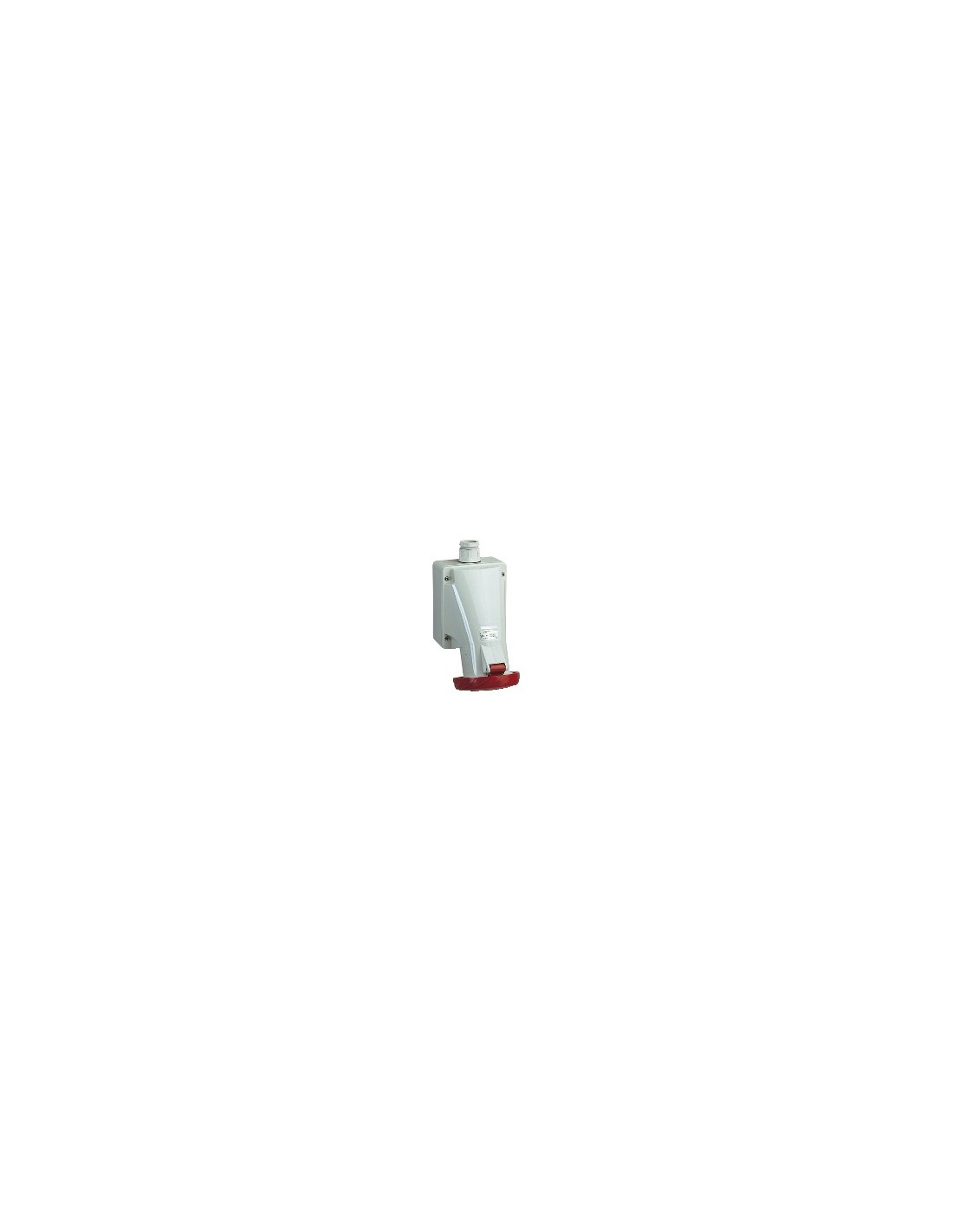

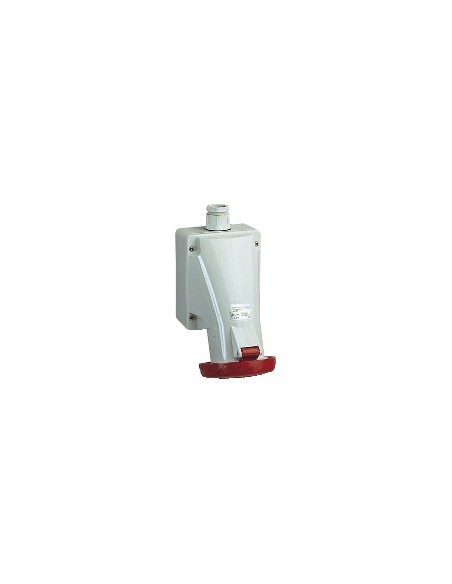

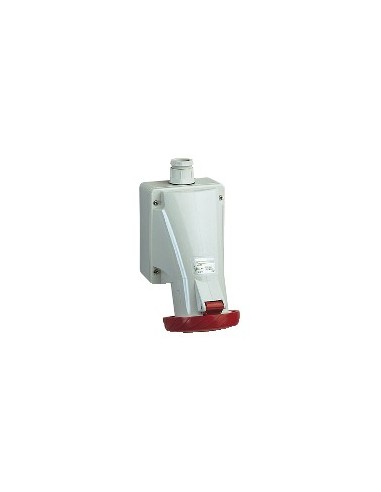

Industrial Socket 3P+N+E 16 A IP67

Wall-mounted recessed industrial socket with angled connection, designed for use in industrial environments and small commercial settings. Compatible with high-voltage standards and protected against dust and water according to IP67, ensuring reliability under harsh conditions.

Technical Features

• Number of poles: 3P+N+E
• Rated current: 16 A
• Rated operating voltage: 380...415 V AC
• Supply frequency: 50/60 Hz
• Earth terminal position clockwise: 6 o'clock
• Housing material: Engineering self-extinguishing polymer
• Contact material: Stainless steel pins, nickel-plated brass sleeves, stainless steel springs
• Connections: Captive screws, fully loosened
• Cable cross-section: 1…4 mm²
• Outer cable diameter: 8…15 mm
• Cable entry: Cable gland
• Thread type: Pg 21
• Protection rating IP: IP67 according to IEC 60529
• Impact protection rating IK: IK08 according to EN 62262
• Fire resistance: 850 °C according to IEC 60695-2-11
• Relative humidity: 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
• Operating ambient temperature: 35 °C (86400 s)
• Product weight: 0.487 kg
• Dimensions: 106 x 130 mm (base), height 178 mm, width 106 mm, depth 143 mm
• Color: Grey (RAL 7035)
• Voltage color code: Red
• Standards: EN 60309-1, EN 60309-2
• Sustainable offering status: Green Premium product
• REACH Regulation: Contains SVHC above threshold
• EU RoHS Directive: Proactive compliance (out of scope)
• China RoHS Regulation: Out of scope
• Mercury-free: Yes
• RoHS exemptions information: Yes
