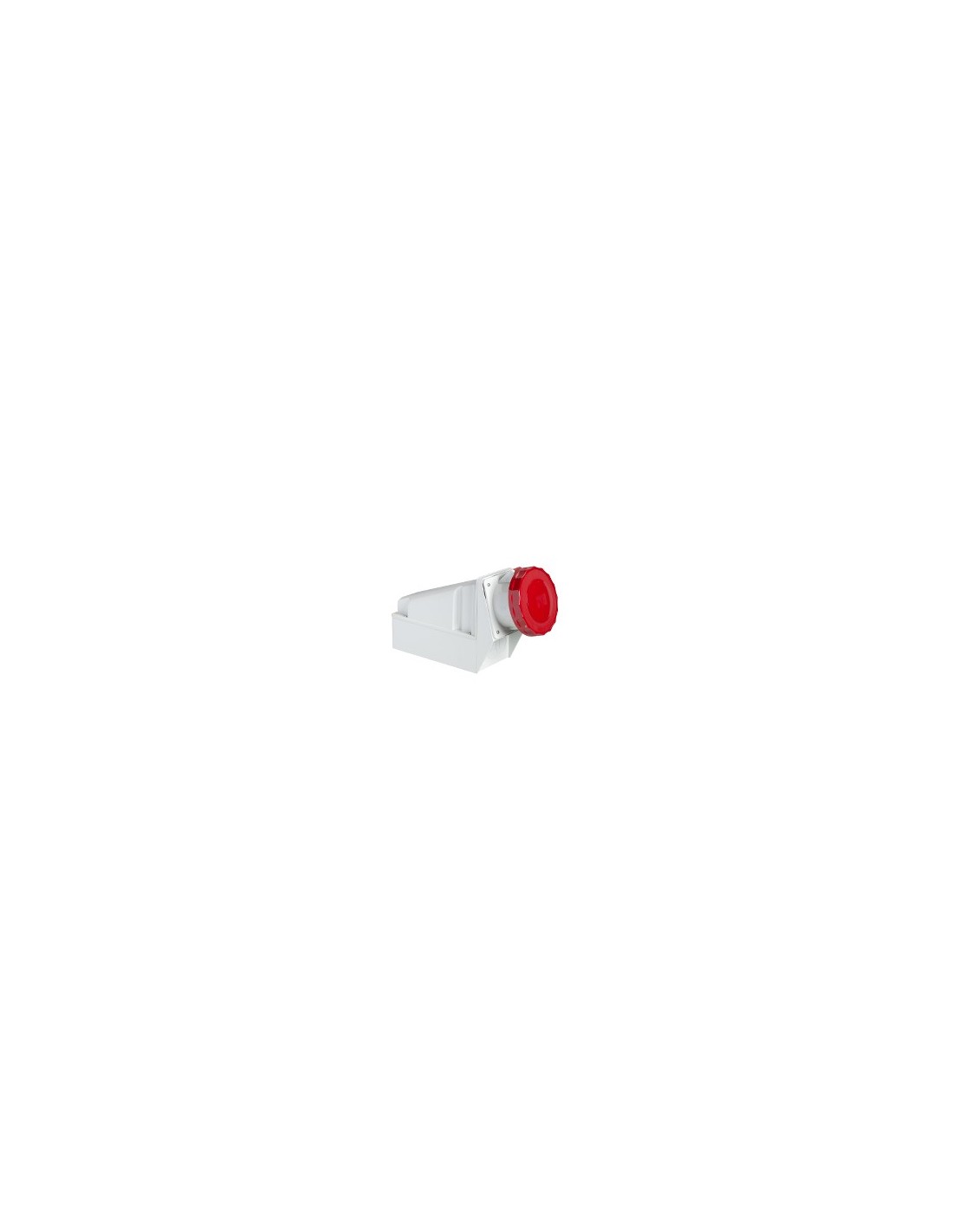

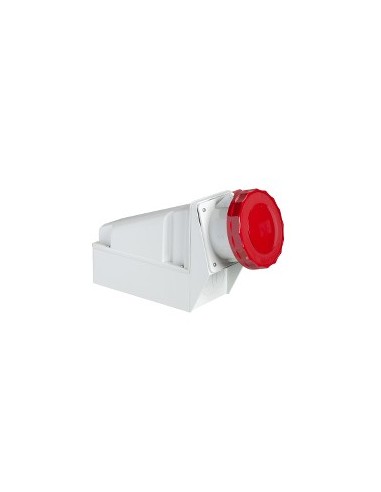

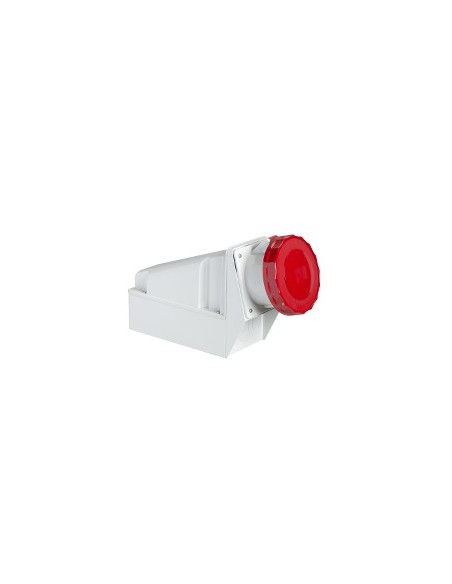

Surface Mount 125 A 3P+N+E IP67

Surface mount 125 A 3-pole +NT, 380-415 V IP67, designed for industrial applications in demanding environments. Ideal for connections in small businesses and environments with high levels of contamination or humidity, ensuring a safe and durable connection.

Technical Features

• Number of poles: 3P+N+E
• Power supply type: AC
• Output standard: Industrial
• Rated operating voltage: 380...415 V
• Rated current: 125 A
• Supply frequency: 50/60 Hz
• Earth terminal position clockwise: 6 h
• Housing material: Engineering self-extinguishing polymer
• Contact material: Stainless steel pins and springs, nickel-plated brass sleeves
• Connections: Captive screws, fully loosened
• Cable section: 16…70 mm²
• Cable entry: Cable gland
• Thread type: Pg 48
• Protection rating IP: IP67 according to IEC 60529
• IK protection rating: IK08 according to EN 62262
• Fire resistance: 850 °C according to IEC 60695-2-11
• Operating ambient temperature: 35 °C (86400 s)
• Relative humidity: 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
• Product weight: 2.4 kg
• Base dimension: 114 x 224 mm
• Height: 340 mm
• Width: 114 mm
• Depth: 213 mm
• Color: Grey (RAL 7035)
• Voltage color code: Red
• Standards: EN 60309-1, EN 60309-2
• Market segment: Small businesses
• Compatibility code: Pratika connector
• Sustainable offering status: Green Premium product
• REACH Regulation: Contains SVHC above threshold
• EU RoHS Directive: Proactive compliance (outside scope)
• China RoHS Regulation: Outside scope
• Mercury-free: Yes
• RoHS exemptions information: Yes
