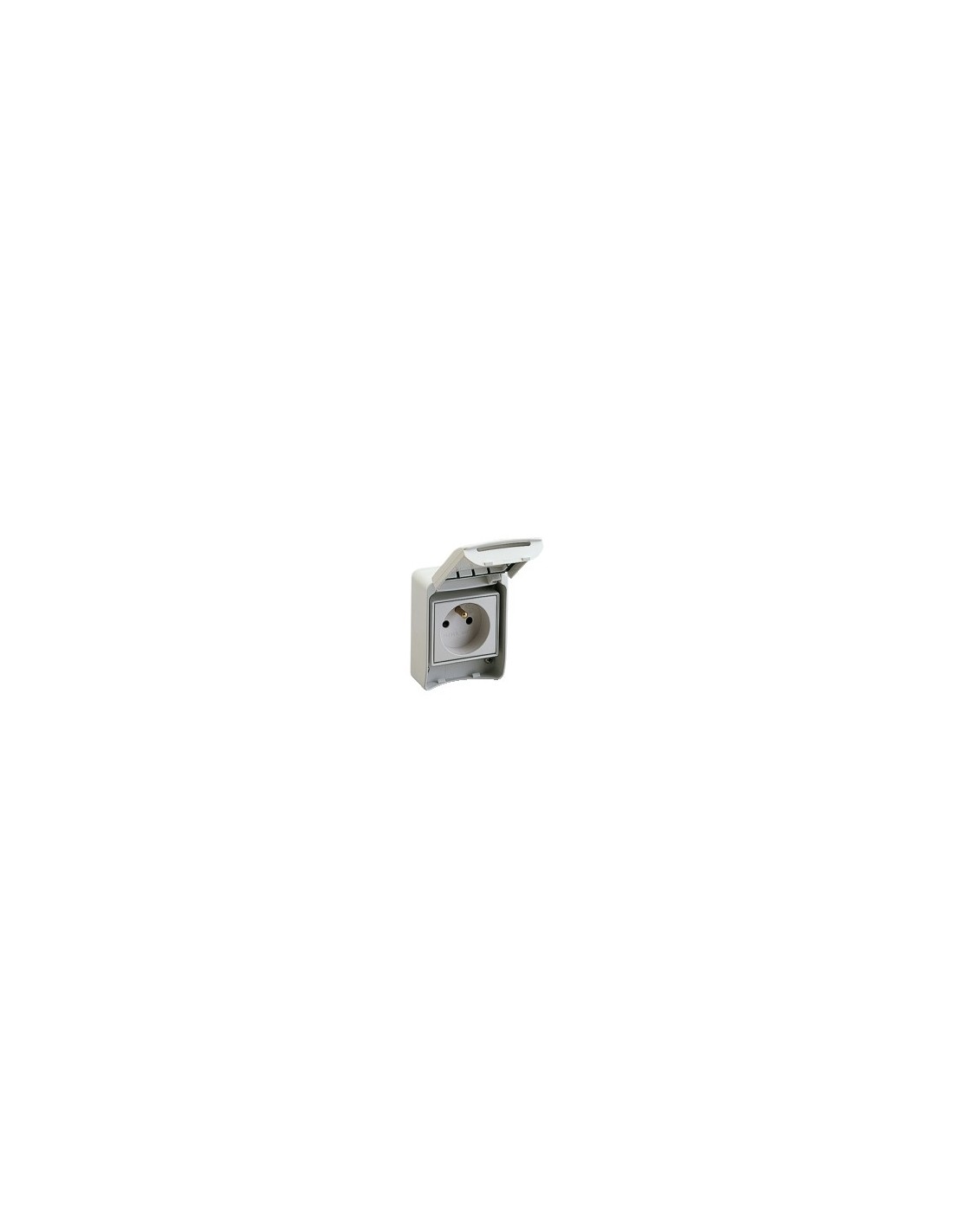

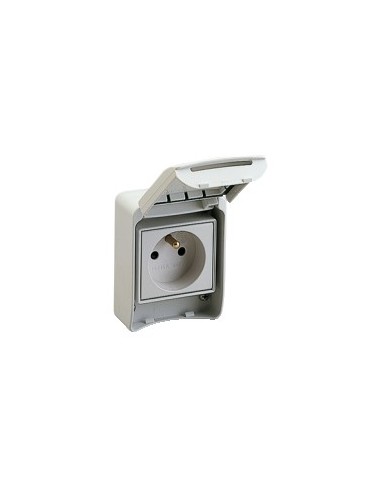

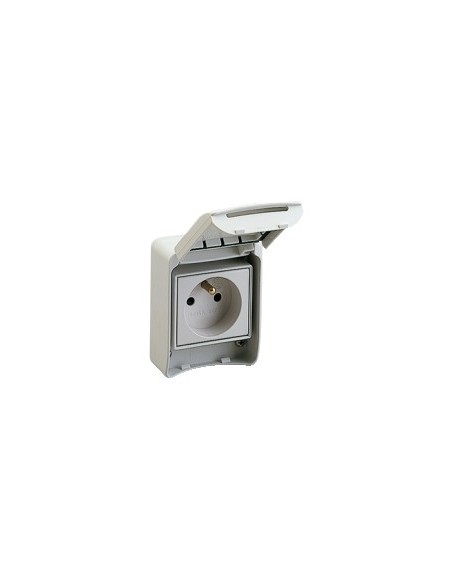

PratiKa 2P+E 16 A IP65 gray socket
PratiKa 2P+E 16 A IP65 gray socket

PratiKa 2P+E 16 A IP65 gray socket

Available In stock 100 Items Reference IMPO 81140
€28.06
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP65
  • Colour Grey

2 pole outlet plus ground, with nominal 16 A current and 250 V AC operating voltage, designed for installations in industrial or outdoor environments. Made of self-extinguishing polymer engineering, with IP65 protection grade and IK09 mechanical strength. Includes protective cap and connection terminals with screws.

Description

PratiKa-type outlet, designed for surface installation with panel assembly, compatible with the French domestic standard. Ideal for environments where high protection is required, thanks to its degree of IP65 protection and IK09 mechanical strength. It supports nominal currents of 10 A and 16 A, with nominal operating voltage of 250 V in 50/60 Hz AC networks.

Technical characteristics

  • Number of poles: 2P+E
  • Network type: AC
  • Output standard: French Domestic
  • Nominal current: 16 to 10 A
  • Network frequency: 50/60 Hz
  • Nominal employment voltage: 250 V
  • Housing material: Self-extinguishing engineering polymer
  • Contact material: Stainless steel pins and springs
  • Cover type: Tapa
  • Assembly: Area
  • Type of assembly: Panel Mounted
  • Number of sockets: 1
  • Connections: Screws, screws and screws
  • Weight: 0.112 kg
  • Base dimensions: 80 x 80 x 45 mm
  • Height: 85 mm
  • Width: 65 mm
  • Depth: 45.2 mm
  • Colour: Grey (RAL 7035)
  • Standards: IEC 60884
  • Degree of IP protection: IP65
  • Level of protection IK: IK09
  • Fire resistance: 850 °C
  • Relative humidity: 50 % at 40 °C, 70 % at 30 °C, 90 % at 20 °C
  • Operating ambient temperature: -25...40 °C
  • Sustainable supply status: Product Green Premium
  • According to REACh without SVCC: Yes
  • EU RoHS Directive: Proactive (out-of-scope) compliance
  • RoHS China: Proactive statement (out of legal scope)

Product Details

Dimensiones

Depth 45,2 mm
Weight (kg) 0,112 kg

Eléctrico

Nominal voltage (V) 250 V
Current type AC
Rated current (A) 16

Protección

Protection IP65

Otras

Frequency 50/60 Hz
EAN 3303430811404
Manufacturer SCHNEIDER
Range Industrial
No. of poles 2P+E
Reference IMPO 81140
Colour Grey
Material Polímero

Información legal

Fabricante SCHNEIDER
Dirección Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona, ES
Email [email protected]
Teléfono +34 930289900
Referencia IMPO 81140
EAN 3303430811404
100 Items
