List of products by brand SCHNEIDER

Schneider

Showing 325-336 of 6376 item(s)

Acti9 iID 4P 25A 30mA Residual Current Circuit Breaker

Available

Differential

Acti9 iID 4P 25A 30mA Residual Current Circuit Breaker

IMPO A9R31425

Residual current circuit breaker type A-SI, 4 poles, 25 A, sensitivity of 30 mA, designed for AC network output installations at 50/60 Hz. Supports nominal voltages of 380...415 V, with instantaneous earth leakage protection. Compatible with DIN rail, withstands voltage surges up to 6 kV, and certified according to EN/IEC 61008-1.

Adjustable Clip-On 4P 125A 300mA Vigi Block

Available

Differential

Adjustable Clip-On 4P 125A 300mA Vigi Block

IMPO A9N18555

€408.35

4P Vigi block with nominal current of 125 A, earth leakage sensitivity of 300 mA, type A-SI, for AC 50 Hz installations. Operating voltage 230...415 V AC, with voltage-independent tripping technology. Mounting on 35 mm DIN rail, connection via screws, resistance to voltage surges of 6 kV.

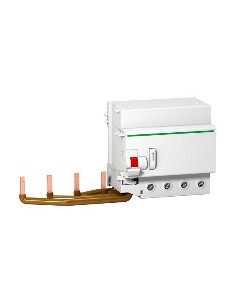

Dardo Plus 4P 125A 30 mA Instantaneous RCD Module

Available

Differential

Dardo Plus 4P 125A 30 mA Instantaneous RCD Module

IMPO A9N18554

€373.21

4P Dardo Plus RCD module with nominal current of 125 A, earth leakage sensitivity of 30 mA, and instantaneous response. Designed for small commercial installations, operates on AC 50 Hz networks with a nominal operating voltage of 400...415 V.

Acti9 iC60L 1P 20 A C Curve Miniature Circuit Breaker

Available

Miniature circuit breakers

Acti9 iC60L 1P 20 A C Curve Miniature Circuit Breaker

IMPO A9F94120

€33.50

Miniature circuit breaker Acti9 iC60L, 1P, 20 A, C curve, with breaking capacity Icn of 15,000 A at 230 V AC 50/60 Hz according to IEC 60898-1. Designed for residential and small commercial applications, offering thermal and magnetic protection with electrical durability of 10,000 cycles and DIN rail mounting.

Acti9 iC60L 1P 25 A B Curve Miniature Circuit Breaker

Available

Miniature circuit breakers

Acti9 iC60L 1P 25 A B Curve Miniature Circuit Breaker

IMPO A9F93125

€41.53

Miniature circuit breaker Acti9 iC60L, 1P, 25 A, B curve, with breaking capacity Icn of 15,000 A at 230 V AC 50/60 Hz according to IEC 60898-1, designed for residential and small commercial applications, with IP20 protection rating, DIN rail mounting, and 10,000 electrical cycles durability.

Acti9 iC60H 3P 63 A C Curve Miniature Circuit Breaker

Available

Miniature circuit breakers

Acti9 iC60H 3P 63 A C Curve Miniature Circuit Breaker

IMPO A9F87363

€108.91

Miniature circuit breaker 3P, 63 A, C curve, with breaking capacity of 15 kA at 380-415 V AC, compliant with IEC 60898-1 and IEC 60947-2. Designed for thermal and magnetic protection, featuring position and trip indicator, DIN rail mounting, operation in environments up to 70 °C, and IP20 protection rating.

Acti9 iC60H 3P 50 A C Curve Miniature Circuit Breaker

Available

Miniature circuit breakers

Acti9 iC60H 3P 50 A C Curve Miniature Circuit Breaker

IMPO A9F87350

€116.97

Miniature circuit breaker 3P, 50 A, C curve, with breaking capacity of 15 kA at 380-415 V AC 50/60 Hz, compliant with IEC 60898-1 and IEC 60947-2. Thermal-magnetic protection, DIN rail mounting, IP20 protection rating, operational from -35 to 70 °C. Designed for industrial and commercial applications in three-phase circuits.

Acti9 iC60H 3P 40 A C Curve Miniature Circuit Breaker

Available

Miniature circuit breakers

Acti9 iC60H 3P 40 A C Curve Miniature Circuit Breaker

IMPO A9F87340

€85.95

Miniature circuit breaker 3P, 40 A, C curve, with breaking capacity of 15 kA at 380-415 V AC 50/60 Hz, compliant with IEC 60898-1 and IEC 60947-2. Designed for overload and short-circuit protection in industrial and commercial installations, with DIN rail mounting, IP20 protection rating, and operation in temperature ranges from -35 to 70 °C.

Acti9 iC60H 3P 25 A C Curve Miniature Circuit Breaker

Available

Miniature circuit breakers

Acti9 iC60H 3P 25 A C Curve Miniature Circuit Breaker

IMPO A9F87325

€58.46

Miniature circuit breaker 3P, 25 A, C curve, with a breaking capacity of 10,000 A (IEC 60898-1) and 15 kA (IEC 60947-2), designed to protect circuits in industrial and commercial electrical installations. Compatible with AC networks 50/60 Hz, supports voltages up to 440 V AC and 180 V DC.

Acti9 iC60H 3P 20 A C Curve Miniature Circuit Breaker

Available

Miniature circuit breakers

Acti9 iC60H 3P 20 A C Curve Miniature Circuit Breaker

IMPO A9F87320

€57.34

Miniature circuit breaker, 3P, 20 A, C curve, with breaking capacity of 10,000 A (IEC 60898-1) and 15 kA (IEC 60947-2), designed for AC 50/60 Hz networks up to 415 V, featuring thermal-magnetic protection, DIN rail mounting, pollution degree 3, and service category A.

Acti9 iC60H 2P 50 A C Curve Miniature Circuit Breaker

Available

Miniature circuit breakers

Acti9 iC60H 2P 50 A C Curve Miniature Circuit Breaker

IMPO A9F87250

€75.81

Miniature circuit breaker Acti9 iC60H 2-pole, 50 A, C curve, with breaking capacity Icn of 10000 A at 400 V AC, thermal-magnetic design, DIN rail mounting, IP20 protection rating, mechanical durability of 20000 cycles, suitable for AC networks 50/60 Hz up to 440 V and industrial environments with high safety requirements.

Acti9 iC60H 2P 40 A C Curve Miniature Circuit Breaker

Available

Miniature circuit breakers

Acti9 iC60H 2P 40 A C Curve Miniature Circuit Breaker

IMPO A9F87240

€55.38

Miniature circuit breaker Acti9 iC60H, 2 poles, 40 A, C curve, with breaking capacity of 10,000 A (IEC 60898-1) and 15 kA (IEC 60947-2), designed to protect electrical installations in AC 50/60 Hz networks, with a rated operating voltage up to 440 V AC and pollution degree 3.
