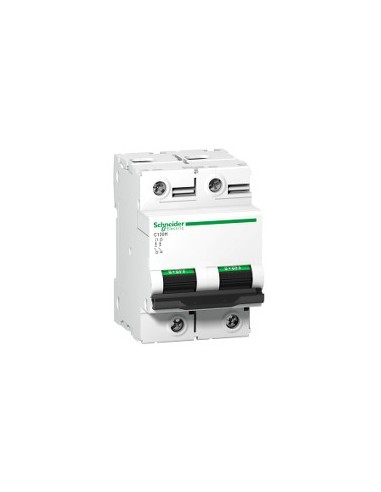

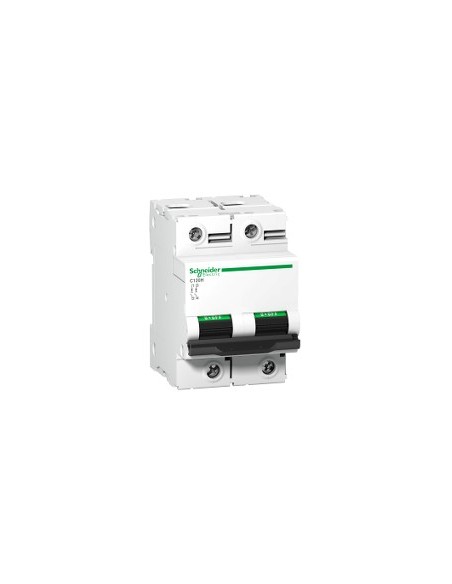

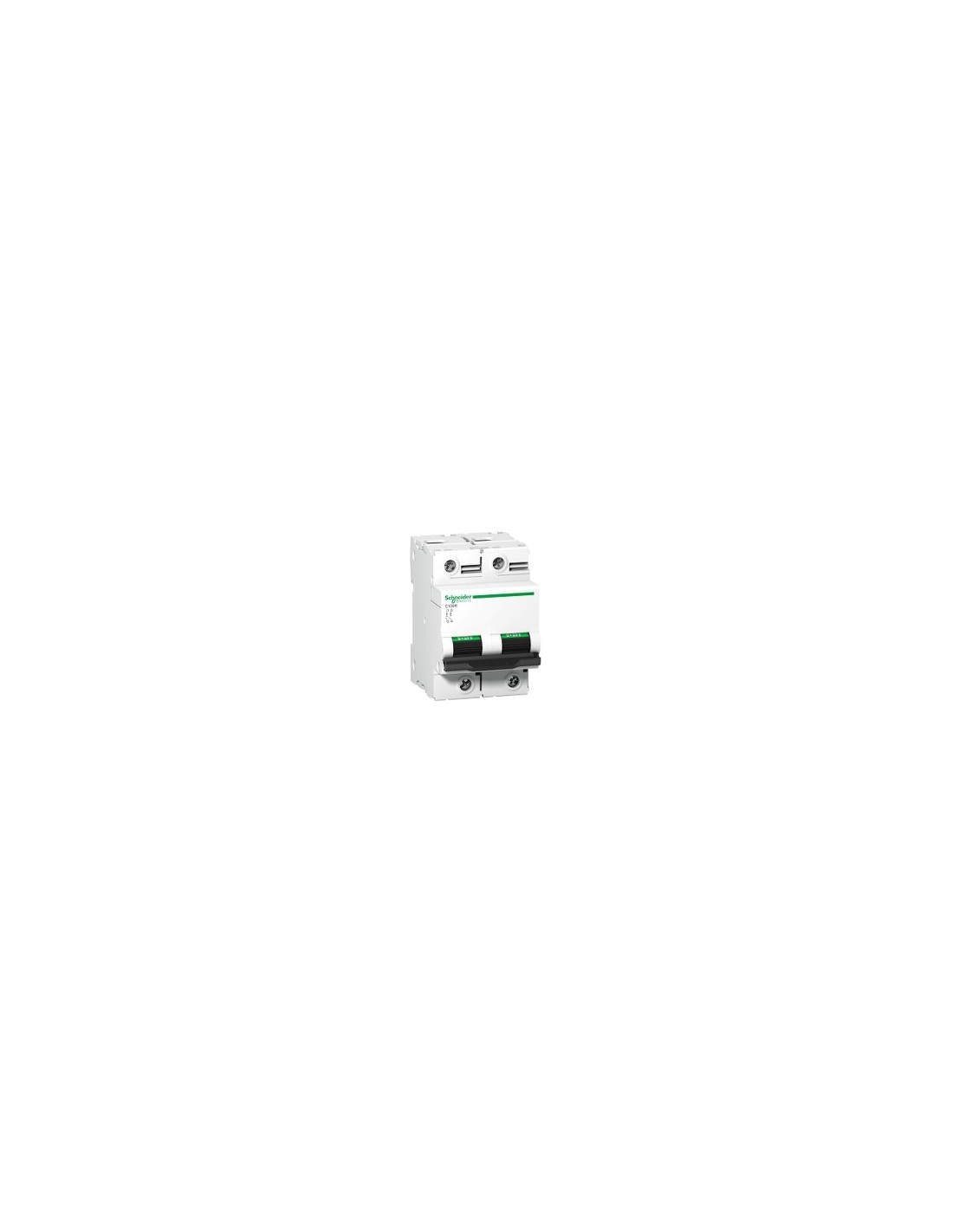

Acti9 C120H 2P 100 A B Curve Automatic Switch

Miniature automatic switch Acti9 C120H, 2 poles, 100 A, B curve, designed to protect electrical circuits in residential and small commercial installations. Thermal-magnetic technology ensures protection against overloads and short circuits. Manufactured to operate in environments ranging from -30 to 60 °C, with DIN 35 mm rail mounting and IP20 protection rating.

Technical Features

• Number of poles: 2P
• Number of protected poles: 2
• Neutral position: Left
• Rated current [In]: 100 A at 30 °C
• Network type: AC
• Tripping unit technology: Thermal-magnetic
• Curve code: B
• Breaking capacity code: H
• Breaking capacity [Icn]: 15 000 A at 230–400 V AC 50/60 Hz
• Service breaking capacity [Ics]: 7 500 A (50 %) at 230–400 V AC 50/60 Hz
• Limitation class: 3
• Rated operating voltage [Ue]: 220–240 V AC, 230–400 V AC, 380–415 V AC, 440 V AC
• Rated insulation voltage [Ui]: 500 V AC
• Surge voltage withstand [Uimp]: 6 kV
• Magnetic trip threshold: 3–5 x In
• Contact position indicator: Yes
• Local indicators: On/off indication
• Control type: Handle
• Mounting type: Adjustable clip
• Mounting support: Symmetrical 35 mm DIN rail
• Spacing: 9 mm, 6 steps
• Height: 81 mm
• Width: 54 mm
• Depth: 73 mm
• Weight: 0.41 kg
• Color: White
• Mechanical durability: 20 000 cycles
• Electrical durability: 5 000 cycles
• Terminals: Tunnel-type (1–50 mm² rigid, 1.5–35 mm² flexible)
• Stripping length: 15 mm
• Tightening torque: 3.5 N·m
• Earth leakage protection: Independent block
• Protection rating IP: IP20
• Contamination degree: 3
• Overvoltage category: IV
• Tropicalization: 2
• Relative humidity: 95 % at 55 °C
• Maximum operating altitude: 2 000 m
• Operating ambient temperature: -30 °C to 60 °C
• Storage ambient temperature: -40 °C to 70 °C
• Standards: Icu EN/IEC 60898-1
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS directive: Compliant
• Free of toxic heavy metals: Yes
• Mercury-free: Yes
• RoHS exemptions information: Yes
• WEEE: Must be disposed of according to specific collection system in the EU
