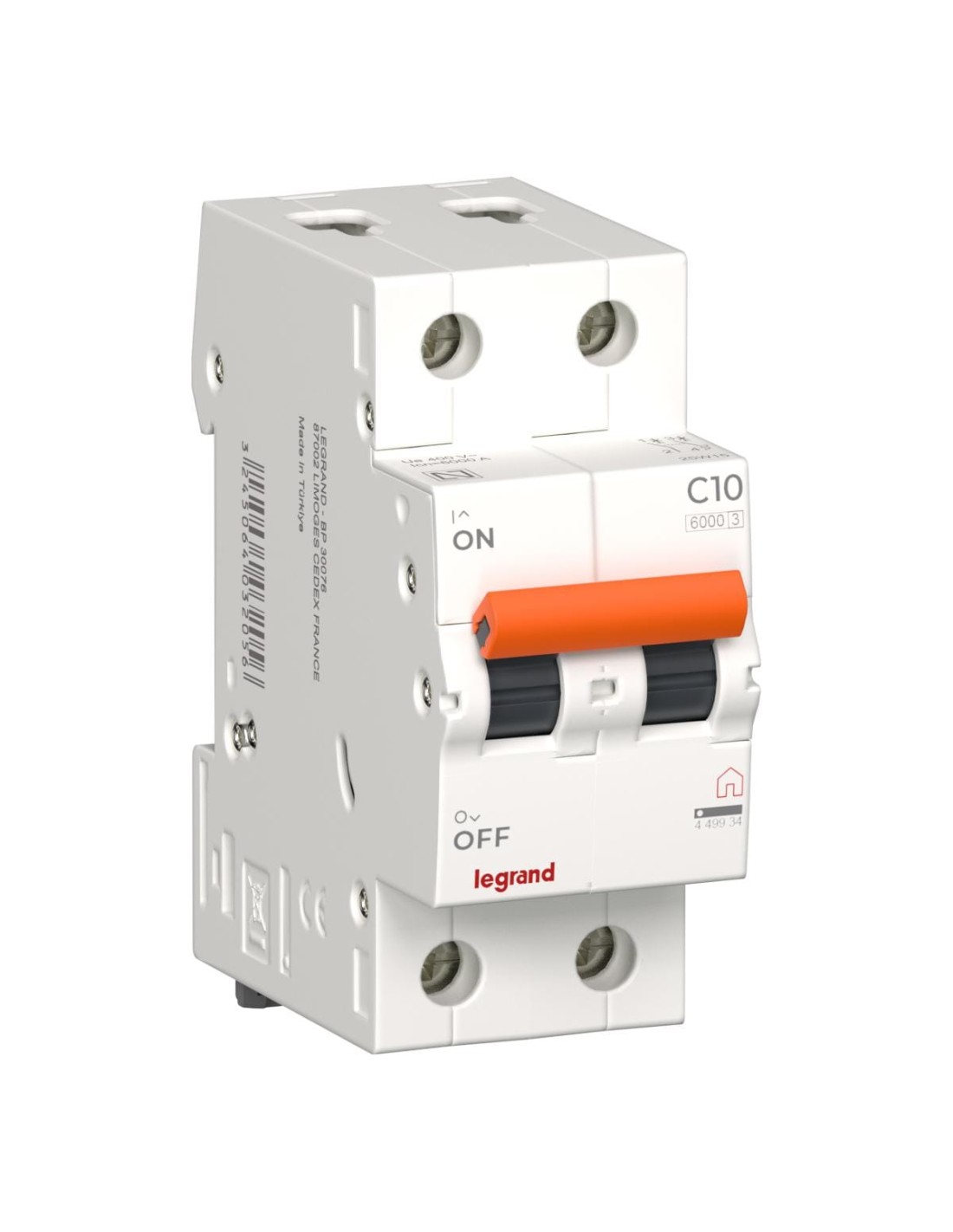

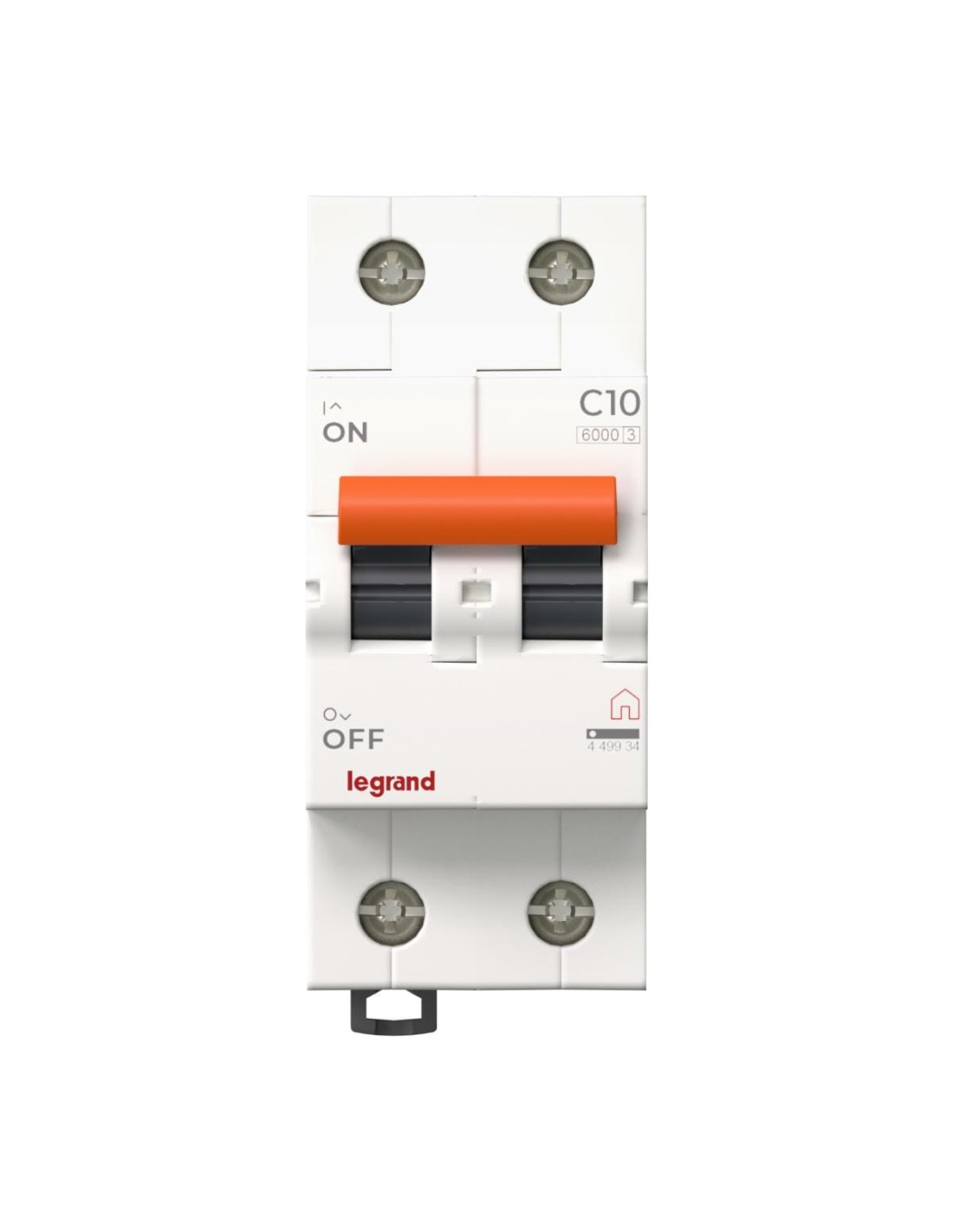

MCCB 2P 10A C Curve 2 Modules 230V

2-pole miniature circuit breaker designed to protect electrical installations against overloads and short circuits. It also allows for the control and isolation of the installation when necessary. Its compact 2-module design facilitates integration into standard electrical panels.

Technical features

• Rated current: 10 A
• Tripping curve: C
• Rated voltage: 230 V AC
• Breaking capacity: 10 kA at 230 V and 6 kA at 400 V
• Rated insulation voltage (Ui): 500 V
• Rated impulse voltage (Uimp): 4 kV
• Frequency: 50...60 Hz
• Protection rating: IP20
• Operating temperature: -25...70 °C
• Cable cross-section: 1.5...35 mm² (rigid)
• Depth: 44 mm

This device provides a reliable response to electrical faults, ensuring the safety of connected circuits. The C curve offers an appropriate balance between tolerance to starting peaks and rapid protection against short circuits. Its flush installation optimizes the available space in the panel.
