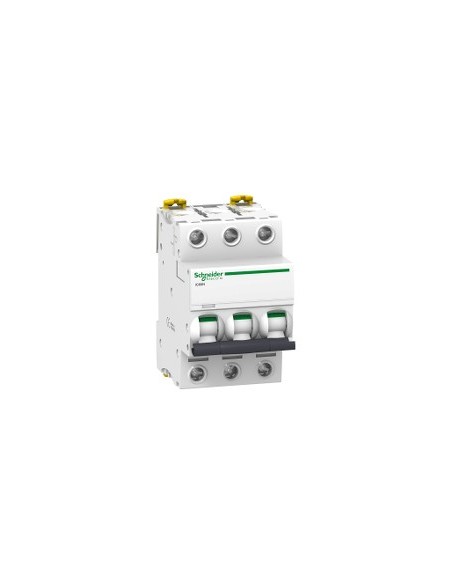

Acti9 iC60N 3P 32 A C Curve Magnetic Thermal Switch

Miniature three-phase magnetic thermal switch designed to protect electrical circuits in industrial and commercial installations. Provides thermal and magnetic protection through a C curve, with a nominal current of 32 A and a breaking capacity of 6000 A at 400 V AC 50/60 Hz. Compatible with AC and DC networks, compliant with IEC 60898-1 and EN 60898-1 standards.

Technical Features

• Number of poles: 3P
• Number of protected poles: 3
• Nominal current [In]: 32 A
• Network type: AC, DC
• Trip unit technology: Thermal-magnetic
• Curve code: C
• Breaking capacity: 6000 A Icn at 400 V AC 50/60 Hz
• Service breaking capacity [Ics]: 6000 A 100% according to EN 60898-1 - 400 V AC 50/60 Hz
• Limitation class: 3
• Rated operating voltage [Ue]: 220...240 V AC 50/60 Hz, 400 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, 12...133 V AC 50/60 Hz, 125...180 V DC
• Rated insulation voltage [Ui]: 500 V AC 50/60 Hz
• Surge voltage withstand [Uimp]: 6 kV
• Magnetic trip threshold: 8 x In +/- 20%
• Standards: IEC 60898-1, EN 60898-1, HB1, En > 50 A
• Protection degree: IP20
• Contamination degree: 3
• Overvoltage category: IV
• Tropicalization: 2 according to IEC 60068-1
• Relative humidity: 95% at 55 °C
• Maximum operating altitude: 0...2000 m
• Operating ambient temperature: -35…70 °C
• Storage ambient temperature: -40…85 °C
• Mechanical durability: 20000 cycles
• Electrical durability: 10000 cycles
• Connections: Single terminal - cable type: top or bottom) 1…35 mm² rigid, 1…25 mm² flexible
• Stripping length: 14 mm for top or bottom connection
• Tightening torque: 3.5 N·m top or bottom
• Contact position indicator: Yes
• Local indicators: Trip indicator
• Control type: Handle
• Mounting type: Fixed
• Mounting support: DIN rail
• Step size: 9 mm
• Height: 85 mm
• Width: 54 mm
• Depth: 78.5 mm
• Product weight: 0.375 kg
• Color: White
• Earth leakage protection: Independent block
• Compatibility code: IC60
• Device application: For current > 0.1 A
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS directive: Compliant
• Mercury-free: Yes
• China RoHS regulation: Product outside the scope of China RoHS
• Waste electrical and electronic equipment (WEEE): Must be disposed of according to specific system in the EU
• Halogen content: Halogen-free product
