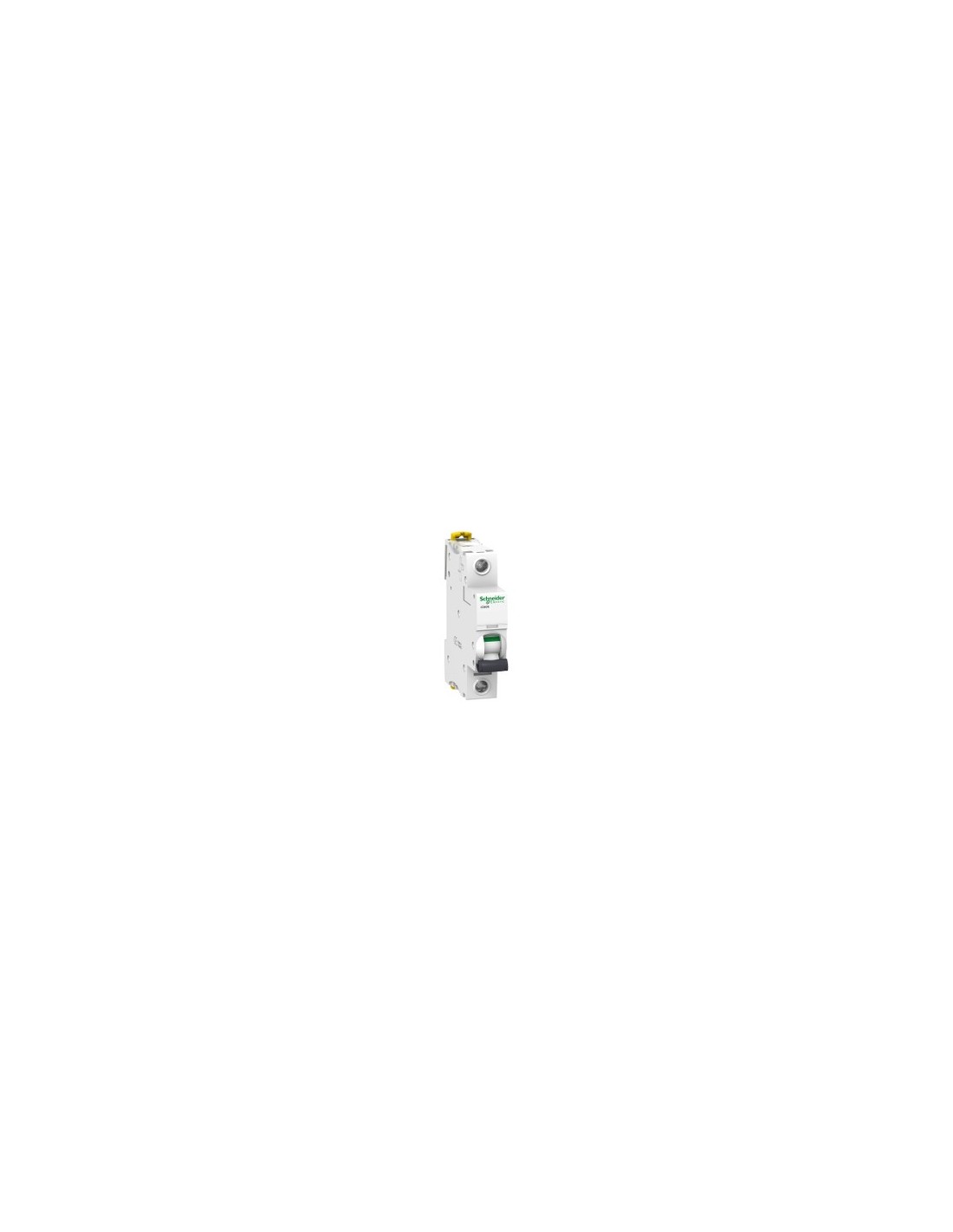

Magnetothermal Acti9 iC60N 1P 25 A Curve C

Miniature magnetic-thermal circuit breaker, designed to protect electrical circuits in industrial and commercial installations. Compatible with the Acti9 iC60N range, it provides thermal and magnetic protection through curve C, suitable for applications with moderate current surges. DIN rail mounting allows for quick and safe installation in electrical panels.

Technical features

• Number of poles: 1P
• Number of protected poles: 1
• Rated current [In]: 25 A
• Network type: AC
• Trip unit technology: Thermal-magnetic
• Curve code: C
• Breaking capacity: 6000 A Icn at 230 V AC 50/60 Hz (IEC 60898-1), 10 kA Icu at 220...240 V AC 50/60 Hz
• Service breaking capacity [Ics]: 6000 A 100% at 230 V AC 50/60 Hz (IEC 60898-1)
• Limitation class: 3
• Rated operating voltage [Ue]: 230 V AC 50/60 Hz, 220...240 V AC 50/60 Hz, 12...60 V AC 50/60 Hz, 100...133 V AC 50/60 Hz, 72 V DC
• Rated insulation voltage [Ui]: 500 V AC 50/60 Hz
• Surge voltage withstand: 6 kV
• Magnetic trip threshold: 8 x In +/- 20%
• Standards: EN 60898-1, IEC 60898-1, HB1, En > 50 A
• Protection degree: IP20
• Contamination degree: 3
• Overvoltage category: IV
• Operating ambient temperature: -35…70 °C
• Storage ambient temperature: -40…85 °C
• Maximum operating altitude: 0...2000 m
• Relative humidity: 95% at 55 °C
• Tropicalization: 2 (IEC 60068-1)
• Mechanical durability: 20000 cycles
• Electrical durability: 10000 cycles
• Connections: Single terminal, 1…25 mm² rigid, 1…16 mm² flexible
• Stripping length: 14 mm
• Tightening torque: 2 N·m
• Contact position indicator: Yes
• Local signaling: Trip indicator
• Mounting support: DIN rail
• Color: White
• Weight: 0.215 kg
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS directive: Compliant
• Halogen-free product
