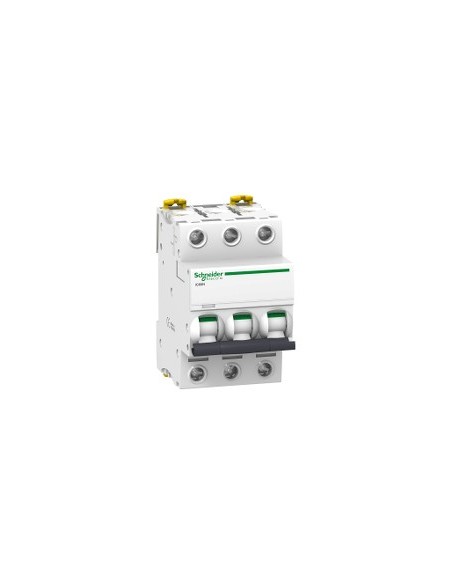

Acti9 iC60N 3P 20 A C Curve Magnetic Thermal Switch

Miniature three-phase magnetic thermal switch designed to protect electrical circuits in industrial and commercial installations. Provides thermal and magnetic protection through thermal-magnetic technology, with a rated current of 20 A and C curve, suitable for motor starting and inductive loads. Compatible with AC and DC networks, with a breaking capacity Icn of 6000 A at 400 V AC, compliant with IEC 60898-1 and EN 60898-1 standards. Its compact 54 mm width design allows DIN rail mounting, featuring a position indicator and trip signal indication.

Technical Specifications

• Number of poles: 3P
• Number of protected poles: 3
• Rated current [In]: 20 A
• Network type: AC, DC
• Tripping unit technology: Thermal-magnetic
• Curve code: C
• Breaking capacity: 6000 A Icn at 400 V AC 50/60 Hz according to EN/IEC 60898-1
• Service breaking capacity [Ics]: 15 kA 75% according to HB1 - 220...240 V AC 50/60 Hz
• Limitation class: 3 according to EN 60898-1
• Rated operational voltage [Ue]: 220...240 V AC 50/60 Hz, 400 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, 12...133 V AC 50/60 Hz, 125...180 V DC
• Rated insulation voltage [Ui]: 500 V AC 50/60 Hz
• Surge voltage withstand [Uimp]: 6 kV
• Magnetic link limit: 8 x In +/- 20%
• Standards: EN 60898-1, En> 50 A, IEC 60898-1, HB1
• Protection degree: IP20 according to EN 60529
• Pollution degree: 3
• Overvoltage category: IV
• Tropicalization: 2 according to IEC 60068-1
• Relative humidity: 95% at 55 °C
• Maximum operating altitude: 0...2000 m
• Operating ambient temperature: -35…70 °C
• Storage ambient temperature: -40…85 °C
• Position indicator: Yes
• Local signaling: Trip indicator
• Control type: Handle
• Mounting type: Fixed
• Mounting support: DIN rail
• 9 mm steps: 6
• Height: 85 mm
• Width: 54 mm
• Depth: 78.5 mm
• Product weight: 0.375 kg
• Color: White
• Mechanical durability: 20000 cycles
• Electrical durability: 10000 cycles
• Connections - terminals: Single terminal - cable type: top or bottom) 1…25 mm² rigid, 1…16 mm² flexible
• Stripping length for terminal connection: 14 mm for top or bottom connection
• Tightening torque: 2 N·m top or bottom
• Earth leakage protection: Independent block
• Compatibility code: IC60
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS directive: Compliant
• Mercury-free: Yes
• China RoHS regulation: Product outside the scope of China RoHS
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system
• Halogen content: Halogen-free product
