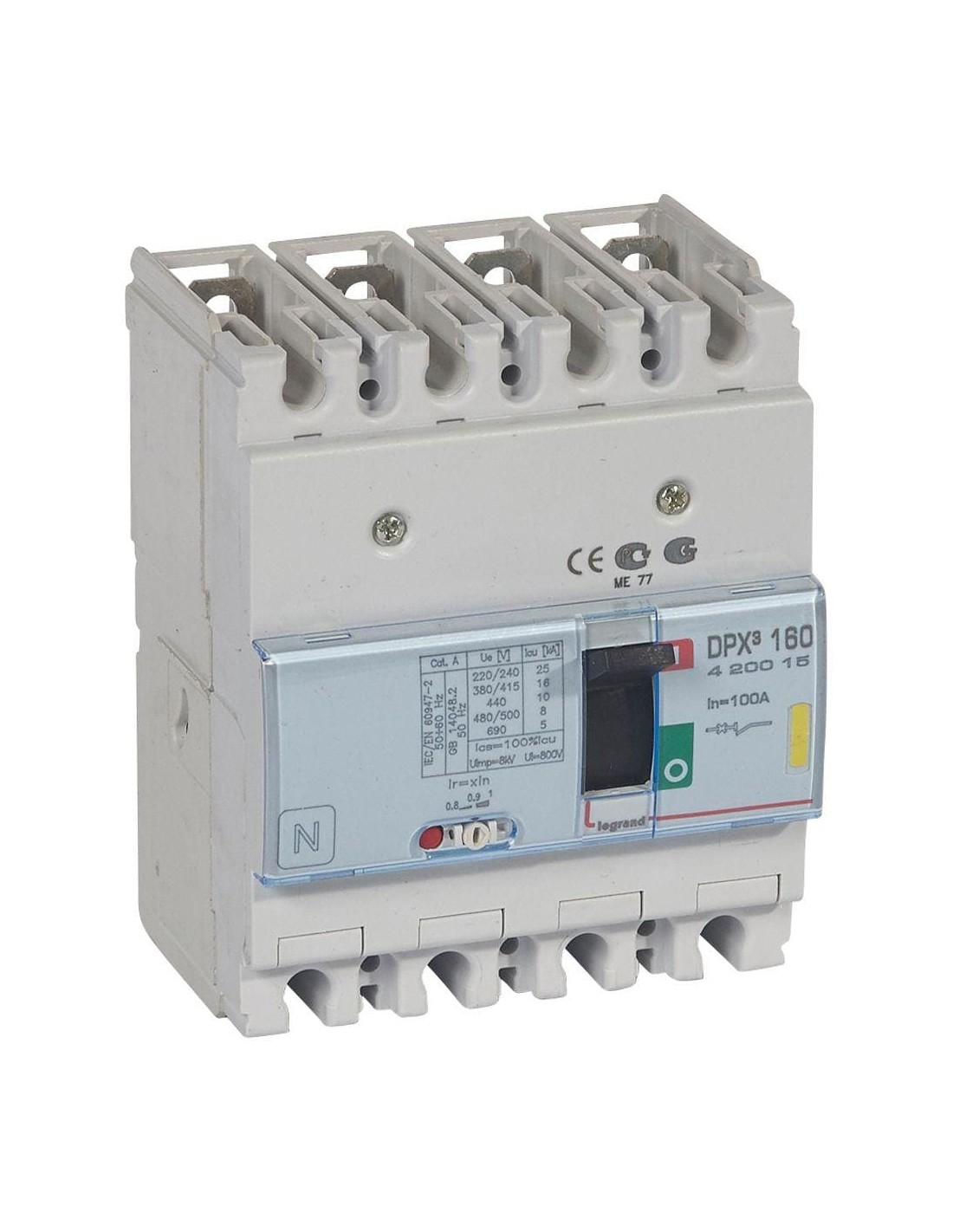

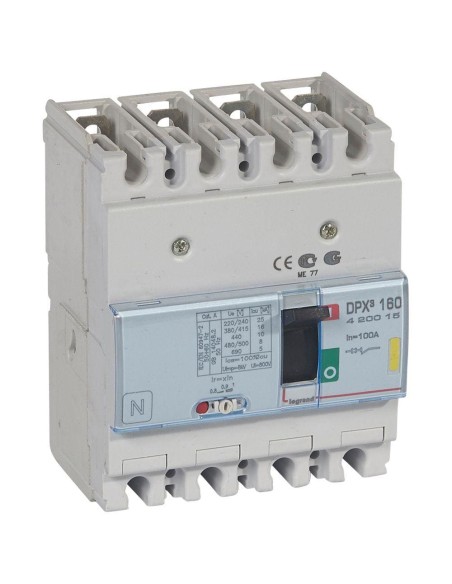

MCCB 4P 100A Icu 16kA

MCCB 4P 100A Icu 16kA

MCCB 4P 100A Icu 16kA

Available In stock 10 Items

Reference LEGRAND 420015

€323.70

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP30

4-pole DPX³ molded case circuit breaker with a rated current of 100 A and a breaking capacity of 16 kA at 400 V. Includes thermal adjustment from 80 to 100 A, fixed magnetic release of 1000 A, and DIN rail mounting.

Description

4-pole DPX³ 160 magnetic thermal molded case circuit breaker, designed to protect electrical circuits against overloads and short circuits. This device offers a robust and reliable solution for current management in industrial and commercial installations, ensuring the safety of connected equipment.

Technical features

Rated current (In): 100 A
Breaking capacity (Icu): 16 kA at 400 V~
Rated voltage range: 220...690 V
Overload adjustment: 80...100 A
Magnetic protection: 1000 A (no delay)
Main connection: Threaded
Mounting: Compatible with DIN rails
Auxiliary contacts: 1 NC, 1 changeover
Protection rating: IP30

This breaker includes an integrated undervoltage release and a disconnection indicator to facilitate maintenance. Its design allows for optional motor operation, improving operability in automated systems. The threaded connection ensures a firm and secure joint for main loads.

Product Details

Eléctrico

Nominal voltage (V)	400 V
Rated current (A)	100

Protección

Protection	IP30

Otras

Sensitivity	1000
EAN	3245064200158
Manufacturer	LEGRAND
Range	Industrial
No. of poles	4P
Reference	LEGRAND 420015

Información legal

Fabricante	LEGRAND
Dirección	C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 420015
EAN	3245064200158

Advertencias de seguridad

No

In stock 10 Items

Downloads

Product sheet Store PDF Download

Reviews (0)

No reviews
