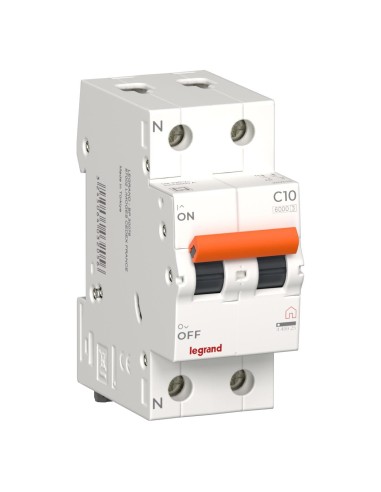

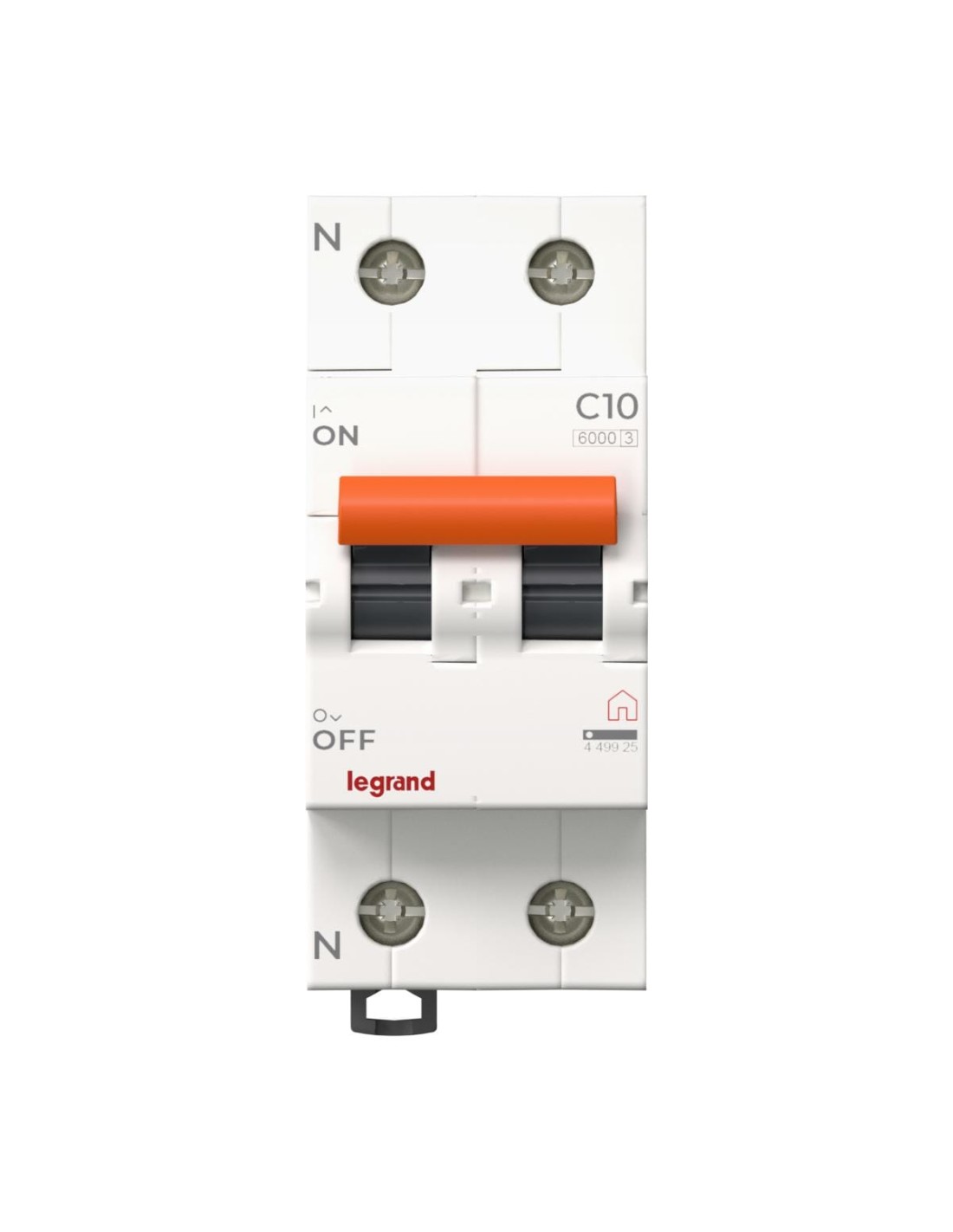

MCCB 1P+N 10A C-curve 230V 2 modules

MCCB 1P+N 10A C-curve 230V 2 modules

MCCB 1P+N 10A C-curve 230V 2 modules

MCCB 1P+N 10A C-curve 230V 2 modules

MCCB 1P+N 10A C-curve 230V 2 modules

Available In stock 595 Items

Reference LEGRAND 449925

€4.34

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP20

1P+N miniature circuit breaker (MCB) rated at 10 A with C-curve for 230 V. Protects against overloads and short circuits with a breaking capacity of 6 kA. Occupies 2 modules, accepts conductors from 1.5 to 25 mm², and simultaneously switches the neutral. Complies with EN 60898, with 500 V insulation and a 4 kV impulse rating. Flush mounting, IP20, operating temperature from -25 to 70 °C.

Description

1-pole plus neutral miniature circuit breaker (MCB), designed to protect electrical installations against overloads and short circuits. It also allows for manual control and isolation of the line.

Technical features

Rated current: 10 A
Nominal voltage: 230 V AC
Trip curve: C
Breaking capacity: 6 kA (per EN 60898)
Width: 2 modules
Depth: 44 mm
Protection rating: IP20
Operating temperature: -25...70 °C
Conductor connection: 1.5...25 mm² (stranded) / 1.5...35 mm² (solid)
Simultaneous neutral switching: yes
Current limiting class: 3
Overvoltage category: 3

This device offers a fast response to electrical faults thanks to its C-curve and high breaking capacity. Its compact 2-module design facilitates integration into standard electrical panels, while simultaneous neutral switching ensures safe isolation of the installation.

Product Details

Eléctrico

Rated voltage	230
Rated current (A)	10

Protección

Protection	IP20

Otras

Curve	C
EAN	3414972963411
Manufacturer	LEGRAND
# Elements	1
No. of poles	1P+N
Reference	LEGRAND 449925

Información legal

Fabricante	LEGRAND
Dirección	C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 449925
EAN	3414972963411

Advertencias de seguridad

No

In stock 595 Items

Downloads

Product sheet Store PDF Download

Reviews (0)

No reviews
