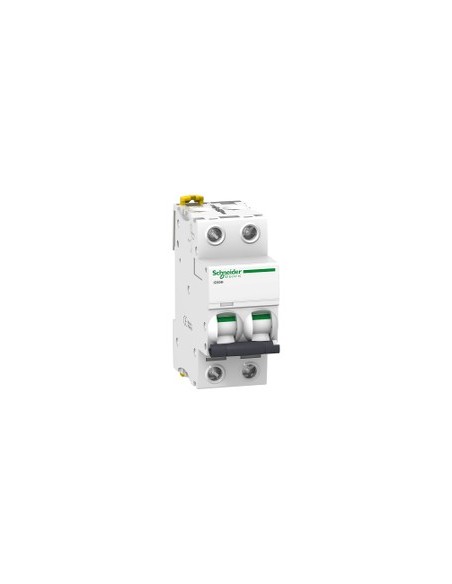

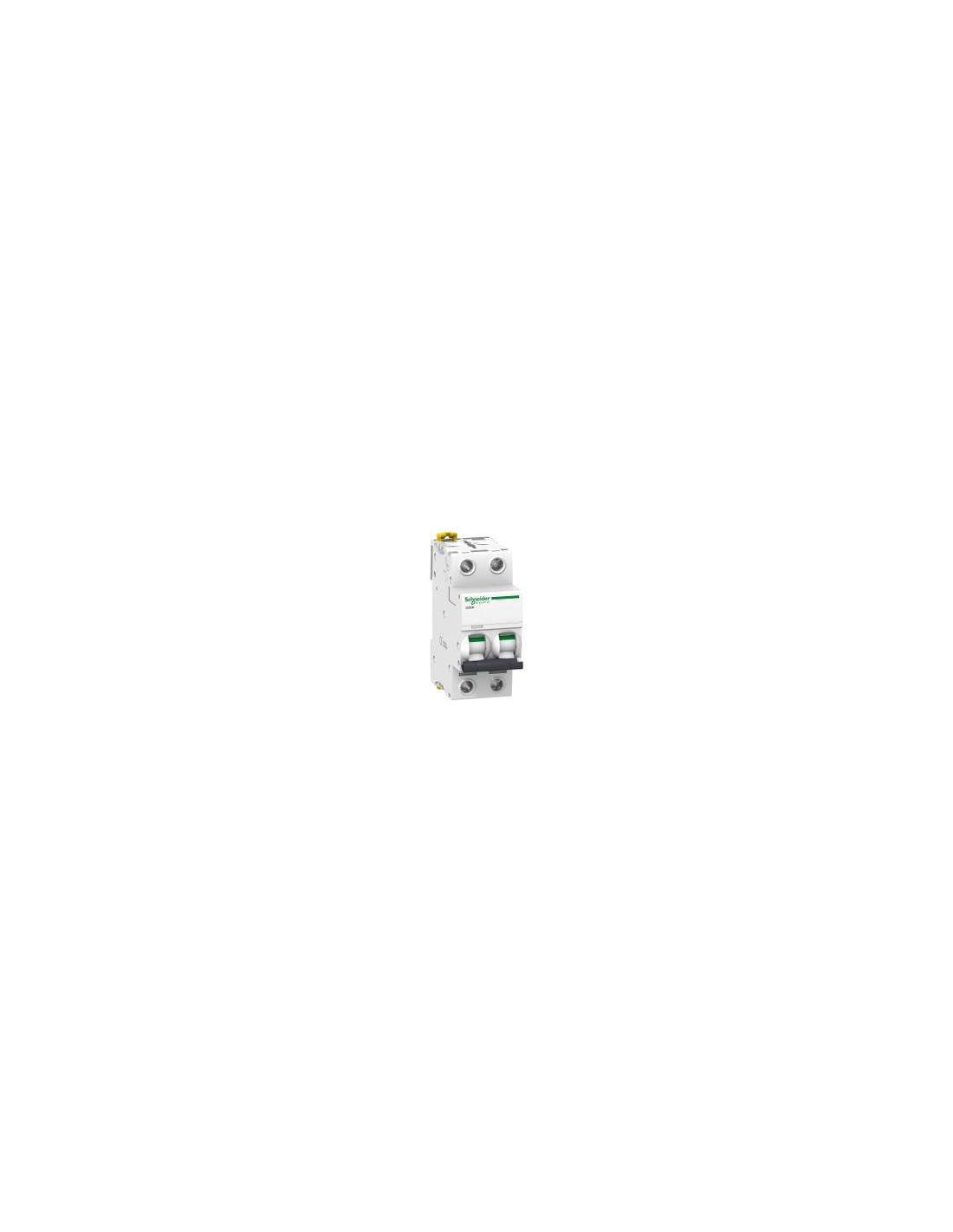

Magnetic thermal switch 2P 6 A curve C Acti9 iC60H

Magnetic thermal automatic switch, 2 poles, nominal current 6 A, curve C, designed to protect electrical circuits in industrial and commercial installations. Its thermal-magnetic technology provides effective protection against overloads and short circuits, especially in circuits with moderate starting loads.

Technical features

• Number of poles: 2P
• Number of protected poles: 2
• Rated current [In]: 6 A
• Network type: AC
• Tripping unit technology: Thermal-magnetic
• Curve code: C
• Breaking capacity code: H
• Breaking capacity: 10,000 A Icn at 400 V AC 50/60 Hz according to EN/IEC 60898-1
• Service breaking capacity [Ics]: 15 kA 50% according to HB1 - 220...240 V AC 50/60 Hz
• Limitation class: 3 according to EN 60898-1
• Rated operating voltage [Ue]: 220...240 V AC 50/60 Hz, 400 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, 12...133 V AC 50/60 Hz, 72...125 V DC
• Rated insulation voltage [Ui]: 500 V AC 50/60 Hz
• Surge voltage withstand: 6 kV
• Magnetic trip threshold: 8 x In +/- 20%
• Contact position indicator: Yes
• Local indications: Trip indicator
• Control type: Handle
• Mounting type: Fixed
• Mounting support: DIN rail
• Compatibility with distribution block and busbar comb type: Top or bottom, state 1 YES
• 9 mm steps: 4
• Height: 85 mm
• Width: 36 mm
• Depth: 78.5 mm
• Product weight: 0.25 kg
• Color: White
• Mechanical durability: 20,000 cycles
• Electrical durability: 10,000 cycles
• Connections - terminals: Single terminal - cable type: top or bottom) 1…25 mm² rigid, 1…16 mm² flexible
• Stripping length for terminal connection: 14 mm for top or bottom connection
• Tightening torque: 2 N·m top or bottom
• Earth leakage protection: Independent block
• Protection degree IP: IP20 according to EN 60529
• Contamination degree: 3
• Overvoltage category: IV
• Tropicalization: 2 according to IEC 60068-1
• Relative humidity: 95% at 55 °C
• Maximum operating altitude: 0...2000 m
• Operating ambient temperature: -35…70 °C
• Storage ambient temperature: -40…85 °C
• Standards: HB1, IEC 60898-1, EN 60898-1, En> 50 A
• Quality labels: NF
• Usage category: Category A according to HB1, Category A according to En> 50 A
• Switching capacity: Yes according to EN 60898-1, HB1, IEC 60898-1, En> 50 A
• Sustainable offering status: Green Premium product
• REACH regulation: Reference does not contain SVHC
• REACH compliant without SVHC: Yes
• EU RoHS directive: Compliant
• Mercury-free: Yes
• RoHS exemption information: Yes
• China RoHS regulation: Product outside the scope of China RoHS. Substance information declaration
• WEEE: In the European Union market, the product must be disposed of according to a specific waste collection system and must never end up in a general waste bin.
• Halogen content: Halogen-free product
