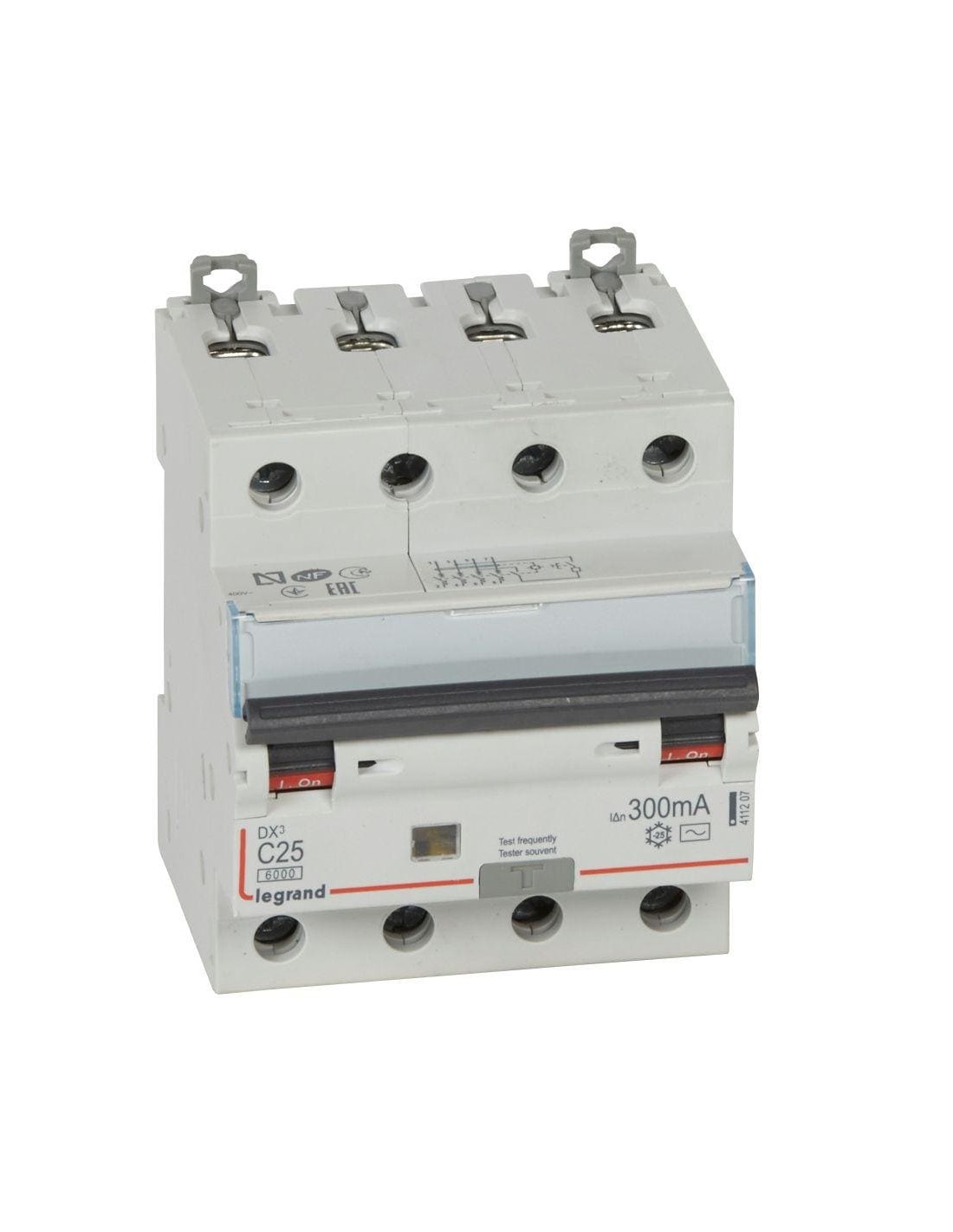

Monobloc 4-pole combined switch with magnetic-thermal and differential protection. Rated current of 25 A, C curve, and nominal voltage of 400 V. Tripping sensitivity of 300 mA type AC. Breaking capacity of 6 kA according to EN 61009. Includes simultaneous neutral switching and padlockable locking system.
Description
Monobloc combined switch from the DX³ series that integrates magnetic-thermal and differential protection in a single device. It is designed to provide safety against overloads, short circuits, and earth leakage in three-phase installations, ensuring supply continuity and the protection of people and connected equipment.
This device allows for a compact installation by occupying only 4 modules, facilitating space management in electrical panels. The inclusion of neutral switching and the padlockable locking option provides greater operational safety and ease of maintenance. Its monobloc design simplifies connection and reduces the number of components required in the panel.
Product Details
| Width | 4 módulos |
|---|---|
| Depth | 44 mm |
| Nominal voltage (V) | 400 V |
|---|---|
| Rated voltage | 400 |
| Current type | AC |
| Rated current (A) | 25 |
| Protection | IP20 |
|---|
| Frequency | 50 |
|---|---|
| Class | AC |
| Sensitivity | 300 mA |
| Curve | C |
| EAN | 3245064112079 |
| Manufacturer | LEGRAND |
| No. of poles | 4P |
| Reference | LEGRAND 411207 |
| Cable cross-section (mm²) | 4 |
