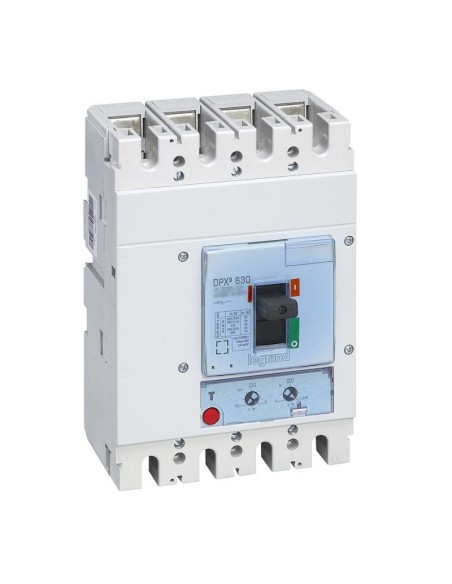

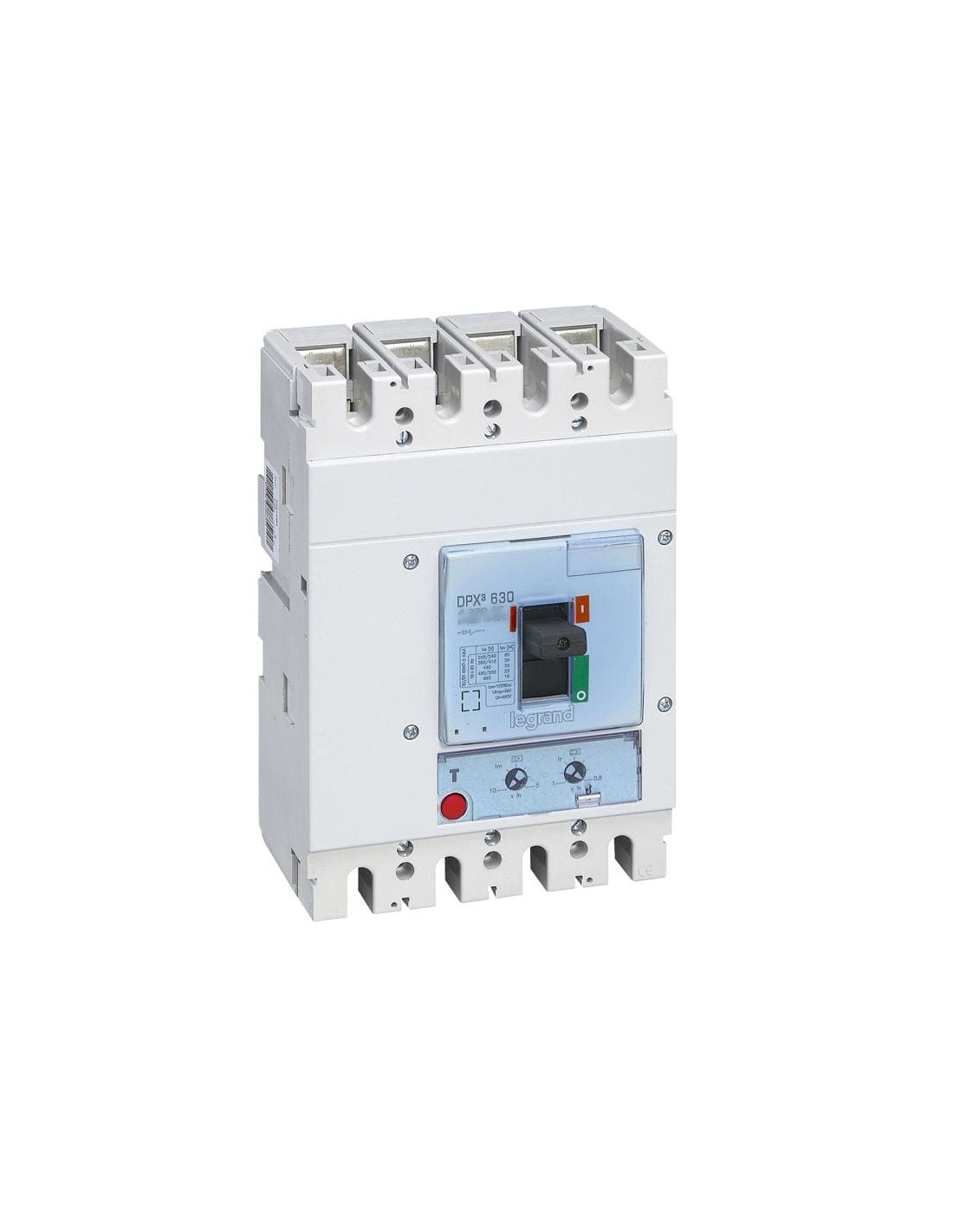

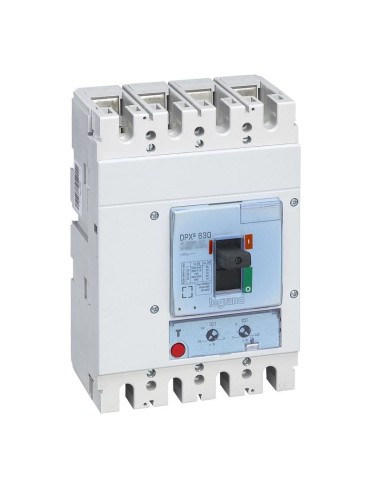

Automatic molded case 4P 630 A 36 kA
Automatic molded case 4P 630 A 36 kA
Automatic molded case 4P 630 A 36 kA
Automatic molded case 4P 630 A 36 kA

Automatic molded case 4P 630 A 36 kA

Out of stock Reference LEGRAND 422009
€2,622.99
VAT included

Notify me when in stock

Drop your email and we'll let you know the moment it's back.

  • Envío gratis Península desde 50€
  • Devoluciones
  • Pago seguro
  • Garantía
  • Protection IP30

4-pole DPX³ molded case circuit breaker with a rated current of 630 A and a breaking capacity of 36 kA at 400 V. Includes adjustable thermal protection between 504 and 630 A, magnetic protection from 3150 to 6300 A, and an integrated undervoltage release.

Description

4-pole magnetothermal molded case circuit breaker with a rated current of 630 A, designed to protect electrical circuits against overloads and short circuits. This device offers a robust and reliable solution for industrial and commercial installations that require a high degree of safety and control in energy management.

Technical features

  • Rated permanent current (Iu): 630 A
  • Rated voltage range: 220...690 V
  • Breaking capacity (Icu) at 400 V, 50 Hz: 36 kA
  • Overload protection range adjustment: 504...630 A
  • Short-circuit release with delay: 3150...6300 A
  • Short-circuit release without delay: 3150...6300 A
  • Number of poles: 4
  • Main circuit connection: Threaded
  • Control element: Handle
  • Protection rating: IP30
  • 2 normally closed auxiliary contacts and 2 changeover contacts
  • Includes undervoltage release and disconnection indicator

The integrated fixed construction ensures a safe and stable installation. The availability of an optional motorized actuator allows for the automation of operations, improving operational efficiency in advanced control systems.

Product Details

Eléctrico

Nominal voltage (V) 400 V
Rated current (A) 630

Protección

Protection IP30

Otras

EAN 3414970378057
Manufacturer LEGRAND
Range Industrial
# Elements 4
No. of poles 4P
Reference LEGRAND 422009

Información legal

Fabricante LEGRAND
Dirección C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email [email protected]
Teléfono +34 916561812
Referencia LEGRAND 422009
EAN 3414970378057

Advertencias de seguridad

No

Downloads

Reviews (0)

No reviews
