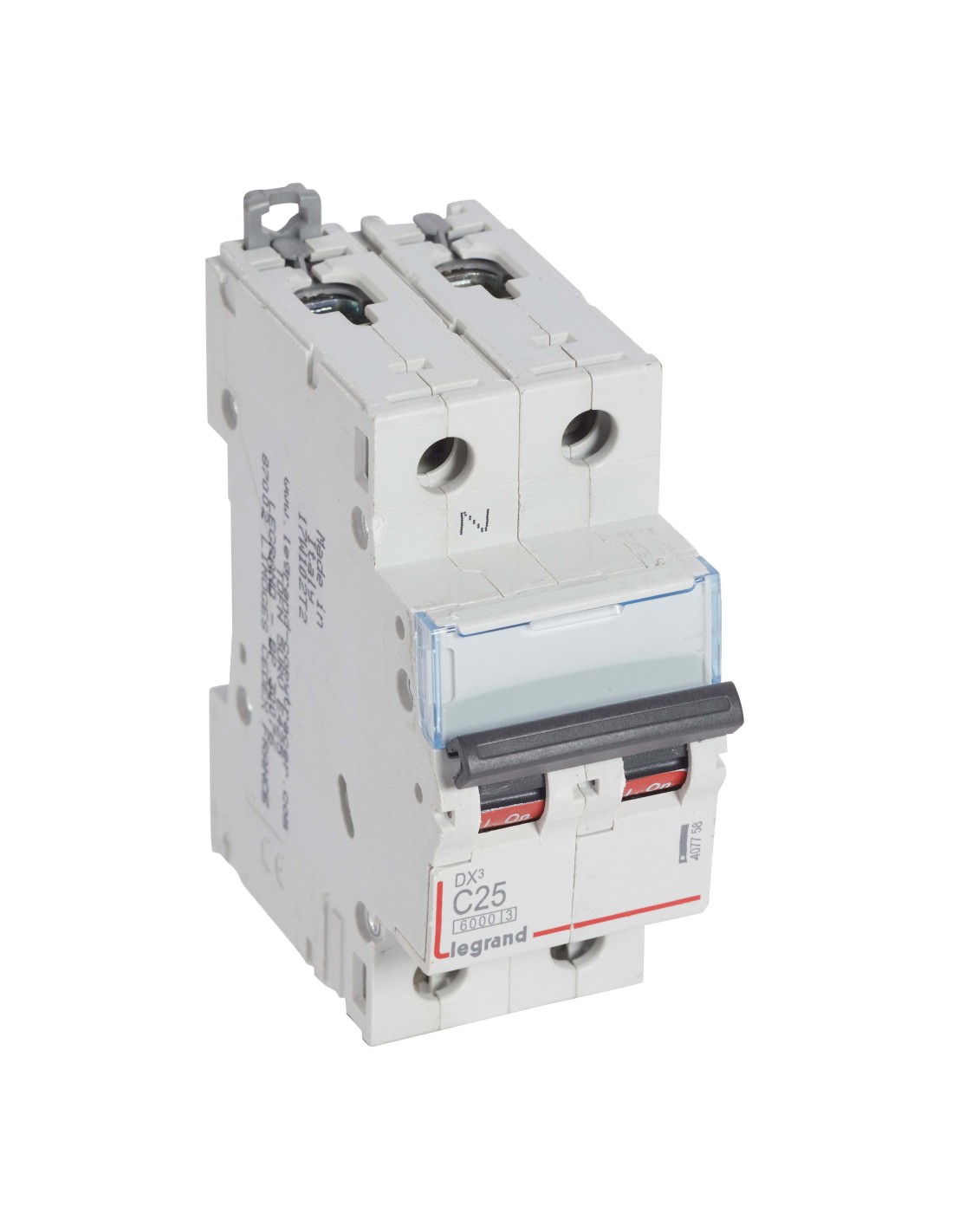

MCB 1P+N 25A C-curve 10kA

MCB 1P+N 25A C-curve 10kA

MCB 1P+N 25A C-curve 10kA

Available In stock 20 Items

Reference LEGRAND 407758

€26.49

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP20

1P+N miniature circuit breaker with a rated current of 25 A and C tripping curve. Protects installations against overloads and short circuits, achieving a breaking capacity of 10 kA according to EN 60947-2. Designed for flush mounting with a depth of 44 mm and a nominal voltage of 230 V AC.

Description

1P+N miniature circuit breaker, designed to protect electrical installations against overloads and short circuits. It also allows for the control and isolation of the line.

Technical features

Rated current: 25 A
Nominal voltage: 230 V AC
Tripping curve: C
Breaking capacity: 6 kA (EN 60898) and 10 kA (EN 60947-2)
Poles: 1+N (2 modules wide)
Construction depth: 44 mm
Protection rating: IP20
Operating temperature: -25...70 °C
Conductor connection: 1.5...25 mm² (flexible) and 1.5...35 mm² (rigid)
Frequency: 50...60 Hz
Current limiting class: 3
Flush mounting: yes
Simultaneous neutral switching: yes

This device offers a fast response to electrical faults thanks to its C curve and high breaking capacity. Its compact 2-module design facilitates integration into standard electrical panels, allowing the connection of conductors with a wide cross-section.

Product Details

Dimensiones

Depth	44 mm

Eléctrico

Nominal voltage (V)	230
Rated voltage	230
Rated current (A)	25

Protección

Protection	IP20

Otras

Curve	C
EAN	3245064077583
Manufacturer	LEGRAND
# Elements	2
No. of poles	1P+N
Reference	LEGRAND 407758

Información legal

Fabricante	LEGRAND
Dirección	C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES
Email	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 407758
EAN	3245064077583

Advertencias de seguridad

No

In stock 20 Items

Downloads

Product sheet Store PDF Download

Reviews (0)

No reviews
