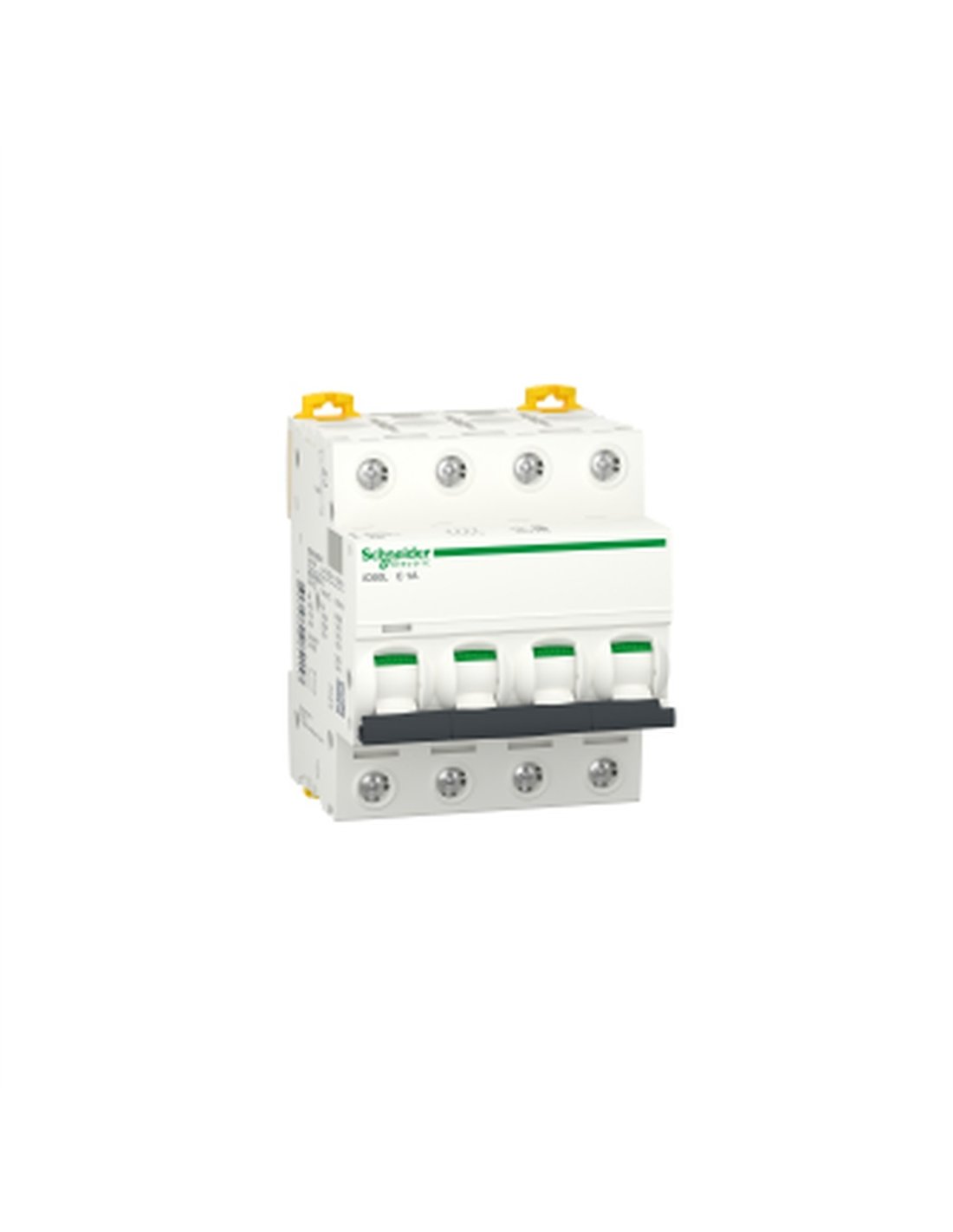

SCHNEIDER ACTI 9 automatic switch 4 poles 1 A 100 kA 220-240 V AC curve C

The Acti 9 iC60 RCBO (IC60L) Miniature Circuit Breaker is a high-quality device designed for current applications above 0.1 A. It belongs to the Acti 9 range, renowned for its reliability and efficiency in protecting electrical circuits. This model has 4 poles, offering comprehensive protection for electrical systems in residential and small commercial environments.

With a rated current of 1 A and thermal-magnetic tripping technology, the IC60L guarantees safe and effective interruption in case of overloads or short circuits. Its breaking capacity reaches up to 15,000 A Icn at 400 V AC and up to 100 kA Icu at various voltages, ensuring a high level of protection in accordance with EN 60898-1 and IEC 60898-1 standards.

This circuit breaker is designed for fixed DIN rail mounting, with a contact position indicator and local trip signaling.

• Number of poles: 4P
• Rated current: 1 A
• Breaking capacity: 15000 A Icn at 400 V AC
• Network type: AC and DC
• Protection rating: IP20
• Operating temperature: -35…70 °C
• Mounting: DIN rail
• Weight: 0.5 kg
• Color: White
• Mechanical durability: 20,000 cycles
