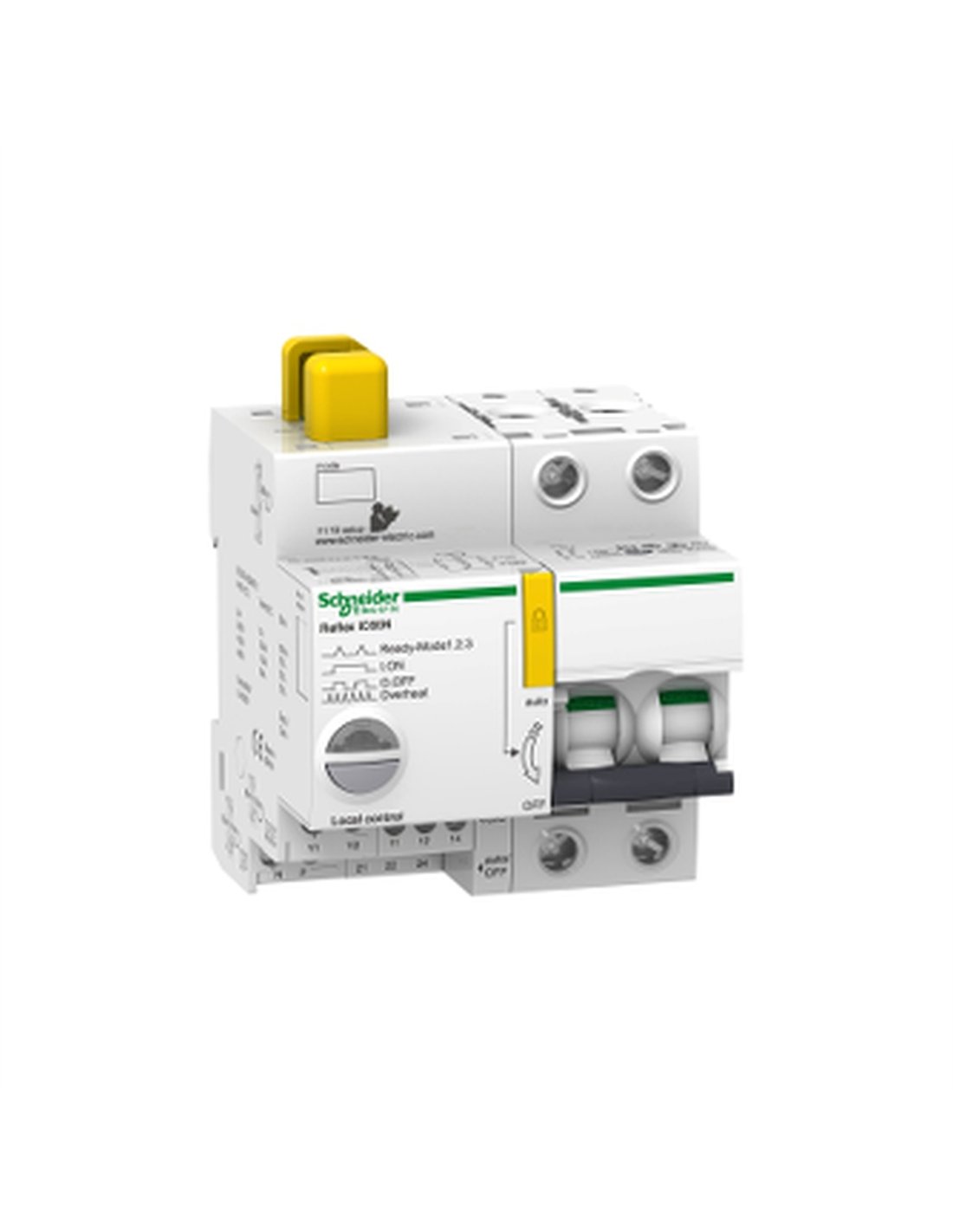

REFLEX iC60 16A 2P thermal-magnetic automatic switch, IP20, 500V AC

The REFLEX iC60N TI24 16A 2P C is an integrated control circuit breaker from the Acti 9 range, designed to offer efficient and safe control in electrical applications. This device, with a 2P pole configuration, is ideal for currents above 0.1 A, ensuring optimal performance in alternating current (AC) networks.

With a rated current of 16 A and a breaking capacity of 20 kA Icu at 220–240 V AC, the REFLEX iC60 is a robust solution for the protection of electrical circuits. Its thermal-magnetic trip unit technology and C-curve rating ensure a fast response to overloads and short circuits.

This device features continuous remote control, as well as an ON/OFF button, allowing for simple and efficient operation.

• Rated current: 16 A
• Rated insulation voltage: 500 V AC
• Breaking capacity: 20 kA Icu at 220...240 V AC
• Mounting type: Fixed on 35 mm DIN rail
• Protection rating: IP20
• Mechanical durability: 50,000 cycles
• Earth leakage protection: Independent block
• Compatibility: With PLC
• Color: White
• Dimensions: 84 mm (height) x 81 mm (width) x 77 mm (depth)

The REFLEX iC60N TI24 is a reliable choice for those They seek effective and safe control over their electrical installations.
