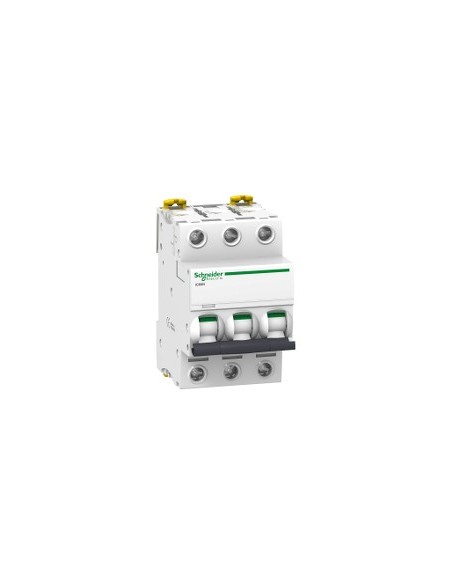

Acti9 iC60N 3P 16 A C Curve Magnetic Thermal Switch

Three-phase magnetic thermal switch (3P) with a rated current of 16 A and C curve, designed to protect electrical circuits using thermal-magnetic technology. Suitable for industrial and commercial installations, with a breaking capacity Icn of 6000 A at 400 V AC, service category A, and protection degree IP20. Compatible with DIN rail mounting, operable at voltages of 220–240 V AC and 125–180 V DC.

Technical specifications

• Number of poles: 3P
• Number of protected poles: 3
• Rated current [In]: 16 A
• Network type: AC, DC
• Tripping unit technology: Thermal-magnetic
• Curve code: C
• Breaking capacity: 6000 A Icn at 400 V AC 50/60 Hz
• Service breaking capacity [Ics]: 6000 A 100% according to EN 60898-1 - 400 V AC 50/60 Hz
• Rated operating voltage [Ue]: 220...240 V AC 50/60 Hz, 400 V AC 50/60 Hz, 380...415 V AC 50/60 Hz, 440 V AC 50/60 Hz, 12...133 V AC 50/60 Hz, 125...180 V DC
• Rated insulation voltage [Ui]: 500 V AC 50/60 Hz
• Surge voltage withstand [Uimp]: 6 kV
• Limitation class: 3
• Service category: Category A according to HB1 and EN > 50 A
• Switching capability: Yes
• Contact position indicator: Yes
• Local indicators: Trip indicator
• Mounting support: DIN rail
• Connections: Single terminal - 1…25 mm² rigid, 1…16 mm² flexible
• Stripping length: 14 mm
• Tightening torque: 2 N·m
• Protection degree: IP20
• Contamination degree: 3
• Overvoltage category: IV
• Tropicalization: 2 according to IEC 60068-1
• Relative humidity: 95% at 55 °C
• Maximum operating altitude: 0...2000 m
• Operating ambient temperature: -35…70 °C
• Storage ambient temperature: -40…85 °C
• Mechanical durability: 20,000 cycles
• Electrical durability: 10,000 cycles
• Color: White
• Weight: 0.375 kg
• Standards: IEC 60898-1, EN 60898-1, HB1
• Quality labels: NF
• Earth leakage protection: Independent block
• Sustainable offering status: Green Premium product
• Compliant with REACh without SVHC: Yes
• EU RoHS directive: Compliant
• Mercury-free: Yes
• Halogen content: Halogen-free product
• Waste electrical and electronic equipment (WEEE): Must be disposed of according to specific system in the EU
