Hub Modbus serie BSCM 3 dispositivos

Hub Modbus serie BSCM 3 dispositivos

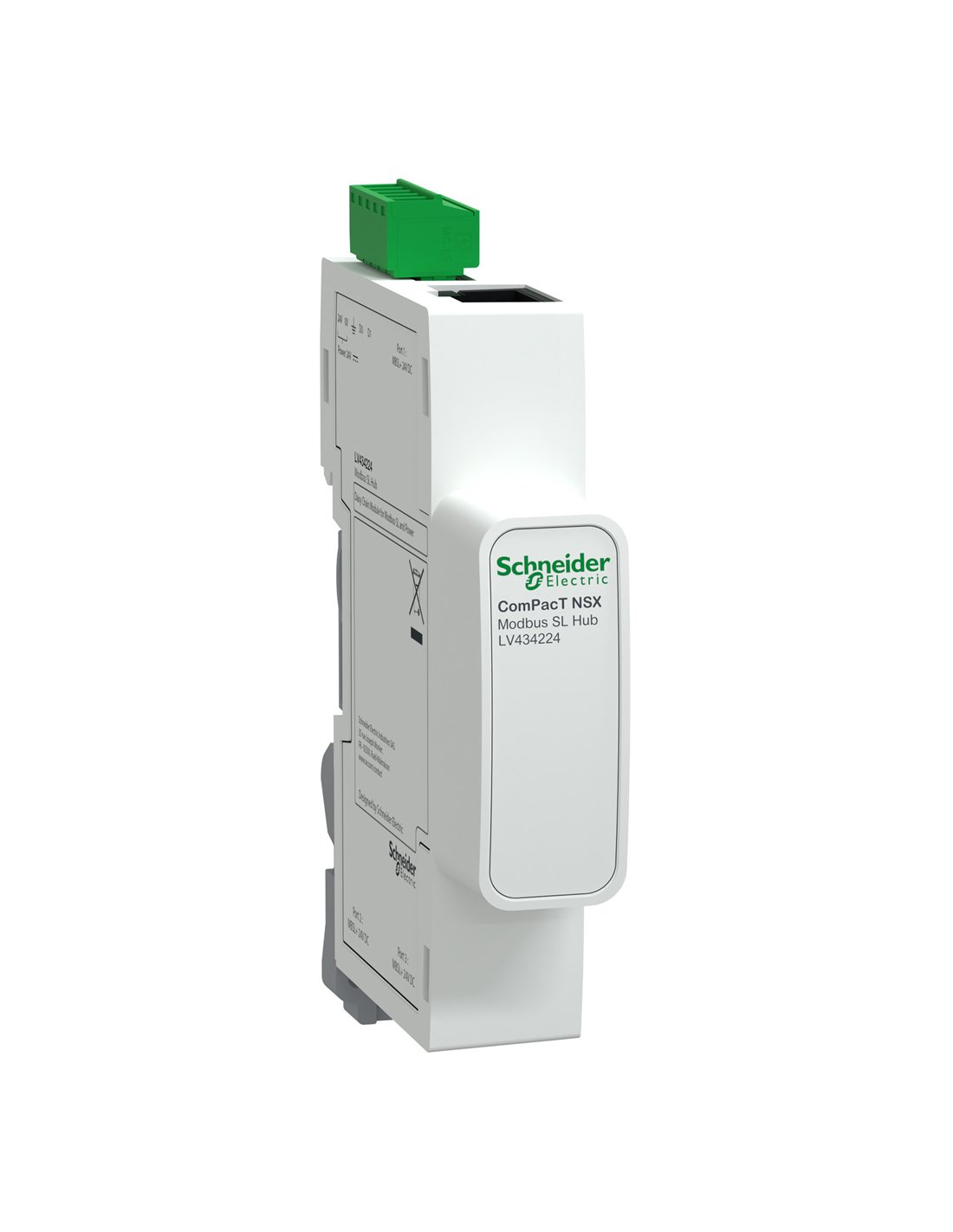

COMPACT NSX interface module, Modbus hub, 24 V DC, 35 mm DIN rail mounting

Reference IMPO LV434224

Last items in stock

€147.41

VAT included

The Compact NSX interface module, Modbus SL HUB, enables daisy-chain communication for Modbus SL devices. Designed for integration with the Compact NSX range, it offers easy DIN rail mounting and operates over a wide temperature range, ensuring reliability in diverse environmental conditions.

In stock 1 Item

Email address

Description

The Compact NSX Interface Module, Modbus SL HUB, is a concentrator designed to facilitate daisy-chain communication between Modbus SL devices. This device is part of the new generation of ComPacT NSX products, offering an efficient and reliable solution for electrical system integration.

Product range: ComPacT NSX400...630
Device abbreviation: Modbus SL HUB
Product type: Modbus concentrator
Function: Daisy-chain communication for Modbus devices
Compatibility: ComPacT NSX100, NSX160, NSX250, NSX400, NSX630
Communication network type: Modbus, serial line slave (9.6...38.4 kbauds)
Mounting method: By clips on 35 mm DIN rail
Nominal supply voltage: 24 V DC
Current consumption: 2 mA at 24 V DC
Connections: RJ45 connector
Certifications: UL
Dimensions: 102 mm (height) x 71 mm (width) x 18 mm (depth)
Weight: 57.6 g
Operating temperature range: -25…55 °C
Relative humidity: 5…85% at 55 °C non-condensing

Product Details

EAN	3606487034896
Reference	IMPO LV434224

In stock 1 Item

Reviews (0)

No reviews

GPSR

Fabricante	Schneider Electric España, S.A.
Dirección postal	Calle Bac de Roda, 52 - Edificio A, 08019 Barcelona
Contacto electrónico	[email protected]
Teléfono	+34 930289900
Referencia	IMPO LV434224
EAN	3606487034896
