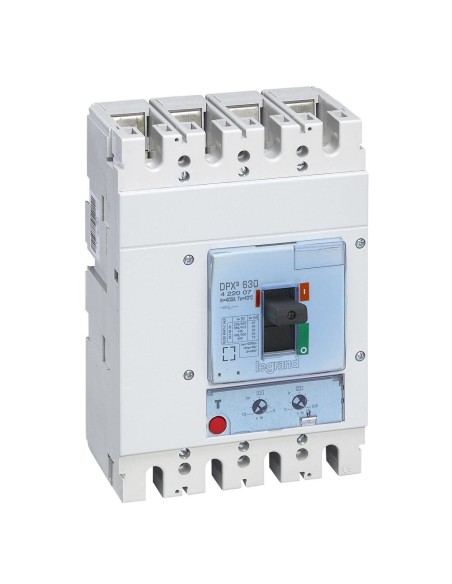

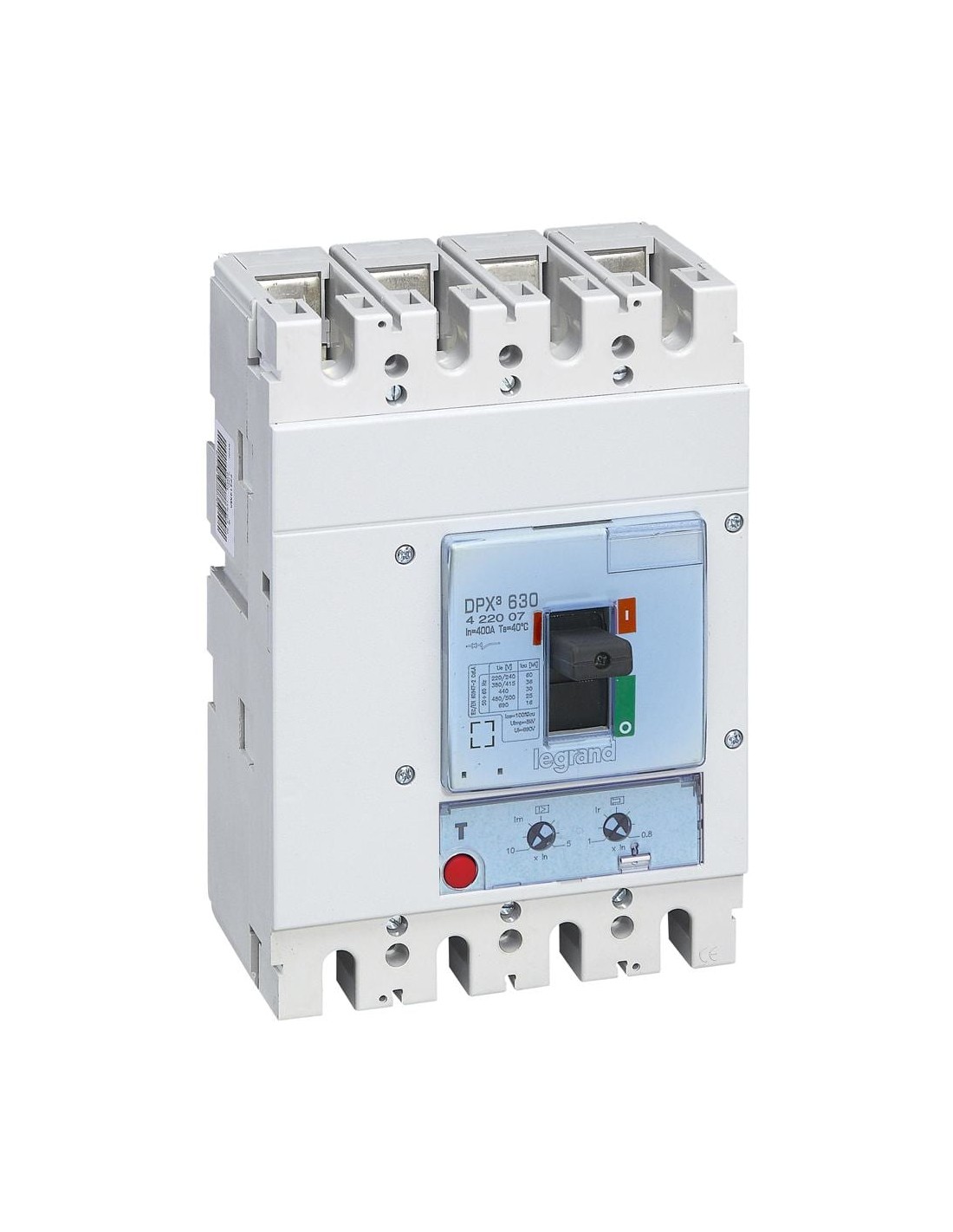

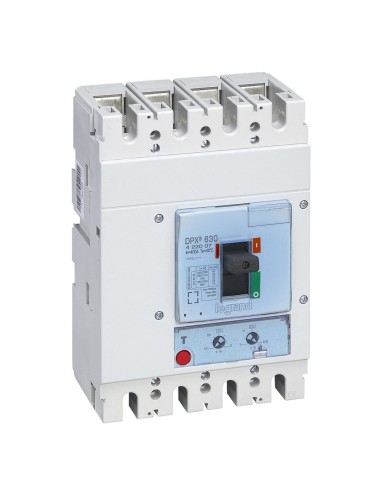

DPX³ 630 molded case circuit breaker, 4-pole, with a rated current of 400 A. Protects against overloads and short circuits with a breaking capacity of 36 kA at 400 V. Includes thermal adjustment between 320 and 400 A, magnetic release from 2000 to 4000 A, and two normally closed auxiliary contacts for status indication.
Description
DPX³ 630 4-pole thermomagnetic molded case circuit breaker, designed for the protection of electrical circuits against overloads and short circuits. This device offers a robust and adjustable solution for industrial and commercial installations that require precise management of the rated current and high breaking capacity.
The ability to adjust protection thresholds allows the breaker to be adapted to the specific needs of the connected load. The inclusion of auxiliary contacts and undervoltage release facilitates integration into more complex control and safety systems. Its fixed design ensures a stable and safe installation in electrical panels.
Product Details
| Nominal voltage (V) | 400 |
|---|---|
| Rated current (A) | 400 |
| Protection | IP30 |
|---|
| Frequency | 50 |
|---|---|
| EAN | 3414970378033 |
| Manufacturer | LEGRAND |
| Range | Industrial |
| Reference | LEGRAND 422007 |
Información legal
| Fabricante | LEGRAND |
|---|---|
| Dirección | C/ Hierro 56 –, 28850 Torrejón de Ardoz (Madrid), ES |
| [email protected] | |
| Teléfono | +34 916561812 |
| Referencia | LEGRAND 422007 |
| EAN | 3414970378033 |
