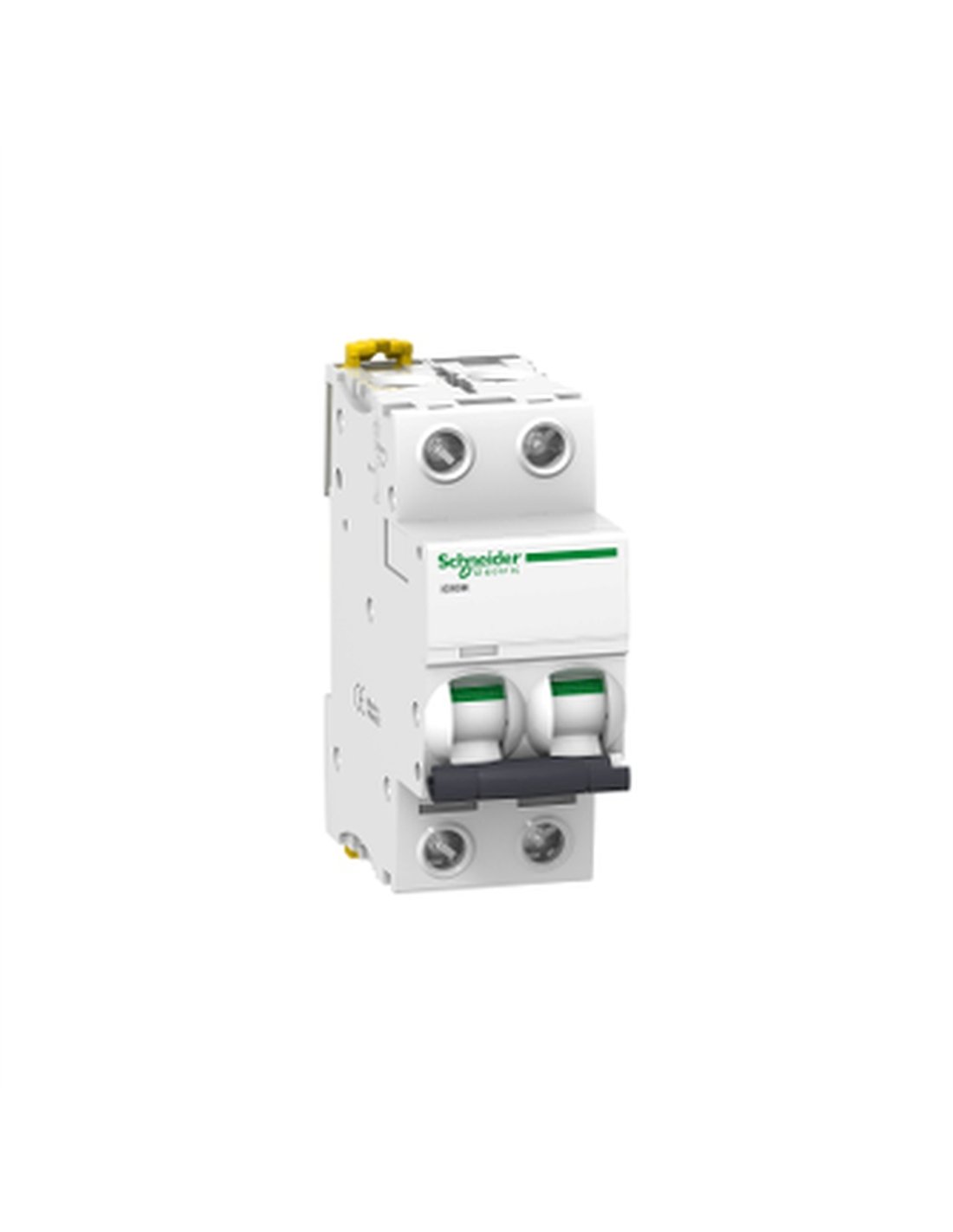

SCHNEIDER ACTI 9 2P 0.5A C 70kA 400V AC 50/60Hz IP20 automatic switch

The Acti 9 iC60 RCBO is a high-quality miniature circuit breaker designed for applications requiring a current above 0.1 A. It belongs to the Acti 9 range and is ideal for protecting electrical circuits in small businesses. This device features a robust and efficient design, ensuring the protection of electrical equipment against overloads and short circuits.

With a 2P number of poles and a rated current of 0.5 A, the iC60H is suitable for both DC and AC networks. Its trip unit technology is thermal-magnetic, providing a fast response to electrical faults. This model has a breaking capacity of 10,000 A Icn at 400 V AC and up to 70 kA Icu at various voltages, guaranteeing a high level of safety.

• Main frequency: 50/60 Hz
• Nominal operating voltage: 220...240 V AC
• Disconnecting capacity: Yes, according to EN 60898-1
• Electrical durability: 10,000 cycles
• Protection rating: IP20
• Operating ambient temperature: -35…70 °C
• Mounting: Fixed on DIN rail
• Connections: Single terminal, cable type 1…25 mm² rigid
• Height: 85 mm, Width: 36 mm Depth: 78.5 mm
• Weight: 0.25 kg

The Acti 9 iC60 RCBO is a reliable solution for electrical protection in commercial environments, complying with IEC 60898-1 and EN 60898-1 standards.
