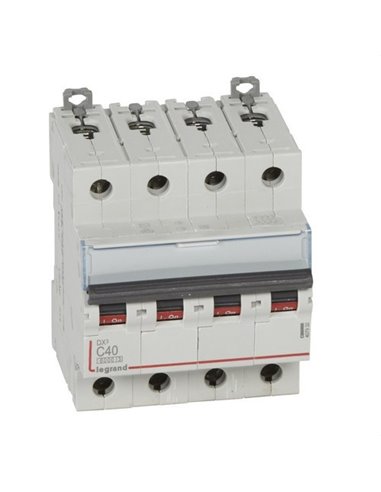

INT.AUT Legrand DX3 4P 40A C 6000A Acc

Circuit breaker DX3 6/10kA-C 4P 40A

INT.AUT Legrand DX3 4P 40A C 6000A Acc

Circuit breaker DX3 6/10kA-C 4P 40A

Circuit breaker DX3 6/10kA-C 4P 40A

1 Reviews

Available In stock 27 Items

Reference LEGRAND 407932

€76.88

VAT included

Email address

Envío gratis Península desde 50€
Devoluciones
Pago seguro
Garantía

Protection IP20

DX3 6/10KA-C 4-pole 40A circuit breaker is a four-pole type circuit breaker with a terminal capacity of 25 mm² flexible/35 mm² rigid, C curve and 6000A breaking capacity.

Technical characteristics:

Type: DX3 6/10KA-C 4-pole circuit breaker
Nominal voltage: 400 V~
Nominal current: 40A
Number of modules: 4
Curve: C
Breaking capacity: 6000A
Admits connection with unipolar and multipolar combs
Complies with UNE EN-60898-1 and IEC 60947-2 regulations
Products with N mark (except 1P+N 2 modules and curve B)
It is They can be equipped with differential blocks, motorized controls and DX³ control and signaling auxiliaries
Incorporated label holder.

Product Details

Dimensiones

High	77,8
Width	70,8
Weight (kg)	0

Eléctrico

Nominal voltage (V)	380V
Rated current (A)	40

Protección

Protection	IP20

Otras

Curve	C
EAN	3245064079327
Manufacturer	Legrand
Intensity	40
# Elements	4
No. of poles	4P
Reference	LEGRAND 407932
