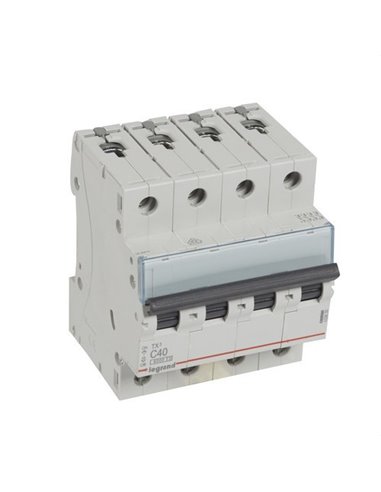

INT.AUT LEGRAND TX3 4P 40A C 6000A ACC

Circuit breaker TX3 6kA-C 4P 40A

INT.AUT LEGRAND TX3 4P 40A C 6000A ACC

Circuit breaker TX3 6kA-C 4P 40A

Circuit breaker TX3 6kA-C 4P 40A

Protection IP20

Reference LEGRAND 403630

Available

€65.87

VAT included

The TX3 6KA-C circuit breaker is an automatic switch that has 4 poles and a nominal intensity of 40A. It is designed to be used in low voltage electrical installations and is compatible with 230V single-phase and 400V three-phase systems.

Technical characteristics:

Type of curve: C
Breaking capacity: 6000A
Connection with terminals protected against direct contact (IP20)
Terminal capacity: 25 mm² flexible/35 mm² rigid
Incorporated label holder
They can be equipped with motorized controls and DX³ control and signaling auxiliaries
Complies with the UNE EN-60898-1 standard

In stock 46 Items

Email address

Product Details

Curve	C
EAN	3245064036306
Manufacturer	LEGRAND
Intensity	40
# Elements	4
No. of poles	4P
Reference	LEGRAND 403630
Protection	IP20
Nominal voltage (V)	380V
High	77,8
Width	70,8
Weight (kg)	0

In stock 46 Items

Reviews (0)

No reviews

GPSR

Fabricante	LEGRAND GROUP ESPAÑA, S.L.
Dirección postal	C
Contacto electrónico	[email protected]
Teléfono	+34 916561812
Referencia	LEGRAND 403630
EAN	3245064036306
